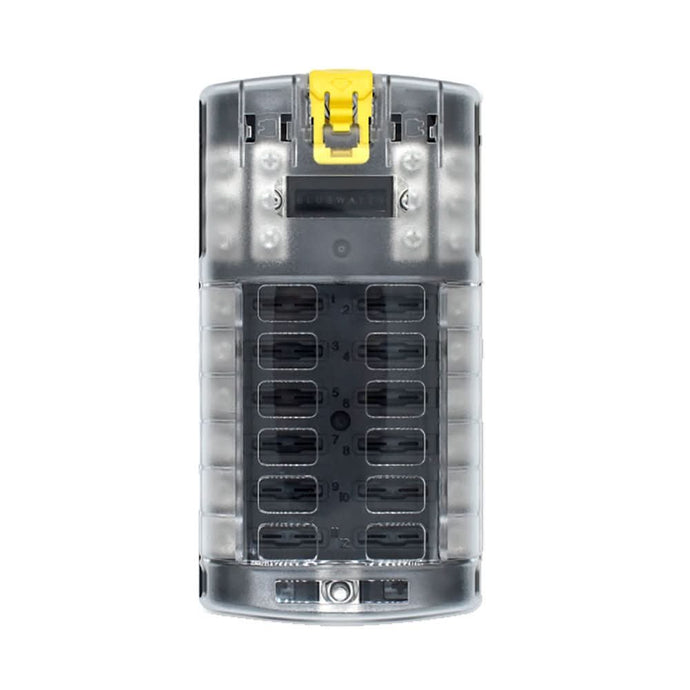

Bluewater 12-Position Fuse Block ATC with Yellow Slide - Marine & RV Power Management - 3200-3003-012

Bluewater 12-Position Fuse Block ATC with Yellow Slide - Marine & RV Power Management

The Bluewater Part Number 3200-3003-012 12-Position Fuse Block ATC is designed to provide a reliable and organized solution for managing multiple low-voltage circuits in marine, RV, and off-grid systems. Constructed with durable materials, including stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this fuse block is built to withstand demanding environments. Its sleek design allows for efficient circuit separation and easy maintenance, making it ideal for complex power layouts in boats and recreational vehicles. This fuse block supports up to 12 independent circuits, each rated for 25A, and is compatible with 88 Series breakers, providing flexible and professional-grade protection for your electrical systems. It is rated for operation at 48V DC and can handle input currents up to 100A, ensuring robust performance in various applications. The main input terminals utilize M5 threaded studs for secure connections, while the output terminals feature M4 studs, facilitating straightforward wiring. Installation is simple with mounting holes spaced for both 6 and 12-position configurations, accommodating different layout needs. Whether you are upgrading an existing system or building a new power distribution setup, this fuse block offers a tidy, serviceable, and dependable solution for your electrical management needs.

Features:

• Supports up to 12 circuits for organized power management

• Rated for 48V DC systems with up to 100A input current

• Compatible with 88 Series and BW 38 Series breakers

• Durable construction with stainless steel hardware and polycarbonate body

• Nickel-plated copper conductors for reliable electrical connections

• Main input terminals utilize M5 threaded studs for secure attachment

• Output terminals feature M4 threaded studs rated for 25A per circuit

• Easy installation with mounting holes designed for both 6 and 12-position configurations

BRAND: Bluewater

Manufacturer Part Number: 3200-3003-012
