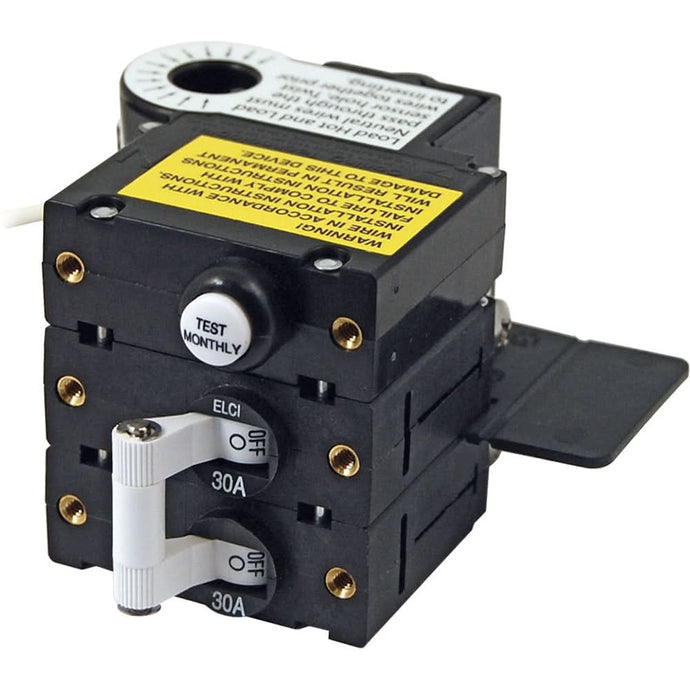

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - 3106100

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - 3106100

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Features:

• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 30A
• Color: White
• Actuator Style: Toggle
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 240VAC/120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 65 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product : BLUE SEA 3106100 ELCI MAIN CURCUIT BREAKER 30A 120V
Manufacturer : Blue Sea Systems
Manufacturer Part No : 3106100
Product : BLUE SEA 3106100 ELCI MAIN CURCUIT BREAKER 30A 120V
