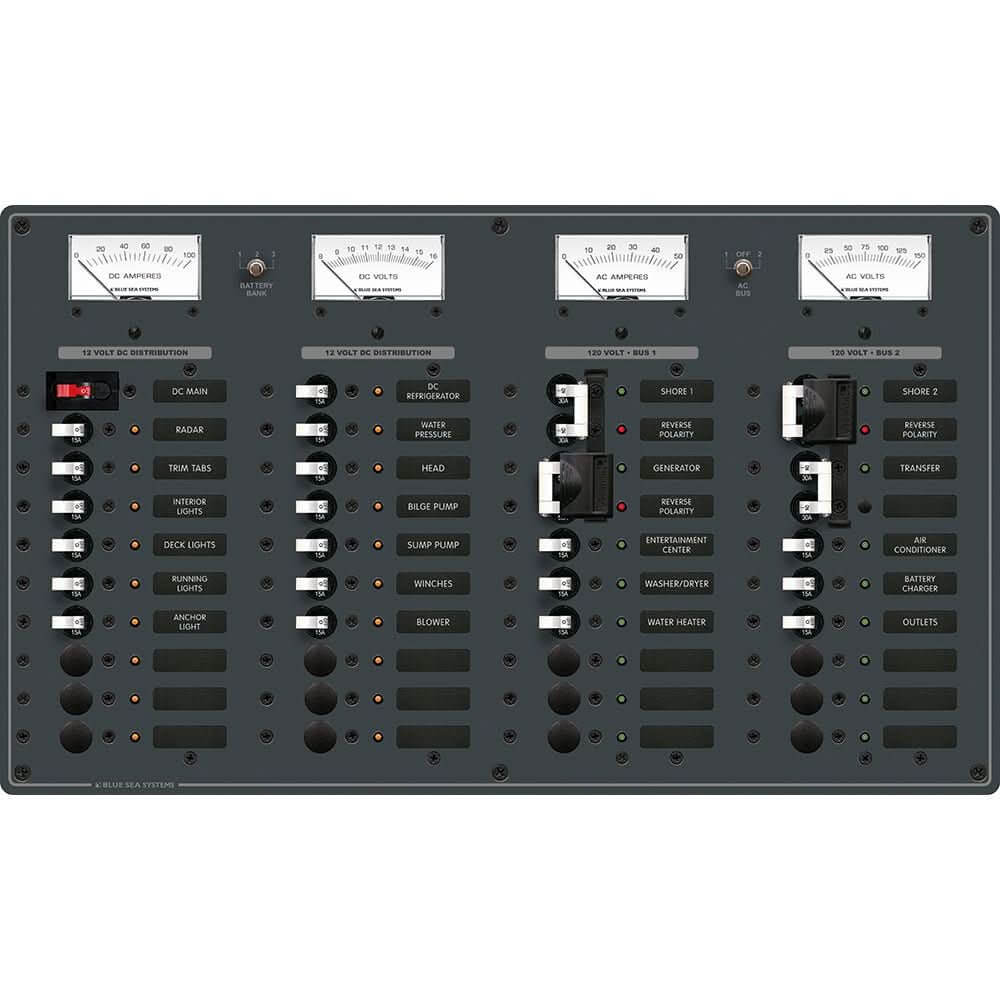

Blue Sea 8086 AC 3 Sources +12 Positions / DC Main +19 Position Toggle Circuit Breaker Panel (White Switches) - 8086

• Includes set of 30 common AC and 30 common DC labels

• All AC and DC buses installed, fully pre-wired

• Label backlighting pre-installed

• All LEDs installed

• Maximum panel Amperage
  • 100 Amperes DC

  • 50 Amperes AC

• Two separate AC load groups with transfer switch to combine into one load group

• Switch allows Ammeter and Voltmeter to read either AC load group

• Reverse polarity indicators on both AC load groups

• Ready for installation of optional 4031 AC Isolation Cover

• 9353, 0-150 Volt AC Voltmeter

• 9630, 0-50 Amp AC Ammeter

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits

• 8003, 8-16 Volt DC Voltmeter

• 8017, 0-100 Amp DC Ammeter

• AC Positions: Source Selectors +12

• DC Positions: Main +19

• 120 Volts AC

• 12 Volts DC

• (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers

• (1) 100A - (13) 15A DC Circuit Breakers
