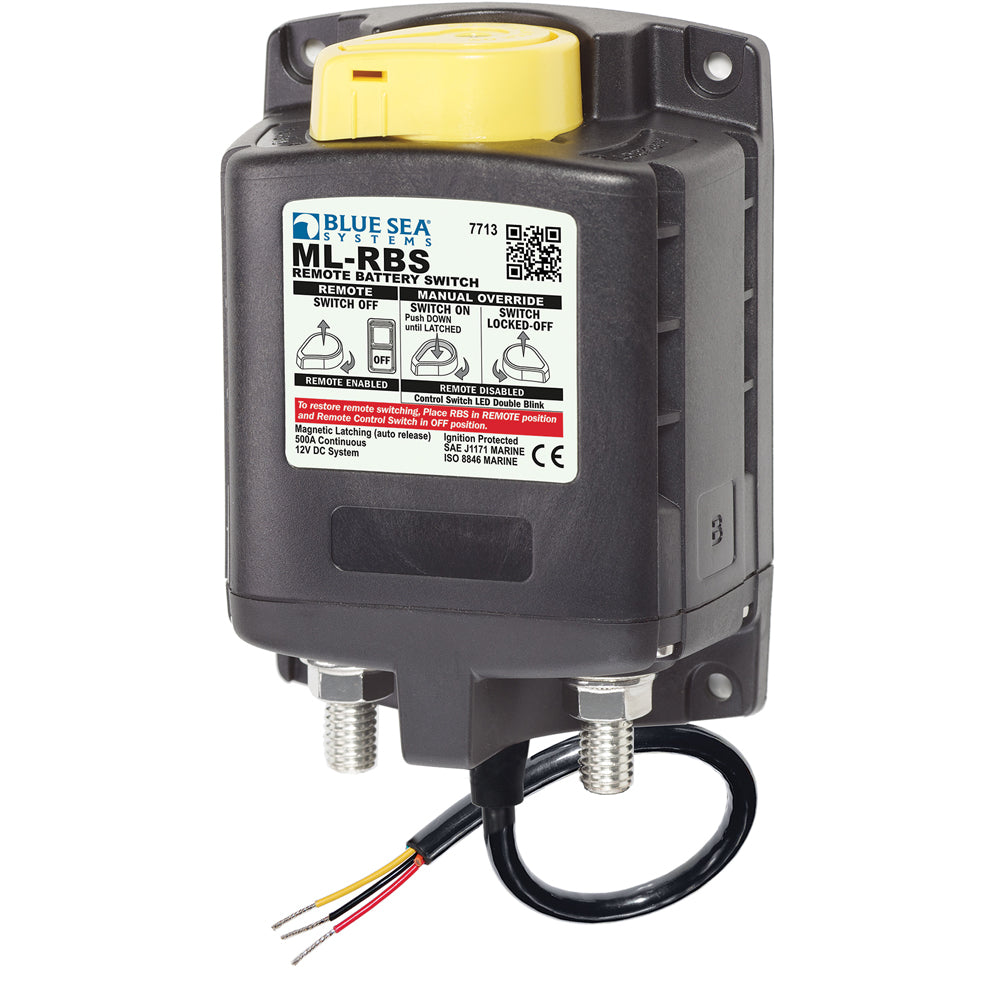

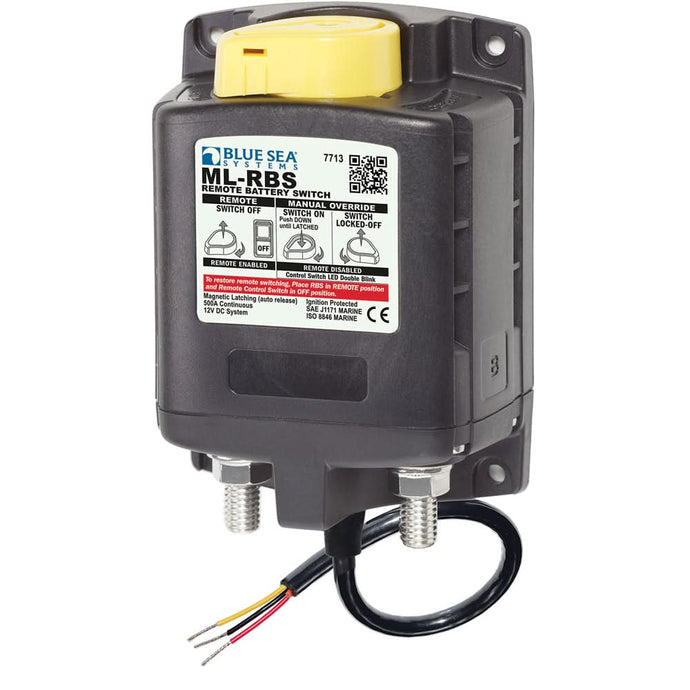

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V - 7713

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

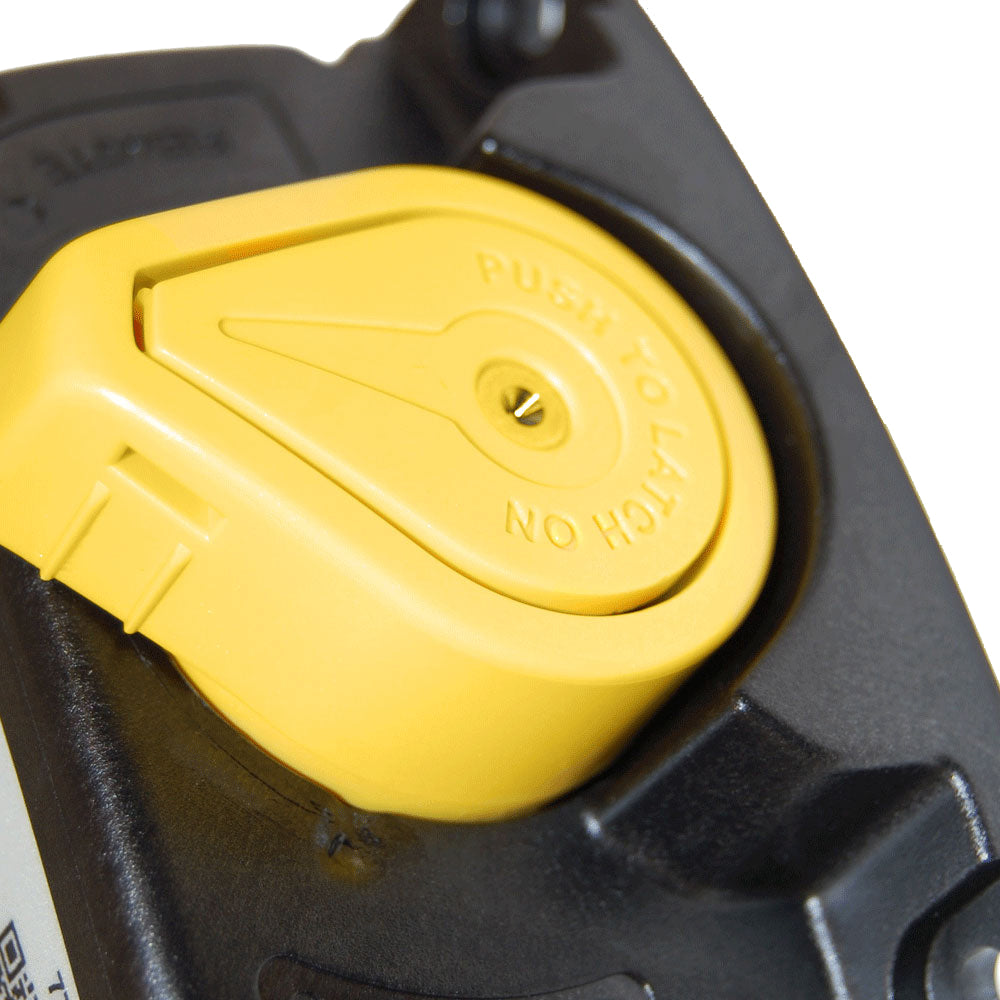

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

• LED output to remotely indicate switch state - requires optional LED

• 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/ 8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Voltage: 10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 50° C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100,000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)
