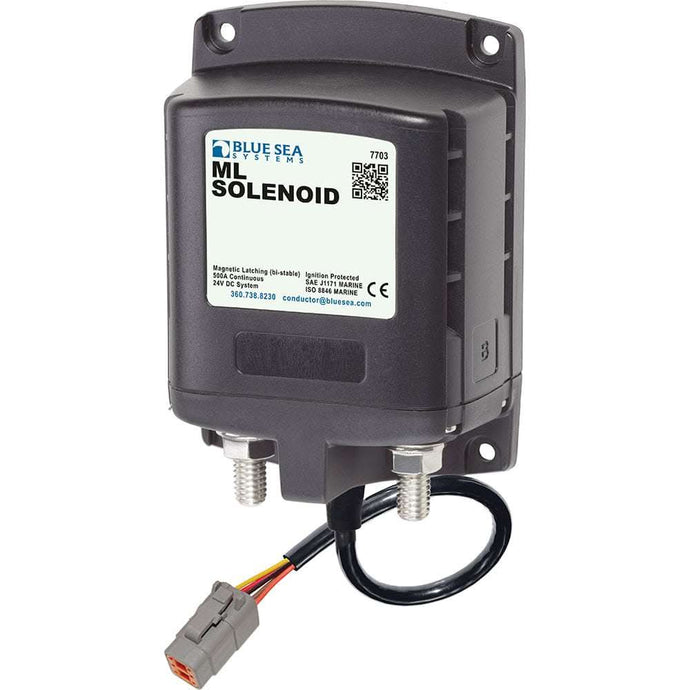

7703100 ML Solenoid 24V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

• 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
• Silver alloy contacts provides high reliability for switching live loads
• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Manual Control: No
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0A
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cable Size to Meet Ratings: 2x (4/0)
• Stud Material: Tinned Copper
• Switching Cycles: 100000
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)
