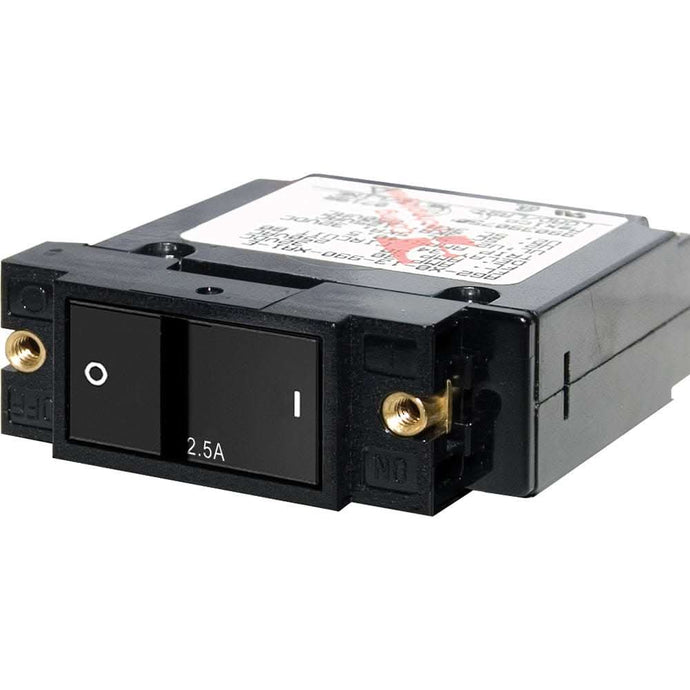

Blue Sea 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A - 7399
$18.99
$32.54
Unit price
/
Unavailable
SKU:
64361
Manufacturer Part #: 7399
Couldn't load pickup availability
A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A
Specifications:
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- 2 different actuator styles available
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
Specifications:
- Amperage: 2.5A DC / 2.5A AC
- Actuator Style: Flat Rocker
- Poles: 1
- Max Voltage:250V AC / 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature:85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.21lb (0.1 kg)
Blue Sea 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A - 7399 is backordered and will ship as soon as it is back in stock.
