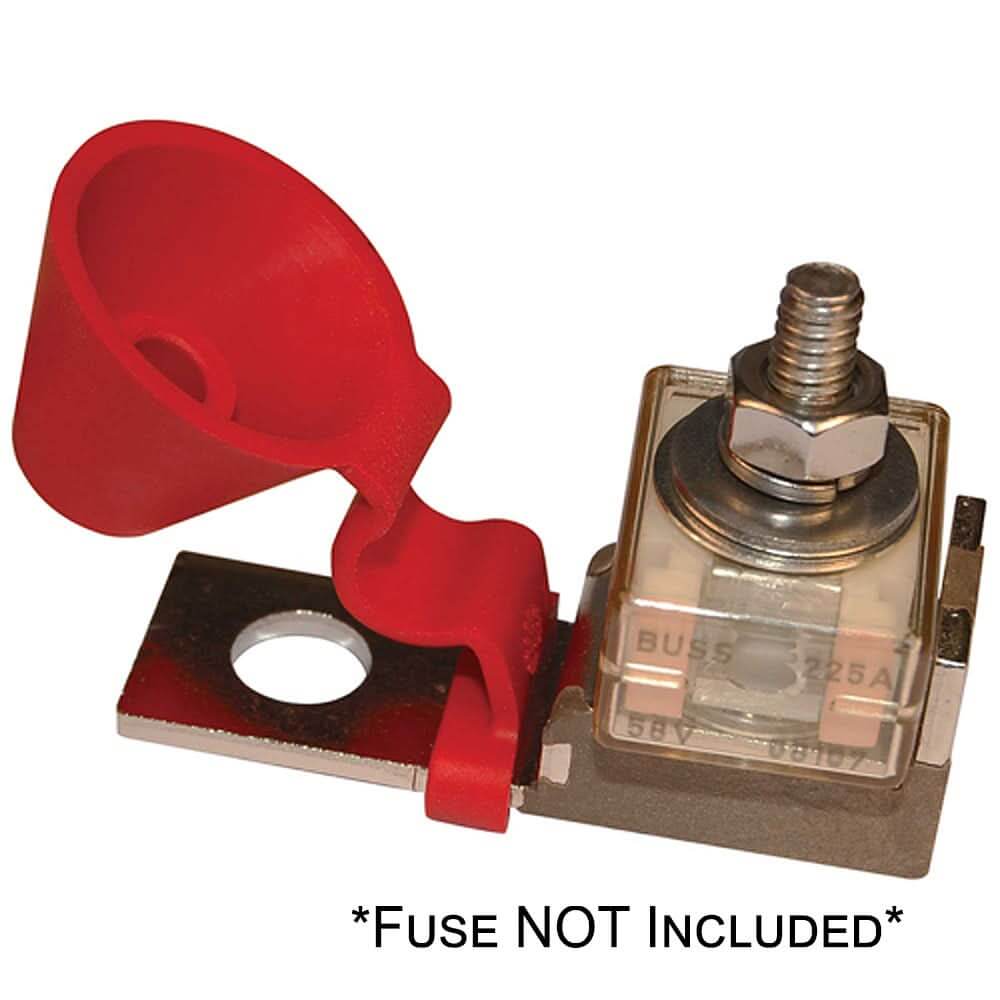

Blue Sea 5191 Terminal Fuse Block 30-300AMP - 5191

Terminal Fuse Black

• New isolated stud design uses standard 5/16" hardware and permits stacking of terminals
• Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Provides high current protection in tight space constraints
• Weatherproof-suitable for small open-cockpit boats and other harsh environments
• Insulating cap prevents accidental shorts
• Use 5/16" or 3/8" ring terminal

Specifications

• Ignition Protected: No
• Maximum Amperage: 300a
• Maximum Voltage: 58v DC
• Terminal Stud: M8 (5/16")
• Maximum Torque: 75 in-lb
