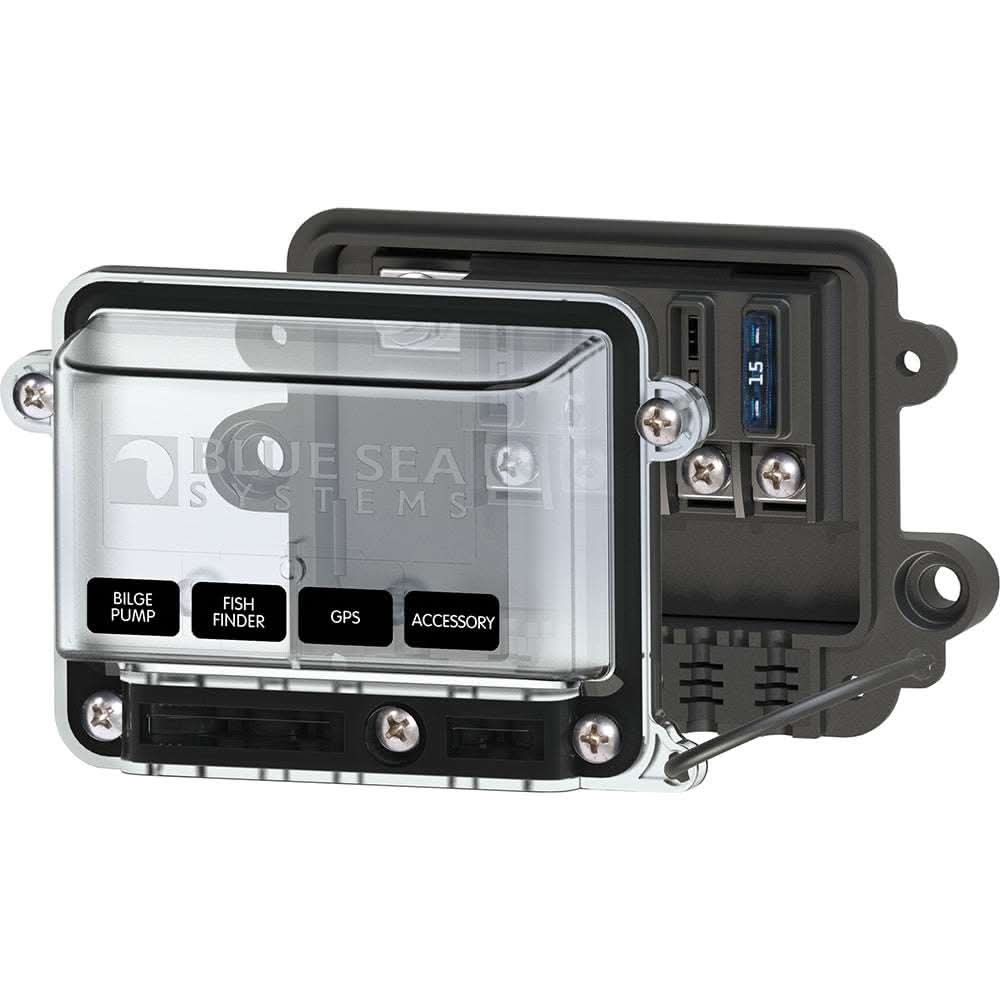

5056 ST-Blade Water Resistant Fuse Block with Cover

Provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.

Features:

• Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
• Accepts ATO and ATC fast-acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available
• Spare fuse and fastener storage in cover

Specifications:

• Amperage: 80A per block/25A per circuit
• Maximum Voltage: 32V DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Clearance for 1/4" (6mm) screws
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product : BLUE SEA 5056 FUSE BLOCK ST BLADE WITH COVER
Manufacturer : Blue Sea Systems
Manufacturer Part No : 5056
