Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover - 5045

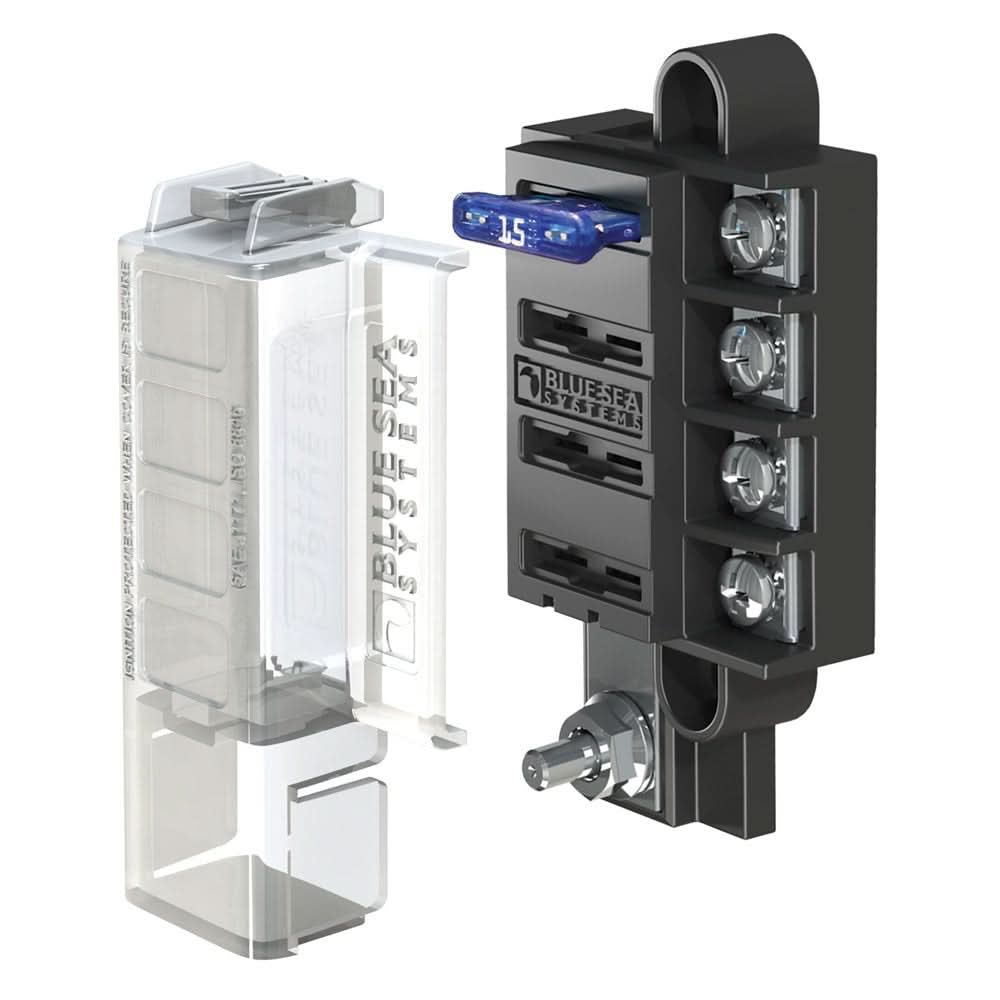

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block

• Accepts ATO® and ATC® fast acting blade fuses

• Single side entry wiring

• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Insulating cover meets ABYC/USCG insulation requirements

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Small format standard and custom labels available

Specifications

• Circuits:4

• Maximum Amperage: 100A per block / 30A per circuit

• Maximum Voltage:32V DC

• Mounting:#8 Screw (M4)

• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 5045
UPC : 632085050450
