Blue Sea 3117 SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main - 3117

$748.99 $1,089.91
SKU: 64686

Manufacturer Part #: 3117

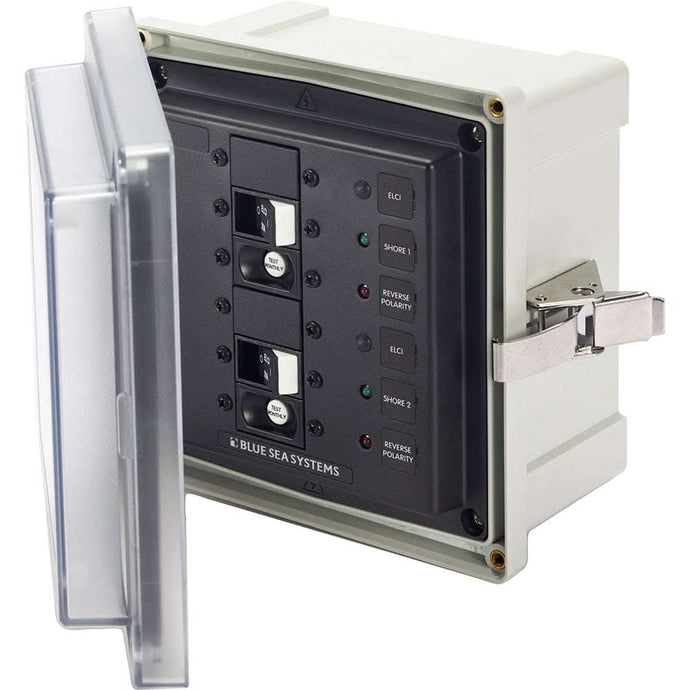

SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

  • Includes one Dual 120V AC / 30A ELCI Main
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Specifications:

  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 85°C
  • Cover Screws & Hardware: 10-32 Stainless Steel
  • Enclosure Size: 6.0" x 6.0" x 4.0"
  • Exterior Overall Dimensions: 7.6" x 7.4" x 4.7"
  • Mounting Hardware: 1/4" Diameter, #12 (6mm)
  • Weight: 6.5lbs
