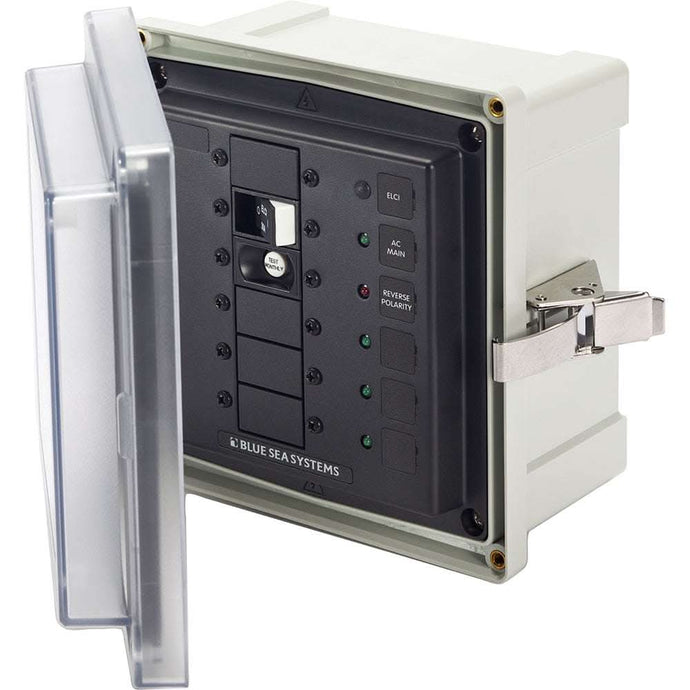

Blue Sea 3116 SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 Blank Circuit Positions - 3116

$338.99 $495.72
SKU: 65548

Manufacturer Part #: 3116


SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 Blank Circuit Positions

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

  • Includes one 120V AC / 30A ELCI Main and three blank positions
  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Specifications:

  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Cover Screws and Hardware: 10-32 Stainless Steel
  • Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
  • Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
  • Mounting Hardware: 1/4" Diameter, #12 (6 mm)
  • Weight: 4.15lb (1.88 kg)

Blue Sea 3116 SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 Blank Circuit Positions - 3116 is backordered and will ship as soon as it is back in stock.
