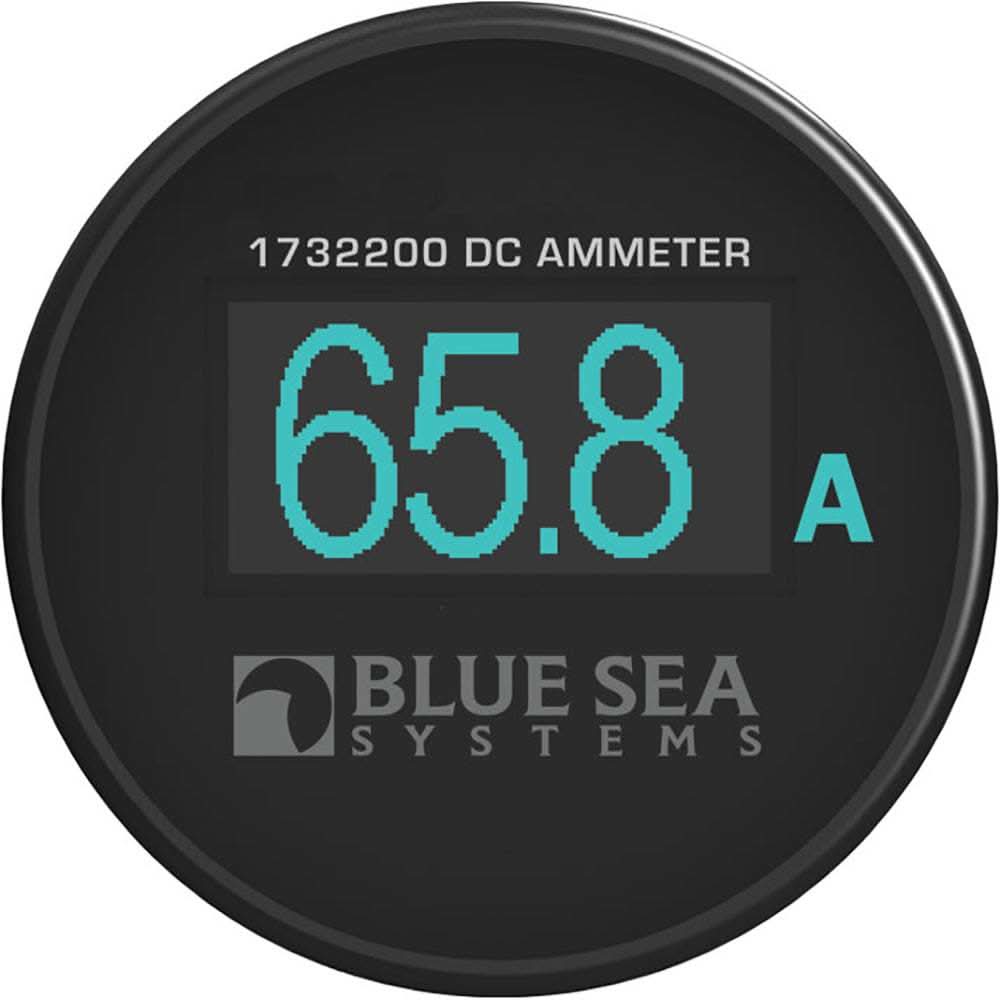

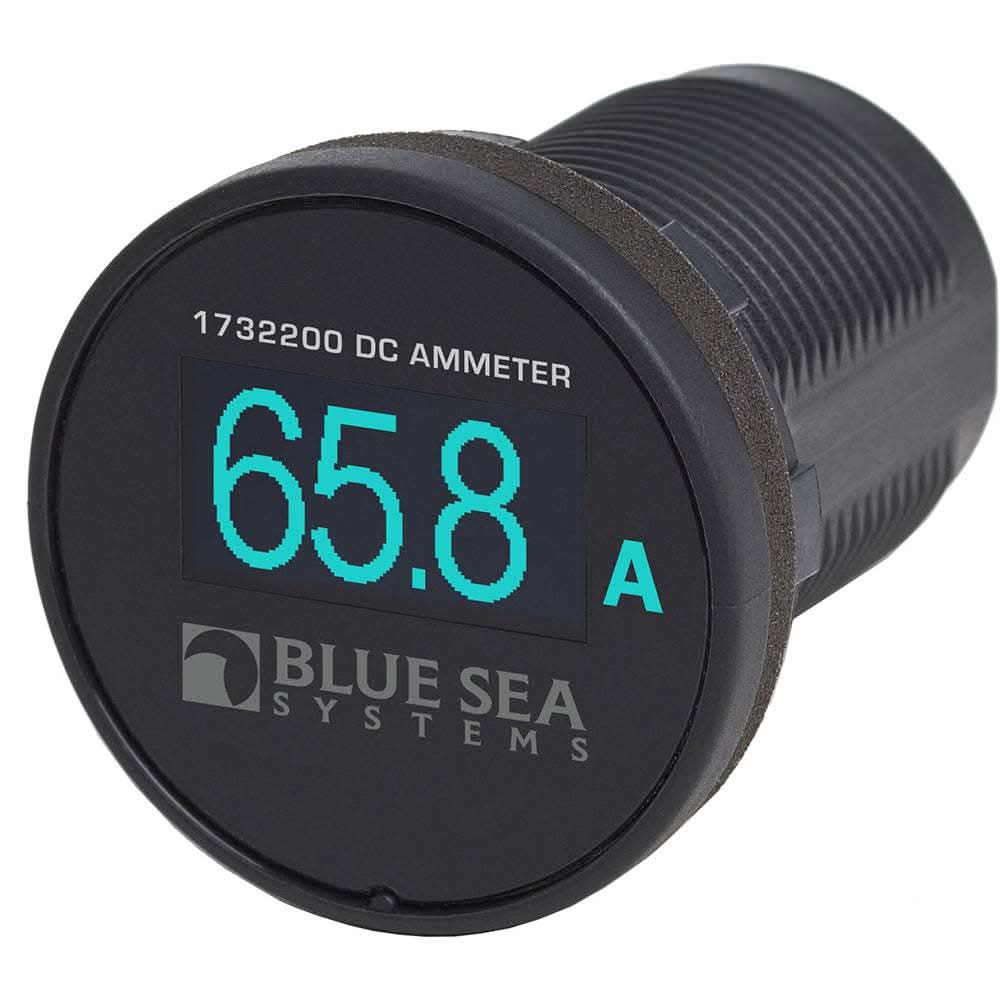

Blue Sea 1732200 Mini OLED Ammeter - Blue - 1732200

Blue Sea 1732200 Mini OLED Ammeter - Blue - 1732200

1732200 Mini OLED Ammeter - Blue

Monitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen.

Features:

• Compact size enables mounting in any convenient location
  • Reverse polarity protected
  • Mounts in a common 1-1/8 in hole
  • Convenient amperage monitoring
  • Monitors -100A to 100A DC
  • Positive or negative side wiring
• Color: Blue
• Meter: Current
• Nominal Voltage: 12V DC/24V DC
• Resolution: 0.1A
• Intermittent Rating: 110A
• Cranking Rating 30 Sec: 175A
• Input Voltage Range: 8V-36V DC
• Operating Current: 15mA
• Switching Cycles: 10,000
• Weight: 0.70lb (0.32 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product : BLUE SEA 1732200 MINI OLED AMP METER BLUE
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1732200
