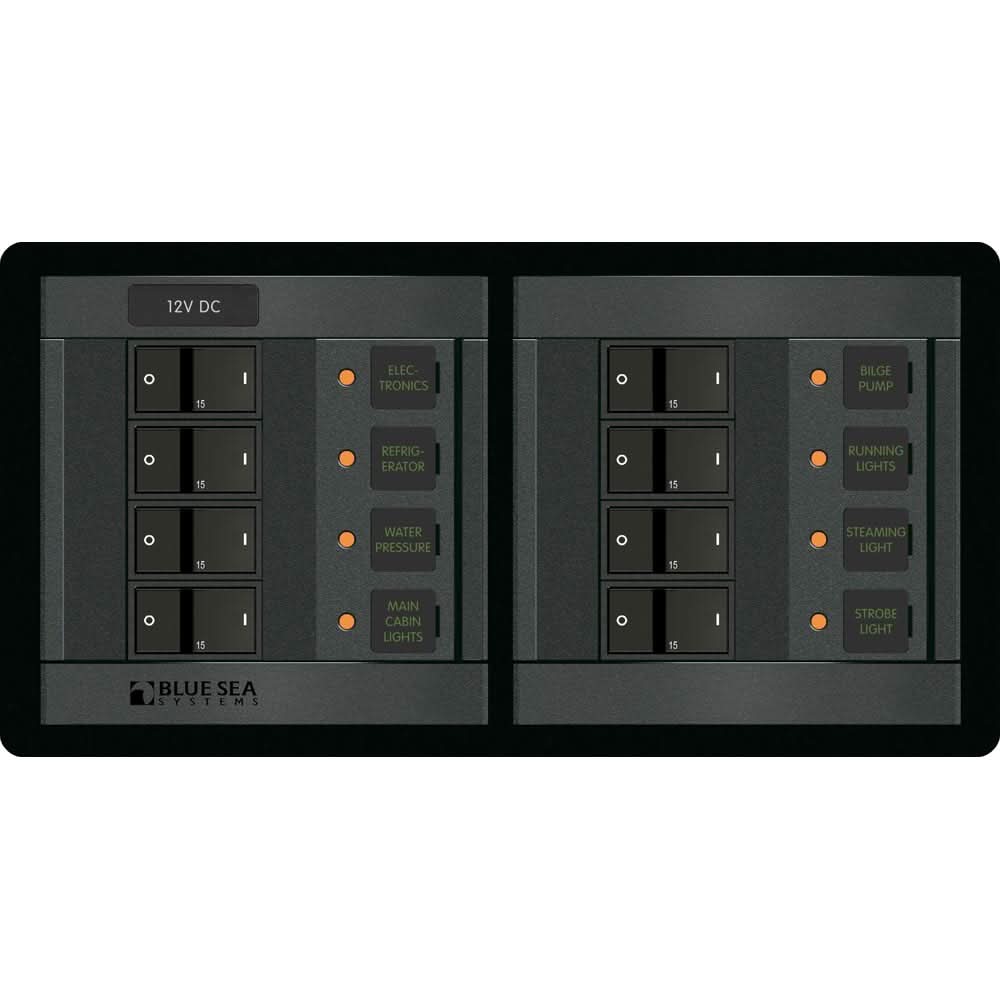

Blue Sea 1225 12V DC 8 Position - Horizontal - 1225

12 Volt DC 8 Position - Horizontal

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions:8

• Nominal Voltage:12V DC

• Maximum Amperage*:100A per bus

• Height:4.75" (120.65mm)

• Width:9.25" (234.95mm)

• Depth:3.00" (76.2mm)

• Weight:3.84lb (1.74kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 1225
UPC : 632085012250
