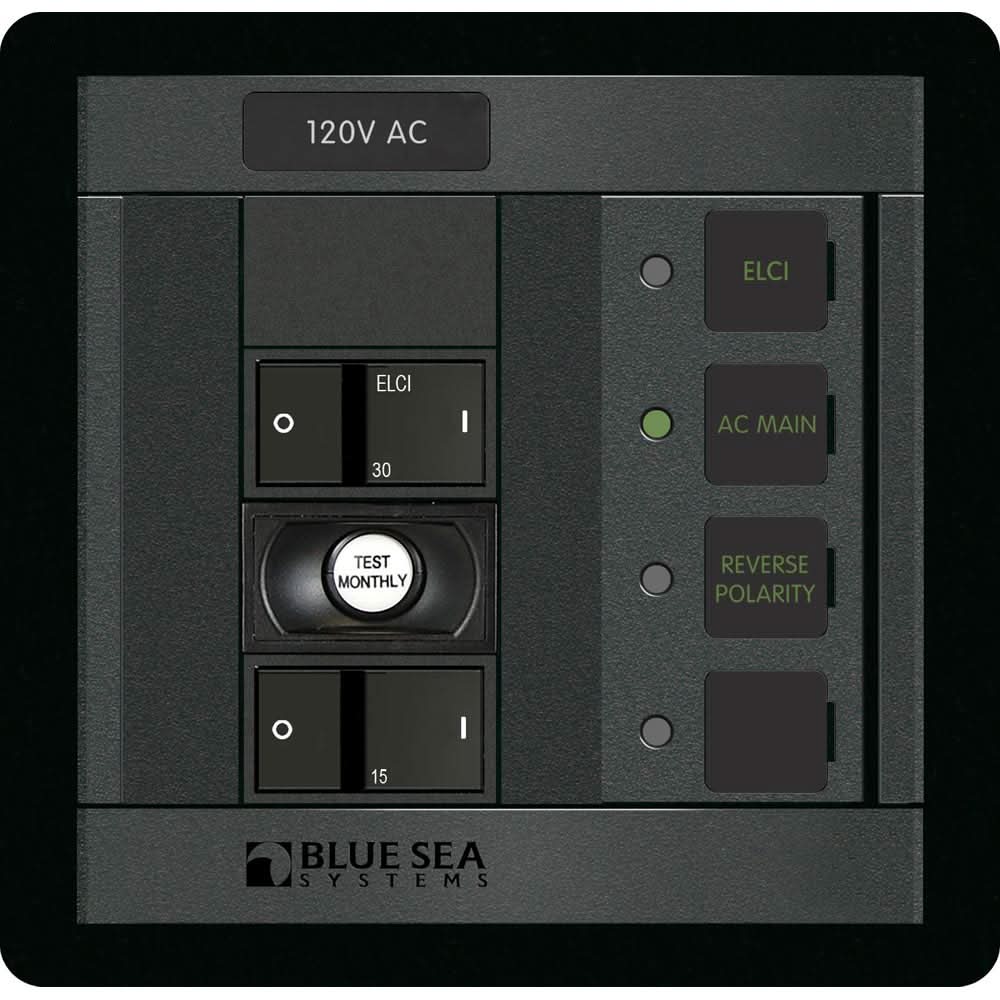

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position - 1190

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position - 1190

ELCI Main 30A Double Pole + 1 Position

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• One 15A AC Branch Flat Rocker Circuit Breaker

• Red " Reverse Polarity" LED

• Includes 4206 AC Panel Basic Square Format Label Set

• All circuit label positions are backlit

• "ON" indicating LEDs

Specifications:

• Positions: 1

• Nominal Voltage: 120V AC

• Backlit Label*: Green LED

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.99" (101.35mm)

• Weight: 1.00lb (0.45kg)

Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
