Bennett Marine Hydraulic Actuator with Sensor for TPI & NMEA Systems – A1101CP

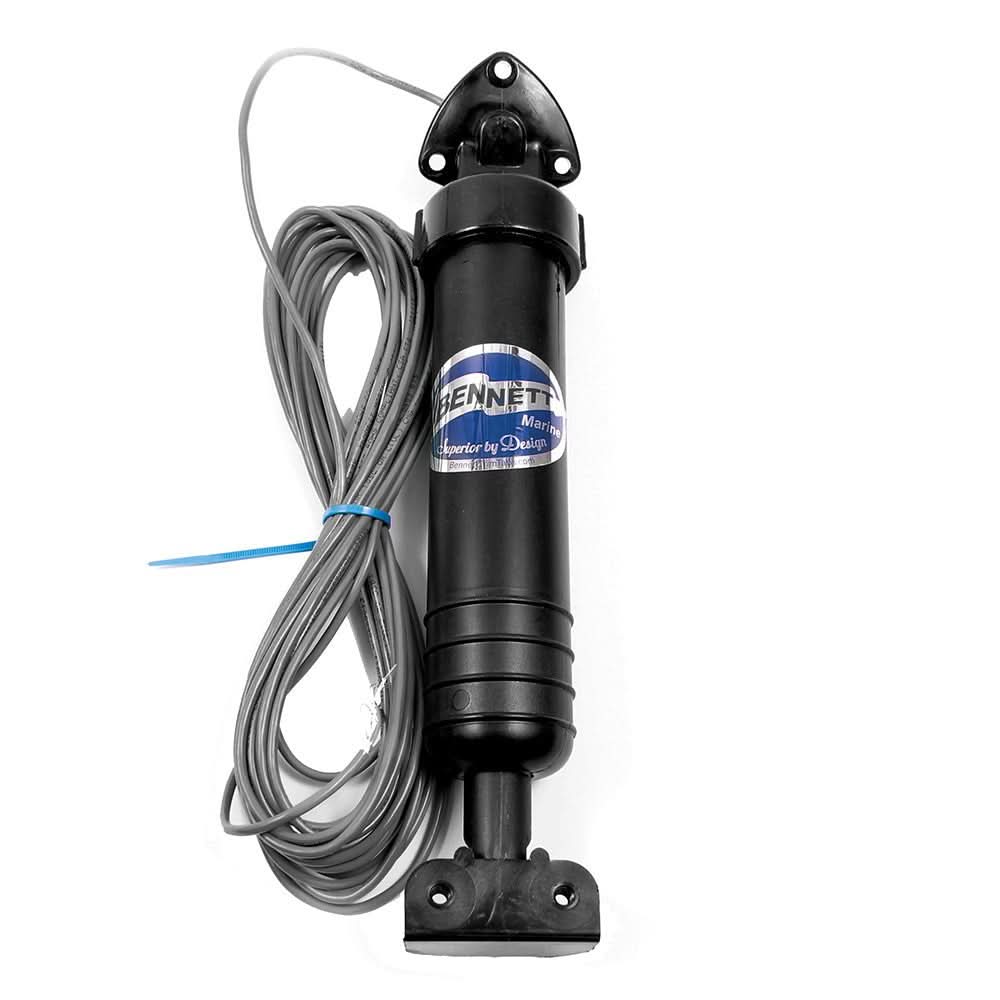

The Bennett Marine A1101CP Hydraulic Actuator with Sensor is a high-performance trim tab actuator designed to provide precise trim tab positioning and real-time feedback for boats equipped with TPI (Trim Position Indicator) or NMEA-compatible systems. Built for durability and reliability in demanding marine environments, this actuator is an essential component for maintaining optimal boat performance and stability.
Constructed from strong nylon and fiberglass materials, the actuator is both durable and corrosion-resistant while remaining flexible enough to handle constant marine movement. The integrated position sensor allows your trim tab system to send accurate tab position data to TPI gauges or NMEA-compatible chartplotters, giving operators precise control over boat trim and ride balance.
The actuator measures approximately 13-3/4 inches in length with a standard 2.5-inch stroke, providing the movement needed to raise and lower trim tabs effectively. A 30-foot cable is included for convenient installation and system integration. The actuator uses Bennett’s internal hydraulic fluid path through the hinge, eliminating exposed hoses that could be damaged during operation.
Designed as a direct replacement or upgrade for Bennett hydraulic trim tab systems, the A1101CP ensures smooth, reliable operation while improving boat handling, efficiency, and overall ride comfort.
Key Features
-
Integrated Position Sensor: Provides accurate tab position data directly to your helm display or NMEA network.
-
Port Side Configuration: Specifically designed with the sensor wiring and orientation for port-side installation.
-
Durable Construction: Features a reinforced nylon glass-filled cylinder body for maximum longevity and UV resistance.
-
Leak-Proof Design: Includes high-quality internal seals to maintain hydraulic pressure and prevent fluid loss.
-
System Compatibility: Fully compatible with Bennett Marine's classic hydraulic power units and modern digital indicator systems.
| Feature | Specification |
| Model Number | A1101CP |
| Compatibility | Bennett Hydraulic Trim Tab Systems |
| Position | Port (Left Side) |
| Sensor Type | Integrated (for TPI/NMEA 2000) |
| Material | Fiberglass Reinforced Nylon |
| Connector | Standard Bennett Marine Sensor Plug |
Upgrade or replace your trim tab actuator with the Bennett Marine A1101CP, delivering accurate trim tab feedback, dependable hydraulic performance, and improved boat handling on the water.
In the Box
-
(1) Bennett Marine A1101CP Port Actuator with Sensor
-
(1) Upper Hinge with Sensor Wire
-
(1) Lower Hinge with Mounting Hardware
-
Installation Instructions
P65Warnings.ca.gov. This product may not be returned to the original point of purchase; please contact Bennett Marine directly with any concerns or issues for support and service.
BRAND: Bennett Marine
Manufacturer Part Number: A1101CP
