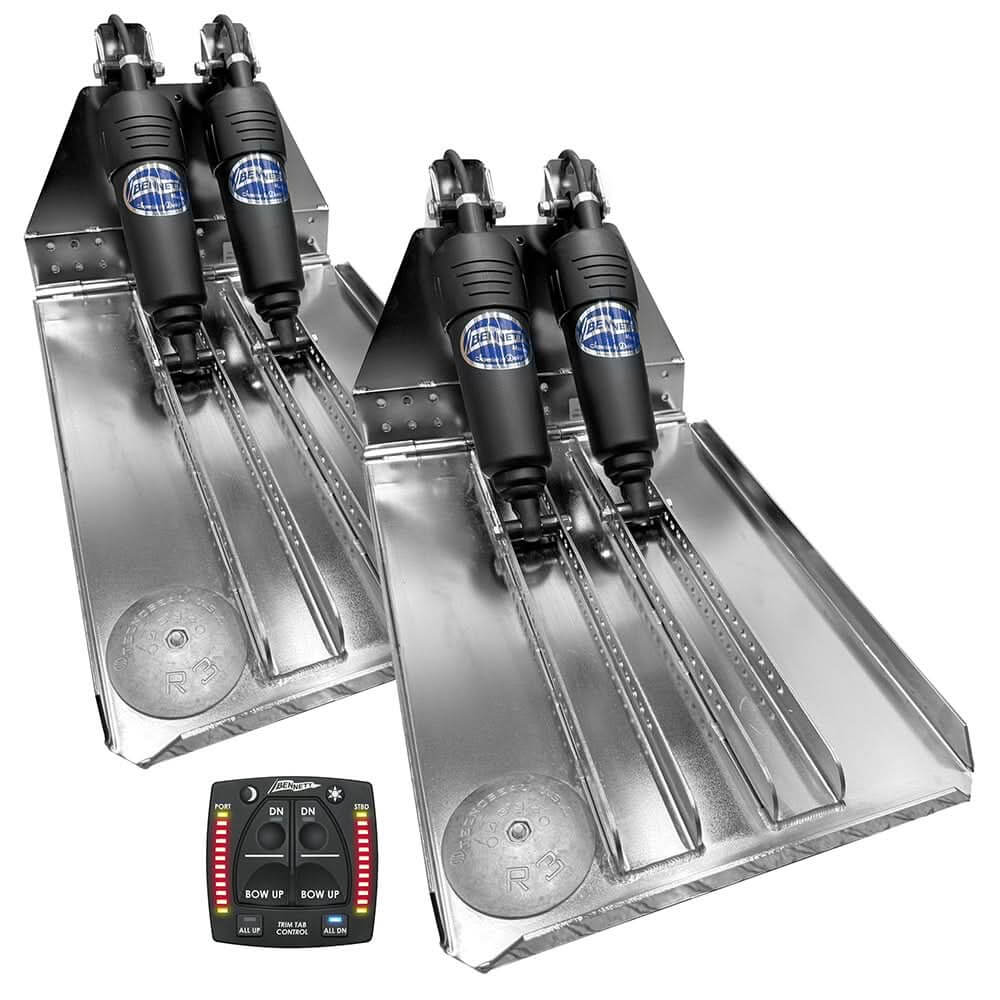

Bennett Marine BOLT 14x23 Dual Electric Trim Tab System with One Box Indication Unit - BOLT1423HD-OBI
Manufacturer Part #: BOLT1423HD-OBI
Couldn't load pickup availability
Bennett Marine BOLT 14 x 23 Dual Electric Trim Tab System with One Box Indication Unit – BOLT1423HD-OBI
The Bennett Marine BOLT 14 x 23 Dual Electric Trim Tab System with One Box Indication (OBI) delivers powerful, precise trim control for larger boats that demand improved handling, performance, and efficiency. Designed as a modern electric alternative to traditional hydraulic systems, the Bennett BOLT system combines robust electric actuators, oversized trim planes, and an integrated One Box Indication unit for reliable, easy-to-use operation.
Featuring 14" x 23" heavy-duty stainless steel trim tab planes, this system provides increased lift and control, making it ideal for larger center consoles, offshore fishing boats, cruisers, and workboats. The electric actuators offer fast response times, simplified installation, and reduced maintenance, eliminating the need for hydraulic pumps, hoses, or fluid.
The included One Box Indication (OBI) unit combines the trim tab control and position indication into a single, clean interface. This provides real-time feedback on tab position, helping operators dial in optimal trim settings for changing sea conditions, load distribution, and speed. The intuitive design enhances confidence at the helm while improving overall ride comfort and fuel efficiency.
Built with marine-grade materials and corrosion-resistant components, the Bennett BOLT system is engineered for dependable performance in both freshwater and saltwater environments. Whether you’re upgrading an existing trim tab setup or installing a new system, the BOLT 14 x 23 delivers the durability and control Bennett Marine is known for.
Key Performance Features
-
High-Performance Tabs: 12-gauge 304 stainless steel with up-fins provides extreme rigidity for boats that need aggressive leveling.
-
One Box Indication (OBI): A standalone helm control that eliminates the need for an external "control box" module. All logic is built into the keypad.
-
LED Position Indicators: Real-time feedback always shows you the exact deflection of your tabs.
-
Auto Tab Retraction (ATR): Automatically retracts the tabs when the ignition is turned off to prevent damage during trailering or storage.
-
BEA3000 Adjustable Actuators: Features adjustable upper hinges, allowing for easier mounting on various transom angles without additional shimming.
-
Dual Actuator Design: Two actuators per tab (4 total) provide double the force (approx. 1500 lbs total per side) to manage large, heavy trim planes.
Technical Specifications
| Feature | Details |
| Model Number | BOLT1423HD-OBI |
| Tab Dimensions | 14' Span} x 23" Chord |
| Voltage12v | |
| Actuators | 4 x BEA3000 (Adjustable Upper Hinge) |
| Material | 12-Gauge Electro-polished Stainless Steel |
| Max Force | $750\text{ lbs}$ per Actuator ($1500\text{ lbs}$ per side) |
| Warranty | Lifetime Warranty on Actuators |
In The Box
-
2 x Heavy-Duty Stainless Steel Trim Tabs (14x23)
-
4 x 12V Adjustable Upper Hinge Actuators (BEA3000)
-
1 x OBI Integrated Helm Control (OBI9000E)
-
4 x 20ft Wire Harnesses with waterproof connectors
-
All necessary mounting hardware and templates
Installation Note: Transom Height
Because the BEA3000 actuators feature an adjustable hinge, they are highly versatile for different transom angles. However, you still need approximately 10.25 inches of vertical transom height (from the bottom of the hull up) to accommodate the height of the actuators and mounting plates.
The Bennett Marine BOLT 14 x 23 Dual Electric Trim Tab System with OBI is a powerful, user-friendly solution for boaters seeking advanced trim control, reduced maintenance, and proven Bennett reliability on the water.
BRAND: Bennett Marine
Manufacturer Part Number: BOLT1423HD-OBI
Bennett Marine BOLT 14x23 Dual Electric Trim Tab System with One Box Indication Unit - BOLT1423HD-OBI is backordered and will ship as soon as it is back in stock.
