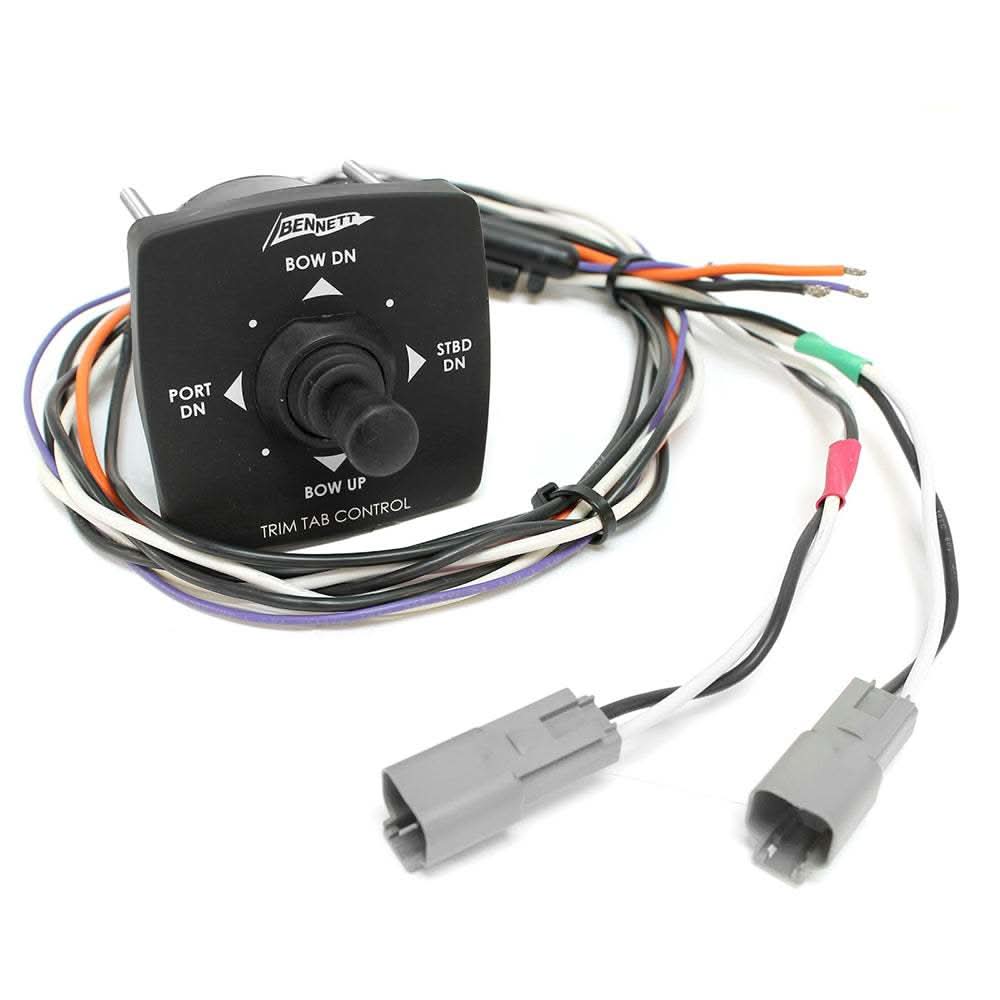

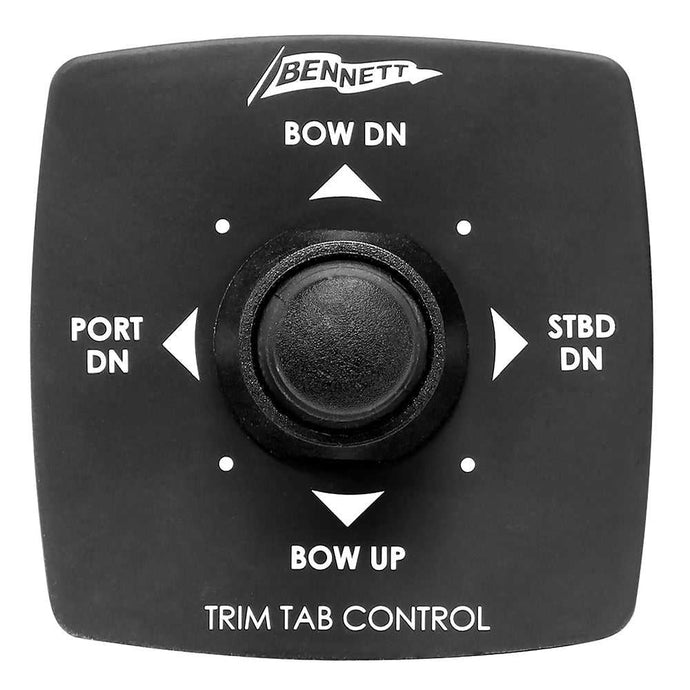

Bennett Joystick Helm Control (Electric Only) - JOY1000

Bennett Joystick Helm Control for BOLT Electric Systems | JOY1000

The Bennett JOY1000 brings intuitive, modern control to your trim tab system. Specifically designed for Bennett BOLT Electric Trim Tab systems, this joystick interface replaces traditional rocker switches with a 360-degree control stick. It allows the captain to adjust the boat’s pitch and roll simultaneously with a single hand, providing a more "natural" feel for leveling the vessel.

Intuitive "Point-and-Go" Steering for Your Hull

The JOY1000 is engineered to be ergonomic and highly responsive. Instead of thinking about which individual tab to lower or raise, you simply move the joystick in the direction you want the boat to react. If the port side is low, you move the stick to the right; if the bow is too high, you push the stick forward.

Key Features:

• 360-Degree Control: Move the joystick in any direction to correct for listing and pitch simultaneously.

• Electric System Compatibility: Designed exclusively for use with Bennett BOLT (Electric) actuators.

• Tactile Feedback: The joystick provides a positive, "crisp" feel, allowing for micro-adjustments during high-speed operation.

• Space-Saving Design: The compact round footprint requires less dash space than traditional dual-rocker switch panels.

• Plug-and-Play Installation: Utilizes waterproof connectors for a simple, reliable connection to the BOLT control harness.

• Auto Tab Retraction: When the boat’s ignition is turned off, the JOY1000 signals the tabs to retract fully, protecting them from marine growth and damage.

Technical Specifications:

• Model Number: JOY1000

• Compatibility: Bennett BOLT Electric Systems ONLY (12V)

• Bezel Shape: Round

• Mounting: Dash/Console Top Mount

• Control Type: Single-axis/Multi-axis Joystick

How the Joystick Intuition Works:

Installation Note:

The JOY1000 is a "Stand-Alone" control. It is designed for use on boats that do not already have an AutoTrim Pro system installed. It requires a 2.5" (64mm) hole for mounting and connects directly to the BOLT relay module. Because it is an electronic component, ensure the gaskets are seated properly to maintain the waterproof seal on your console.
