Bennett ES2000 Euro Style Rocker Switch
Manufacturer Part #: ES2000
Couldn't load pickup availability

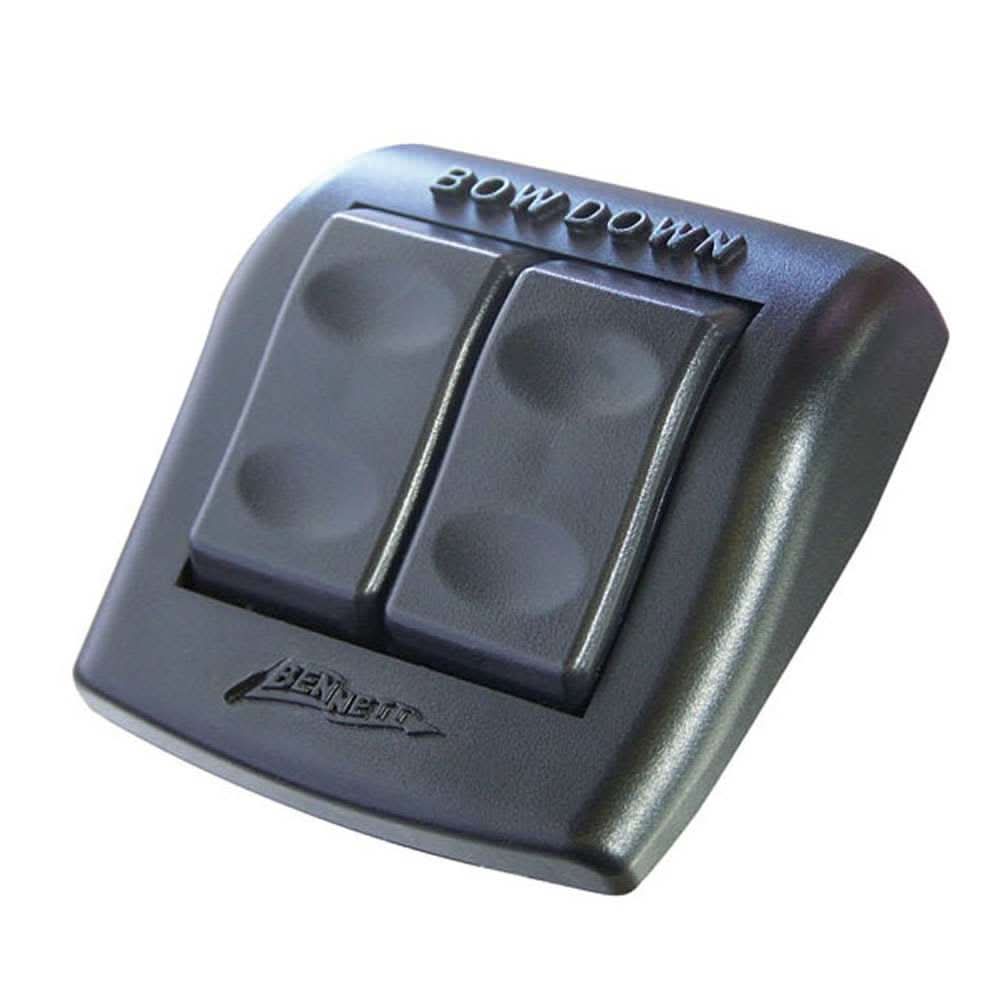

Bennett ES2000 Euro Style Rocker Switch
The Bennett ES2000 Euro Style Rocker Switch is a premium trim tab control designed for Bennett hydraulic trim tab systems, delivering smooth and precise adjustment right from your helm. Featuring an ergonomic Euro-style design and water-resistant construction, this switch offers reliable performance in demanding marine environments.
Built for simplicity and durability, the Bennett ES2000 provides positive “click” action that lets you fine-tune your boat’s trim tabs with confidence, improving handling, planing performance, and ride quality. A lock-out feature prevents pressing both directions at once, ensuring safe and intuitive operation.
The control easily installs into a standard 2-1/2" switch cutout, making it a perfect replacement or upgrade for original trim tab switches. Suited for a wide range of vessels equipped with Bennett hydraulic systems, the ES2000 adds both functionality and style to your helm station.
Key Performance Features
-
Positive Click Feedback: Unlike soft-touch pads, these rockers provide a distinct mechanical "click," allowing you to feel exactly when the pump engages.
-
Ergonomic Euro Design: Features a curved, attractive profile that matches modern helm aesthetics and is easy to operate even while wearing gloves.
-
Water-Resistant Construction: Built specifically for the marine environment to withstand spray and high-humidity conditions.
-
Standard 2-1/2" Cutout: Designed to fit into the same mounting hole as older Bennett rocker switches, making it an ideal "drop-in" upgrade for older boats.
-
Simplified Wiring: Uses a straightforward 4-wire color-coded system to control the Port and Starboard actuators.
Technical Specifications
| Feature | Details |
| Model Number | ES2000 |
| Compatibility | Hydraulic Systems Only (Standard Bennett HPU) |
| Cutout Size | 2-1/2" Diameter |
| Bezel Dimensions | 2-13/16" x 2-13/16" |
| Voltage | 12V DC (Standard) |
| Fuse | 20 Amp (included on orange power wire) |
Wiring Guide (Color Codes)
The ES2000 uses the standard Bennett hydraulic wiring convention:
-
Orange (with Fuse): 12V Positive (+) Power
-
Blue: Pump Pressure (Trim Tabs Down / Bow Down)
-
Yellow: Pump Retract (Trim Tabs Up / Bow Up)
-
Red: Port Valve
-
Green: Starboard Valve
In The Box
-
1 x ES2000 Rocker Switch Control
-
1 x Snap-on Bezel
-
4 x Mounting Screws (#8)
-
Ring Terminals (for wire attachment)
-
Installation Instructions
Pro Tip: When installing, use a 2-1/2" hole saw for the center cutout. To avoid cracking the gelcoat, run the hole saw in reverse until you are through the top layer of fiberglass, then switch to forward.
Perfect for boat owners looking to replace or upgrade their trim tab control switch, the Bennett ES2000 combines ergonomic design with rugged reliability for precise trim tab operation.
Optional Add-On: Also available is the Bennett ES2000A Euro Style Rocker Switch w/20' Wire Harness version, which includes a 20′ harness for easier installation.
