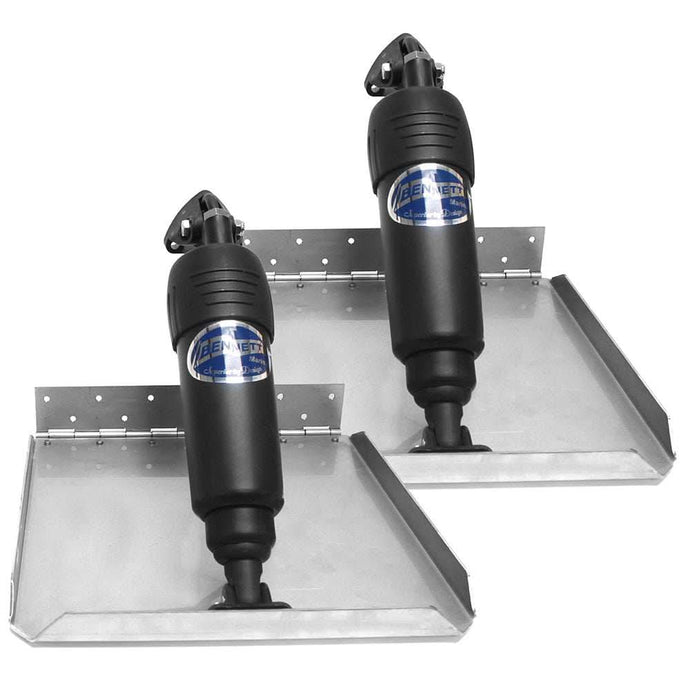

Bennett BOLT 1212ED Electric - Edge Mount Limited Space Trim Tab Kit - 12V - BOLT1212ED

Bennett BOLT 1212ED Electric Trim Tab Kit | Edge Mount Limited Space (12" x 12")

Improve your boat's performance and ride quality with the Bennett BOLT1212ED. This high-performance electric trim tab system is specifically designed for boats with limited transom space. By utilizing an Edge Mount (also known as a "Short Actuator") design, this kit allows for installation on transoms with lower heights or obstructions that prevent standard actuator mounting.

Precise Control & "Bolt" Reliability

The BOLT series features a robust, water-tight actuator design that eliminates the need for hydraulic pumps and hoses. The 12" x 12" tabs provide a large surface area, making this kit ideal for boats ranging from 17 to 28 feet that require significant lift to get on plane quickly or to correct listing due to uneven weight distribution.

Key Features:

• Edge Mount Design: Requires significantly less vertical transom height than standard mounts, making it perfect for swim platforms or ladder obstructions.

• Heavy-Duty 12V Actuators: Features a permanent magnet motor and a high-torque planetary gear system for near-instant response and incredible holding power.

• 12" x 12" Stainless Steel Tabs: Constructed from 12-gauge 304 stainless steel with a trailing edge design that maximizes lift and reduces drag.

• Fast & Quiet Operation: The electric motor provides immediate tab movement with minimal noise compared to older hydraulic systems.

• Completely Waterproof: The actuators feature a triple-seal design and a "Plug & Play" waterproof connector to ensure long-term reliability in salt or freshwater.

• Nylon Actuator Body: The fiberglass-reinforced nylon construction is impervious to corrosion and UV damage.

Technical Specifications:

• Model Number: BOLT1212ED

• Tab Size: 12" x 12"

• Voltage: 12V DC

• Mounting Style: Edge Mount (Limited Space)

• Application: Recommended for boats 17' - 28'

• Material: 304 Stainless Steel

Why Choose the Edge Mount (ED) Version?

Most trim tab actuators mount to the center of the tab and require about 14 inches of vertical space on the transom. The Edge Mount connects further down the tab, allowing the actuator to sit much lower. If you have a low-profile transom or a swim platform that sits close to the waterline, the BOLT1212ED is often the only way to fit a full-sized 12" tab.

Installation Note:

This kit includes the tabs and actuators, but does not include a control switch. To complete the installation, you will need a Bennett BOLT-compatible switch, such as the OBT8000 (All-in-One Control) or the BOLTIC101 (Indication Control).
