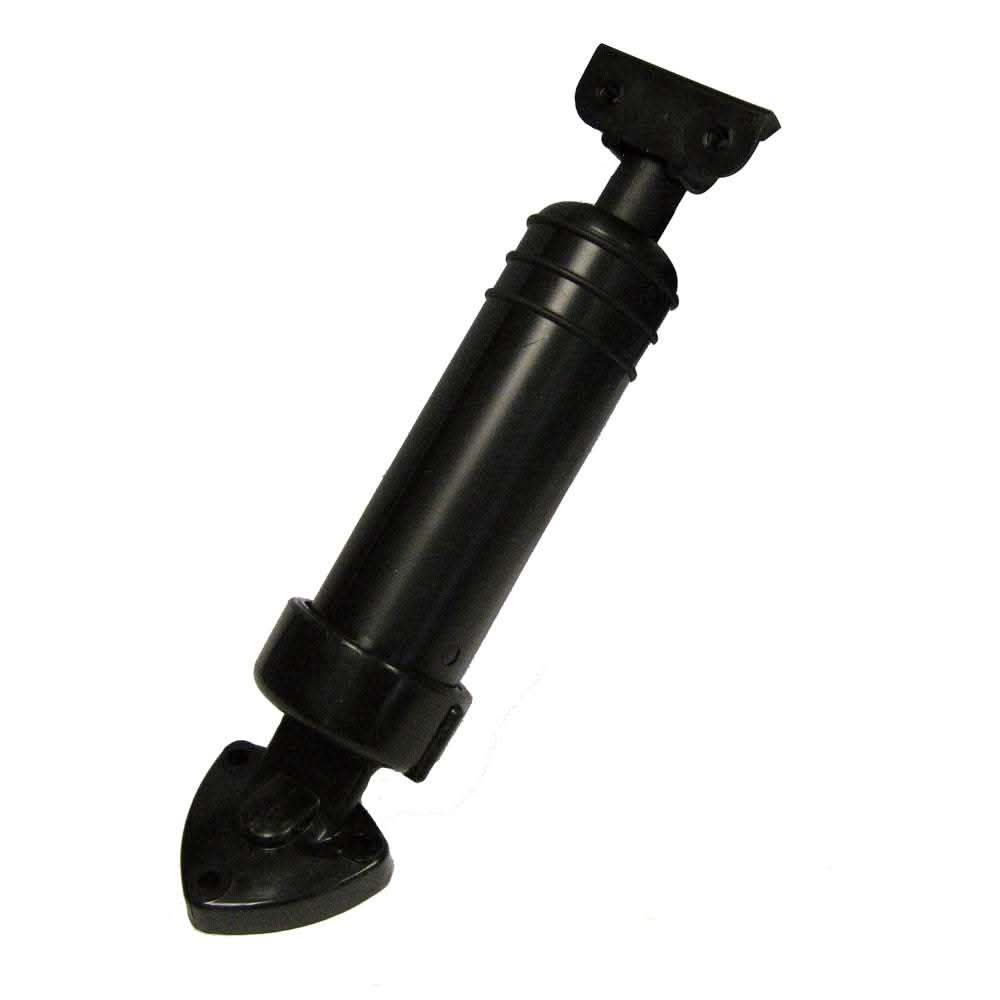

Bennett A1200S Actuator Assembly

Bennett Short Hydraulic Actuator Assembly | 11.75" Closed Length (A1200S)

The Bennett A1200S is the "Short" version of the legendary Bennett hydraulic actuator. It is specifically engineered for installations where limited transom height or physical obstructions (such as swim platforms, ladders, or low-profile transoms) prevent the use of the standard 13.75" actuator.

Compact Design, Full-Sized Power

Despite being 2 inches shorter than the standard A1101A model, the A1200S still provides a full 2.5" stroke, ensuring you don't sacrifice any trimming range or performance. It uses the same time-tested hydraulic technology, moving the trim tabs with precision and holding them firmly in place even under heavy loads.

Key Features:

• Short Profile Design: Measures 11.75" (approx. 298mm) in the closed/retracted position, making it the problem-solver for tight spaces.

• Through-Transom Hydraulics: Features the classic Bennett concealed-hole design in the upper hinge, allowing the hydraulic line to pass directly through the transom to avoid exposed exterior hose.

• Easy Identification: Can be visually identified by 3 raised rings on the lower part of the actuator body (standard actuators have 4 rings).

• Rugged Construction: Made from high-strength, fiberglass-reinforced nylon that is completely immune to corrosion, electrolysis, and UV damage.

• Standard 2.5" Stroke: Delivers the same range of motion as the standard-sized ram, providing consistent lift across your entire speed range.⁹

• Maintenance-Free: Designed with a heavy-duty internal spring and high-pressure seals that require no regular servicing.

Technical Specifications:

• Model Number: A1200S

• Closed Length: 11.75" (298mm)

• Stroke Length: 2.5" (63.5mm)

• Type: Hydraulic (Standard Power Unit compatible)

• Material: Reinforced Nylon

• Installation: Standard 4-hole mounting pattern on the upper hinge.

Comparison: A1101A vs. A1200S

Installation Note:

If you are replacing a standard A1101A with this shorter A1200S, please note that you will likely need to relocate the mounting holes on your transom to accommodate the different height. This actuator does not include hardware; it is recommended to use the Bennett H1170A hardware kit if you are doing a fresh installation or replacing damaged screws.
