Bennett 369 Trim Tab Kit 36' x 9' without Control - 369
Manufacturer Part #: 369
Couldn't load pickup availability

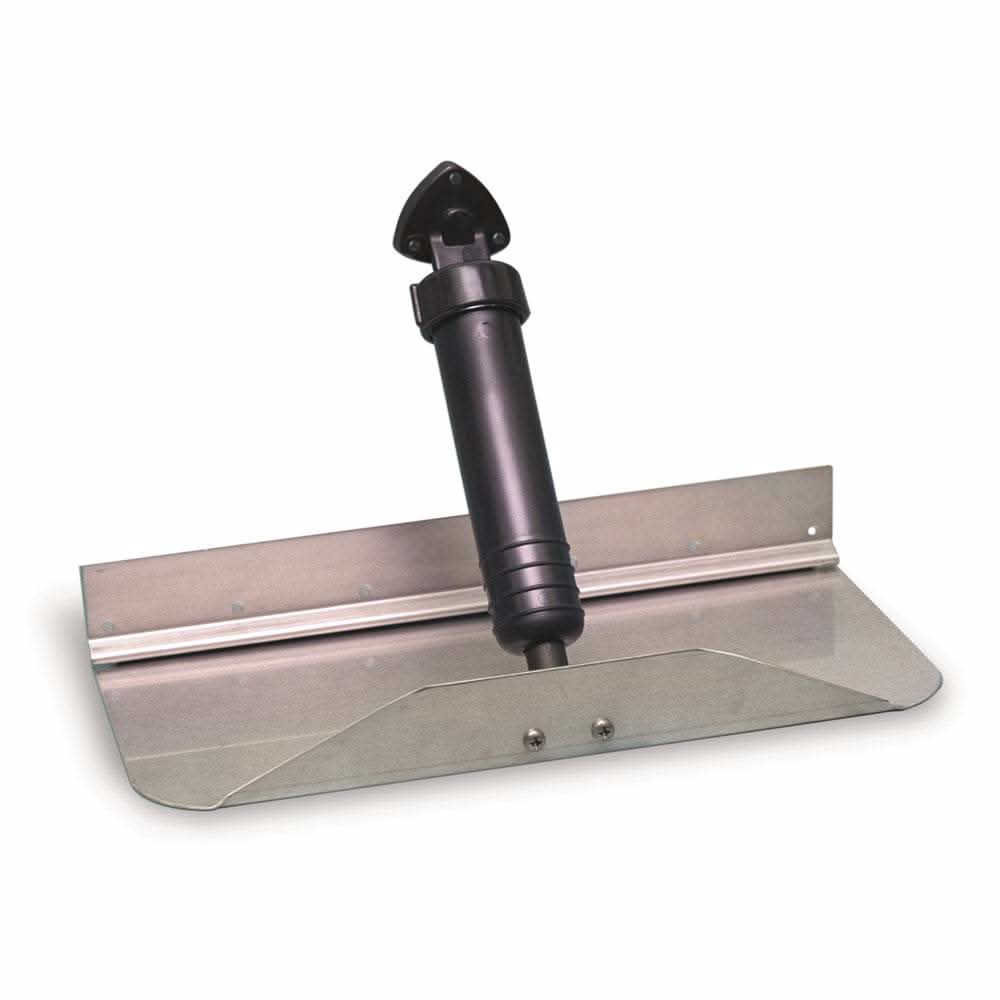

Bennett 369 Trim Tab Kit 36" x 9" Without Control – 369
The Bennett 369 Trim Tab Kit features extra-wide 36" x 9" stainless steel trim tabs designed to deliver maximum lift, stability, and performance for larger boats and heavy-displacement hulls. Engineered for reliability and precision, this kit is ideal for boat owners upgrading an existing Bennett system or replacing worn trim tab planes while retaining their current controls.
The oversized trim tab planes provide enhanced lift at lower speeds, helping boats plane faster, reduce bow rise, correct listing, and maintain a smoother, more efficient ride in varying sea conditions. Built from marine-grade stainless steel, Bennett trim tabs are designed to withstand harsh saltwater environments and deliver long-term durability.
This kit is supplied without a control unit, making it a perfect solution for repower projects, system repairs, or custom installations where compatible Bennett controls are already in place. When paired with Bennett hydraulic actuators and controls, the 369 trim tabs deliver precise, responsive performance trusted by boat builders and marine professionals worldwide.
Key Performance Features
-
Heavy-Duty 304 Stainless Steel: The planes are sheared and bent rather than welded, preserving the integrity of the stainless steel and preventing the corrosion often found at weld points.
-
Through-Hull Hydraulics: Bennett actuators feature a clean installation where all hydraulic lines are internal, protecting them from UV damage, marine growth, and accidental impact.
-
V351HPU1 Hydraulic Power Unit: A high-torque, 12V pump unit that is powerful enough to deflect these large 36" tabs even under extreme water pressure.
-
Interlocking Hinge Design: Provides a secure, flush connection to the transom that is strong enough for professional and commercial applications.
-
Legendary Reliability: Classic hydraulic systems are famously easy to service; if a part wears out after a decade of use, individual components are widely available and simple to replace.
Technical Specifications
| Feature | Details |
| Model Number | 369 (Classic Series) |
| Tab Dimensions | 36" Span x 9" Chord |
| Recommended Boat Size | 34' to 65' |
| Material | 304 Stainless Steel (Planes) |
| Voltage | 12V DC (24V available by request) |
| Max Amp Draw | 20 Amps |
| Warranty | 5-Year Limited Warranty |
In The Box
-
2 x 36" x 9" Trim Plane Assemblies (Includes backing plates and hinges)
-
2 x A1101A Hydraulic Actuators (Standard 13.75" length)
-
1 x V351HPU1 Hydraulic Power Unit (12V)
-
1 x 20' Hydraulic Tubing (T1125)
-
1 x Hardware Bag (Includes all necessary fittings and fasteners)
⚠️ Note on Helm Controls
This kit does not include a switch. Since this is a hydraulic system, you will need a 4-wire control. Common compatible options include:
-
ES2000: Standard waterproof Euro-style rocker switch.
-
EIC5000: Electronic Indicator Control (shows tab position).
-
AP000A1BC: AutoTrim Pro (adds automatic leveling and "hole shot" modes).
The Bennett 369 Trim Tab Kit is a proven solution for boaters seeking improved control, stability, and performance, backed by Bennett Marine’s long-standing reputation for quality and reliability.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Bennett Marine
Manufacturer Part No : 369
UPC : 666285110508
Bennett 369 Trim Tab Kit 36' x 9' without Control - 369 is backordered and will ship as soon as it is back in stock.
