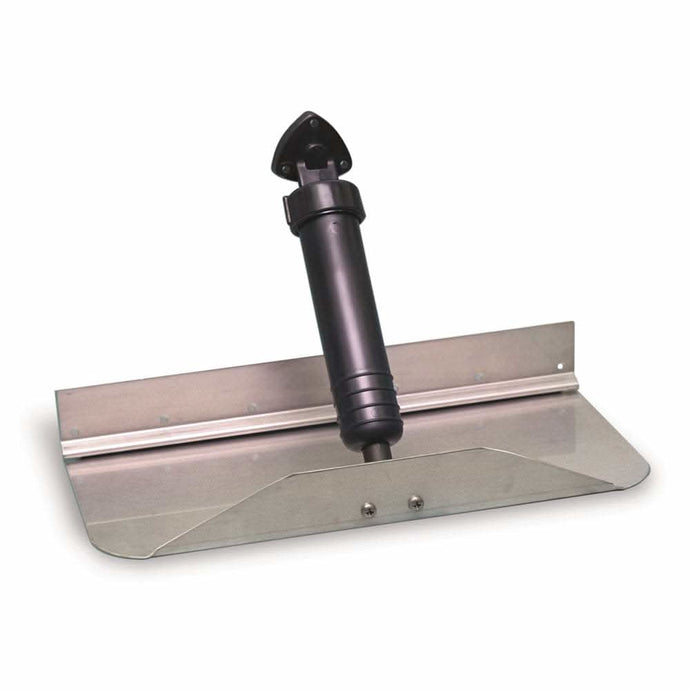

BENNETT 2412 24 X 12 Trim Tabs with No Controller

The Bennett Marine 2412 is a heavy-duty hydraulic trim tab kit from the "Classic" series. This $24" \times 12"$ system is specifically designed for mid-to-large sized vessels (typically 25' to 31') that require significant lifting power to overcome stern-heavy configurations or to stay on plane at lower speeds.

Key Performance Features

• High-Efficiency Span: The $24" \times 12"$ profile is engineered for boats that need aggressive bow correction and stability in offshore conditions.

• 12-Gauge 304 Stainless Steel: These planes are laser-cut and designed to resist flexing, ensuring consistent performance even under the heavy water pressure of a 30-foot cruiser.

• Legendary V351HPU1 Pump: Includes the industry-standard hydraulic power unit, famous for its reliability, quiet operation, and ability to hold tabs firmly in place without "creeping."

• Internal Through-Hull Hydraulics: The actuators feature a clean design where hydraulic lines pass through the transom internally, protecting them from UV damage, saltwater corrosion, and physical impact.

• Infinite Adjustability: Unlike some electric systems that move in fixed increments, Bennett hydraulics allow for precision micro-adjustments for a perfectly dialed-in ride.

Technical Specifications

In The Box

• 2 x 24" x 12" Trim Plane Assemblies (Includes backing plates and hinges)

• 2 x Hydraulic Actuators (A1101A)

• 1 x Hydraulic Power Unit (HPU) (V351HPU1)

• 1 x 20' Hydraulic Tubing (T1125)

• All necessary mounting hardware and installation templates

Recommended Helm Controls

Since this is a "No Controller" kit, you will need to add one of the following to operate the system:

• ES2000: Standard Euro-style rocker switch (Reliable and simple).

• EIC5000: Electronic Indicator Control (Shows you the exact position of your tabs via LED).

• AutoTrim Pro (AP000A1HA): Adds automatic leveling and "favorite" presets to your hydraulic system.
