BENNETT 1812E 18 X 12 Trim Tabs with Euro Rocker Switch
Manufacturer Part #: 1812E
Couldn't load pickup availability

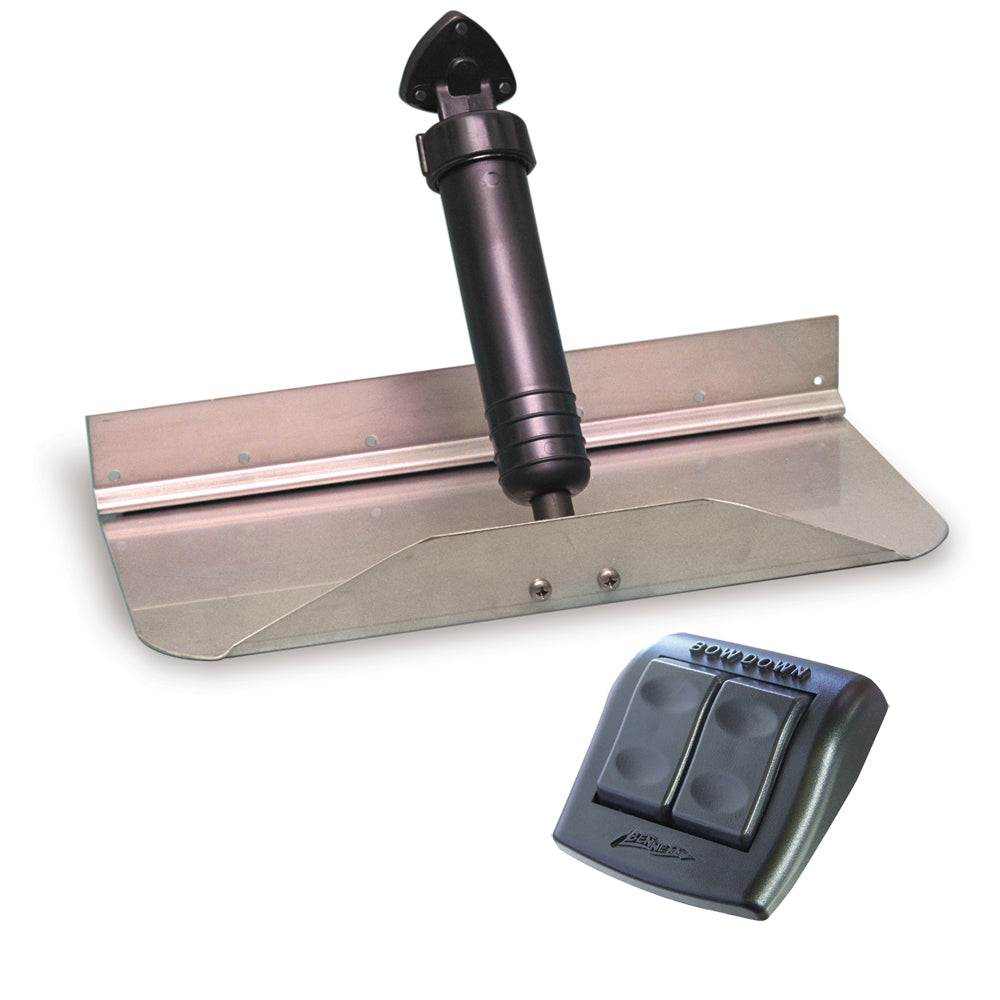

Bennett 1812E 18" x 12" Trim Tab System with Euro Rocker Switch
The Bennett 1812E Trim Tab System features 18" x 12" stainless steel trim planes paired with a Euro-style rocker control switch, providing enhanced lift, smoother handling, and precise trim adjustment for small- to mid-size powerboats. The wider 12-inch chord delivers increased control, making this system ideal for boats that need extra stern lift or improved balance under varying load conditions.
Using Bennett’s proven hydraulic trim tab technology, the 1812E system helps reduce bow rise, shorten time to plane, eliminate porpoising, and correct port-to-starboard listing. The included Euro rocker switch offers intuitive, responsive control with a modern, low-profile look at the helm.
Designed for durability in both freshwater and saltwater environments, the Bennett 1812E trim tabs are a reliable upgrade for center consoles, bowriders, and cruisers seeking improved performance and efficiency.
Key Performance Features
-
Euro-Style Rocker Switch (ES2000): This waterproof helm control features an ergonomic design with a positive "click" feel. It is simple to operate and highly reliable, allowing for independent control of each tab to level the boat perfectly.
-
12-Gauge 304 Stainless Steel: The planes are heavy-duty and designed to resist flexing under high-speed water pressure. Bennett’s interlocking hinge design distributes the load across the entire width of the tab for maximum transom integrity.
-
V351HPU1 Hydraulic Power Unit: The heart of the system is a high-torque pump that generates massive force to hold tabs in position without "creeping," yet is quiet enough to be mounted inside a cabin or bilge locker.
-
Internal Through-Hull Hydraulics: The actuators (A1101A) conceal the hydraulic lines within the upper hinge, passing them directly through the transom. This protects the hoses from UV degradation and physical snags.
-
Modular Serviceability: Every component—from the hydraulic tubing to the internal actuator O-rings—is replaceable, ensuring this system can be maintained indefinitely.
Technical Specifications
| Feature | Details |
| Model Number | 1812E |
| Tab Dimensions | |
| Recommended Boat Size | 22' to 27' |
| Material | 12-Gauge 304 Stainless Steel |
| Control Switch | Euro-Style Rocker (ES2000) |
| Voltage | 12V DC |
| Actuator Type | Hydraulic (A1101A) |
In The Box
-
2 x 18" x 12" Stainless Steel Trim Planes
-
2 x Hydraulic Actuators (A1101A)
-
1 x Hydraulic Power Unit (HPU) (V351HPU1)
-
1 x Euro-Style Rocker Switch (ES2000)
-
20' Hydraulic Tubing & 20' Wiring Harness
-
All necessary mounting hardware and installation templates
Installation Guidelines
-
Mounting Height: The tabs should be mounted approximately 1/4" above the bottom of the hull to prevent drag when fully retracted.
-
Hydraulic Fluid: The system requires standard Automatic Transmission Fluid (ATF) (Dexron or equivalent).
-
Switch Cutout: The ES2000 Rocker Switch requires a 2.5" (64mm) diameter hole in the dash.
Backed by Bennett Marine’s long-standing reputation for quality and performance, the 1812E 18 x 12 Trim Tabs with Euro Rocker Switch deliver smooth, dependable trim control for a more comfortable and efficient ride.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Bennett Marine
Manufacturer Part No : 1812E
BENNETT 1812E 18 X 12 Trim Tabs with Euro Rocker Switch is backordered and will ship as soon as it is back in stock.
