Bennett 1812 Trim Tab Kit 18'' x 12'' without Control
Manufacturer Part #: 1812
Couldn't load pickup availability

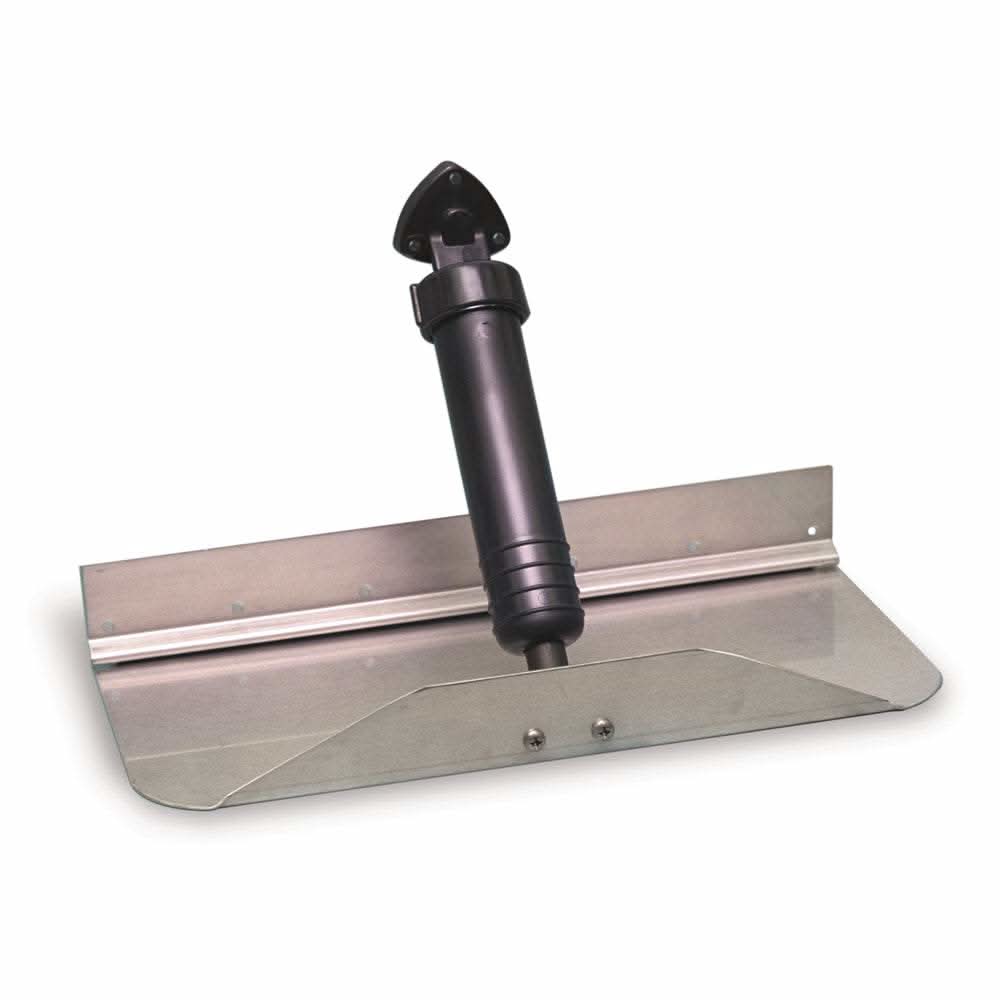

Bennett 1812 Trim Tab Kit – 18" x 12" Stainless Steel Trim Tabs (No Control)
The Bennett 1812 Trim Tab Kit features 18" x 12" stainless steel trim planes engineered to improve boat handling, performance, and fuel efficiency. Ideal for small to mid-size powerboats, these trim tabs help reduce bow rise, improve hole shot, and correct side-to-side listing caused by uneven weight distribution.
Constructed from heavy-duty 12-gauge marine-grade stainless steel, Bennett trim tabs are built to withstand harsh marine environments while delivering long-lasting reliability. When paired with compatible Bennett hydraulic or electric actuators and a control system (sold separately), the 1812 trim tabs provide precise hull attitude control in varying sea and load conditions.
This kit includes trim planes only and does not include a controller, actuators, hydraulic power unit, or switch, making it an ideal solution for replacement applications, system upgrades, or custom installations.
Key Performance Features
-
Heavy-Duty 304 Stainless Steel: The 12-gauge planes are designed to resist flexing even under extreme water pressure. Bennett’s interlocking hinge design provides a full-length, flush mount for maximum transom strength.
-
Hydraulic Precision: Powered by the industry-standard V351HPU1 pump. Hydraulic systems are favored by offshore boaters for their ability to hold position perfectly and their long-term serviceability.
-
Through-Hull Hydraulics: The actuators (A1101A) feature internal plumbing. The hydraulic lines pass through the upper hinge directly into the hull, protecting the hoses from UV damage, saltwater, and physical impact.
-
Serviceable Design: Unlike sealed electric units, every component of this system—from the pump solenoids to the actuator O-rings—is individually replaceable.
-
Infinite Adjustability: Provides micro-adjustments for a perfectly dialed-in ride, unlike electric systems that often move in fixed "steps."
Technical Specifications
| Feature | Details |
| Model Number | 1812 |
| Tab Dimensions | $18"\text{ Span} \times 12"\text{ Chord}$ |
| Recommended Boat Size | 22' to 27' |
| Material | 12-Gauge 304 Stainless Steel |
| Voltage | 12V DC |
| Actuator Type | Hydraulic (A1101A) |
In The Box
-
2 x 18" x 12" Trim Plane Assemblies (Includes backing plates and hinges)
-
2 x Hydraulic Actuators (A1101A)
-
1 x Hydraulic Power Unit (HPU) (V351HPU1)
-
1 x 20' Hydraulic Tubing (T1125)
-
Installation Hardware & Wiring Harness
Note: This kit does not include a helm control. You will need to purchase a hydraulic control switch (such as the ES2000, EIC5000, or AutoTrim Pro) to complete the installation.
Are you planning to upgrade to an automatic system?
Since this kit requires a control, many users opt for the AutoTrim Pro (AP000A1HA), which adds automatic leveling and LED position indicators to this hardware.
Trusted by boaters worldwide, Bennett Marine trim tabs deliver proven performance, durability, and precision control. The Bennett 1812 Trim Tab Kit is a reliable choice for optimizing your boat’s handling and overall on-water experience.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Bennett Marine
Manufacturer Part No : 1812
UPC : 666285125502
Bennett 1812 Trim Tab Kit 18'' x 12'' without Control is backordered and will ship as soon as it is back in stock.
