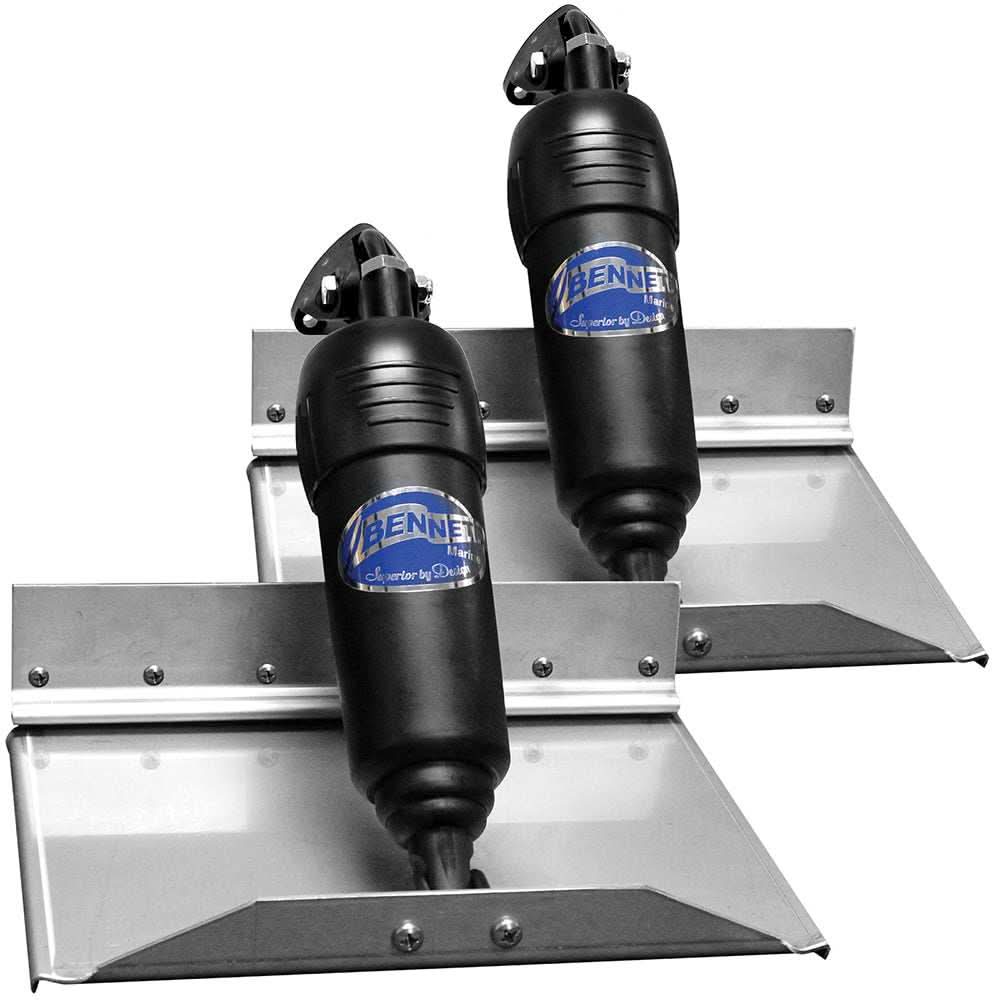

Bennett 12x9 Bolt System w/Adjustable Upper Hinge - BOLT129ADJ

Bennett 12" x 9" BOLT Trim Tab System – Adjustable Upper Hinge (BOLT129ADJ)

Enhance your boat’s handling, stability, and ride comfort with the Bennett 12" x 9" BOLT Trim Tab System, featuring an adjustable upper hinge for precise installation and optimized performance. Designed for sport boats, fishing boats, and recreational vessels, this system improves planing efficiency, reduces bow rise, and delivers smoother rides in a variety of water conditions.

Constructed from marine-grade, corrosion-resistant materials, the BOLT 12x9 Trim Tabs provide long-lasting durability in both saltwater and freshwater environments. The adjustable upper hinge allows for custom trim angles, giving boaters the flexibility to fine-tune performance and achieve superior stability under all conditions.

Key Features:

• 12" x 9" BOLT trim tabs with adjustable upper hinge for precise installation

• Reduces bow rise and improves planing efficiency

• Enhances ride comfort and boat handling

• Constructed from marine-grade, corrosion-resistant materials

• Ideal for sport boats, fishing boats, and recreational vessels

• Provides customizable trim angles for optimal performance

• Trusted marine hardware from Bennett

Upgrade your vessel with the Bennett 12x9 BOLT Trim Tab System with Adjustable Upper Hinge (BOLT129ADJ) for superior control, smoother rides, and enhanced boating performance.

Order the Bennett BOLT 12x9 Trim Tab System – Adjustable Upper Hinge from Anchor Express for professional-grade marine trim tabs built to last.

Features:

• Get on plane quickly to see over the bow
• Increase vessel performance and efficiency
• Correct listing (roll)
• Adjust the boat’s attitude for changes in speed, sea conditions, and shifting weight
• Correct porpoising (rhythmic bouncing)

General guidelines for choosing a trim tab size:

In general the widest span tabs that will fit on the transom will be the most effective. The greater the surface area, the greater the lift. We‘ll typically recommend a 9” chord tab, but depending on available transom space a shorter or longer chord tab, or specially shaped tabs with upfins or dropfins may be advised.

As a general rule for boats with max speeds of 40MPH, choose at least one inch of trim tab span (per side) for every foot of boat length. For example, a 22′ boat would use a 24”x9”.

For speeds 40MPH and over, we’ll generally point you to one of our Performance, or Premier Line high-performance systems.

Manufacturer : Bennett Trim Tabs
Manufacturer Part No : BOLT129ADJ
