BENNETT 129E 12 X 9 Trim Tabs with Euro Rocker Switch
Manufacturer Part #: 129E
Couldn't load pickup availability

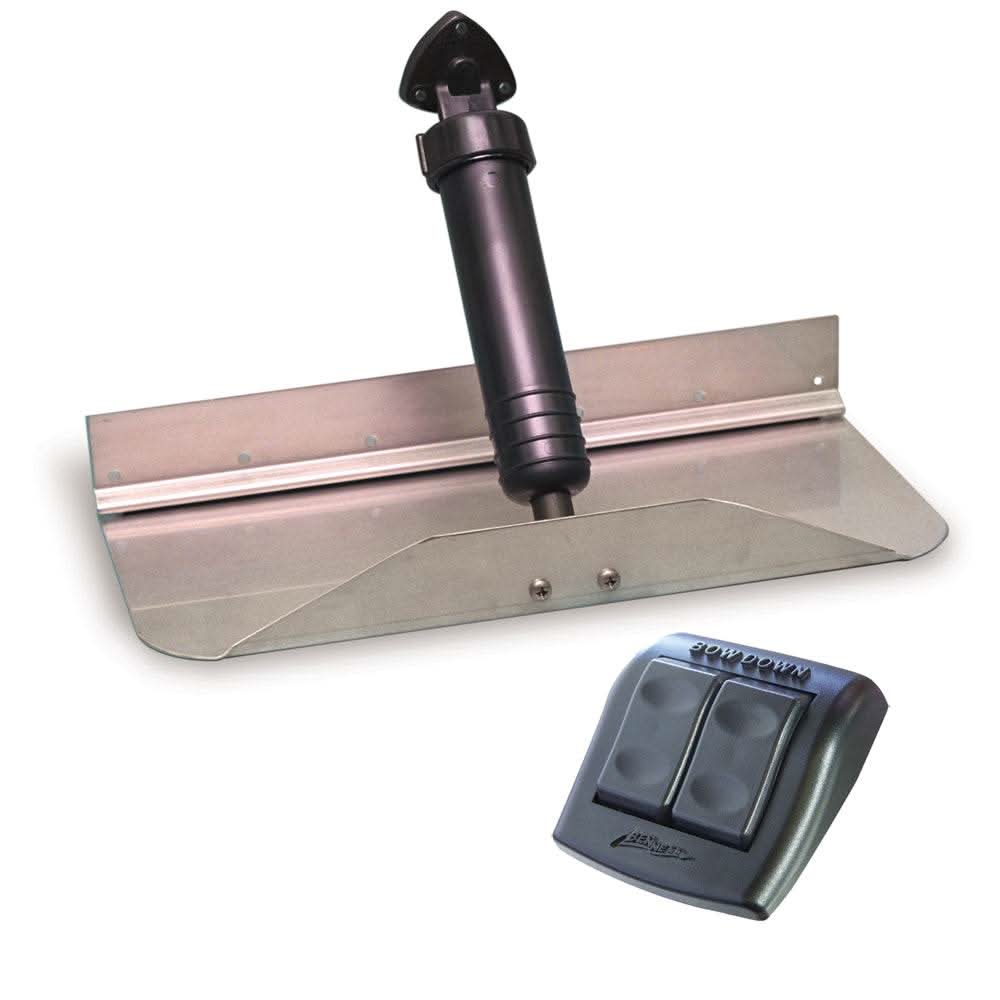

BENNETT 129E 12" x 9" Trim Tabs with Euro Rocker Switch
The Bennett 129E Trim Tab System is a complete hydraulic trim tab kit featuring 12" x 9" stainless steel trim planes paired with a Euro-style rocker switch control. Designed for small boats and outboard-powered vessels, this system delivers improved performance, stability, and handling in a wide range of on-water conditions.
The 12-inch wide by 9-inch deep trim tabs provide effective lift to reduce bow rise, help boats plane faster, and maintain a level ride. These trim tabs also correct side-to-side listing caused by uneven loads, wind, or sea conditions—resulting in better visibility, smoother handling, and improved fuel efficiency.
Built from marine-grade stainless steel, Bennett trim tabs are engineered for long-lasting durability and corrosion resistance in both freshwater and saltwater environments. The included Euro rocker switch offers intuitive, easy-to-use control with a clean, modern appearance that fits seamlessly into most helm dashboards.
Key Performance Features
-
Euro-Style Rocker Switch (ES2000): This waterproof helm control features an ergonomic design with a positive "click" feel, allowing for precise, tactile adjustments without looking down. It includes a safety lock-out to prevent pressing opposite directions simultaneously.
-
12x9 Standard Planes: Made from 13-gauge 304 stainless steel. Unlike competitor tabs, Bennett "shears and bends" their metal rather than welding, which prevents the heat-induced corrosion common at weld seams.
-
Internal Hydraulic Lines: The actuators (A1101A) feature through-hull hydraulics, meaning the fluid lines pass through the upper hinge and into the hull internally. This protects the hoses from UV rays, salt, and physical damage.
-
V351HPU1 Hydraulic Power Unit: This compact pump is powerful enough to hold the tabs firmly in place under high-speed pressure while remaining remarkably quiet during operation.
-
Serviceable & Reliable: Bennett hydraulic systems are famous for longevity. Because every part is modular, you can easily replace a single O-ring or a solenoid without replacing the entire system.
Technical Specifications
| Feature | Details |
| Model Number | 129E |
| Tab Dimensions | |
| Recommended Boat Size | 15' to 19' (Cruisers, Center Consoles, Runabouts) |
| Voltage | 12V DC (20 Amp Fuse) |
| Control Switch | Euro-Style Rocker (ES2000) |
| Material | 304 Stainless Steel |
| Warranty | 5-Year Limited Warranty |
In The Box
-
2 x 12" x 9" Trim Plane Assemblies
-
2 x Hydraulic Actuators (A1101A)
-
1 x Hydraulic Power Unit (HPU) (V351HPU1)
-
1 x Euro-Style Rocker Switch (ES2000)
-
20' Hydraulic Tubing & 20' Wire Harness
-
Installation Hardware & Instructions
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Bennett Marine
Manufacturer Part No : 129E
UPC : 666285101605
