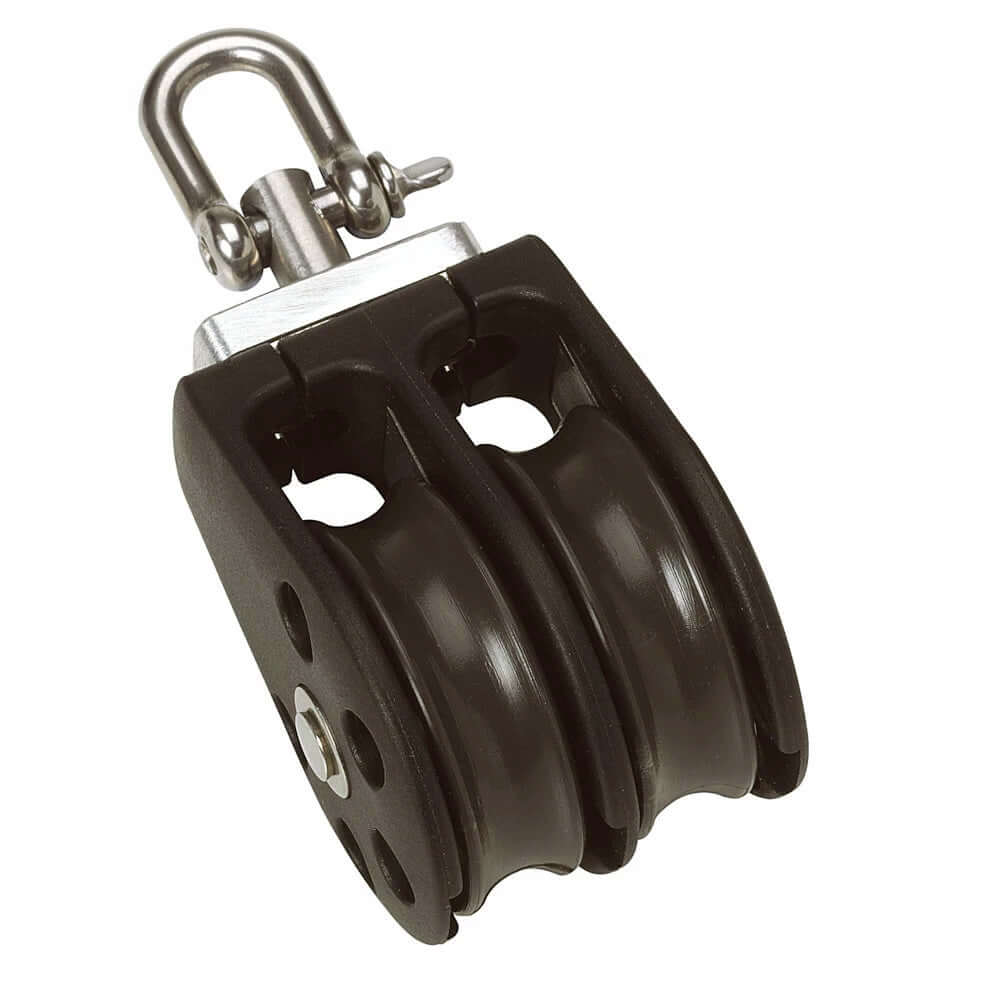

Barton 35mm Double Pulley

The Barton Size 2 35mm plain bearing double pulley block with swivel provides compact high-load handling for sailing rigging. Its 35mm (1 3/8") sheave and double configuration let you set multi-part purchases while remaining lightweight at 87 g.

When you need reliable line control without extra weight or frequent maintenance, this block offers a simple durable solution. The plain bearing sheave is suitable for steady loads and accepts rope up to 8mm (5/16"). Use it where a fixed eye with swivel and predictable load capacity are essential.

• Working Load Limit (SWL): 370 kg (815 lbs) and Break Load: 740 kg (1630 lbs)
• Double sheave 35mm x 11mm for multi-part purchase systems
• Fits rope up to 8mm (5/16") and weighs 87 g dimensions 83 x 39 x 38 mm
• Internal stainless steel frame and precision components for corrosion resistance
• Plain bearing sheave for low maintenance; ball bearing sheave options are available

Compared to ball bearing variants which reduce friction for high-speed leads, this plain bearing block provides clear static strength ratings and simpler upkeep. Use it on deck leads, control lines, halyards, or wherever a compact double block with swivel alignment improves handling.

Manufacturer Barton Marine part number N02230. Material and rating details reflect tested specifications making this block suitable for small yachts and rigging assemblies where you need documented load limits and durable stainless internal framing. Learn more today.
