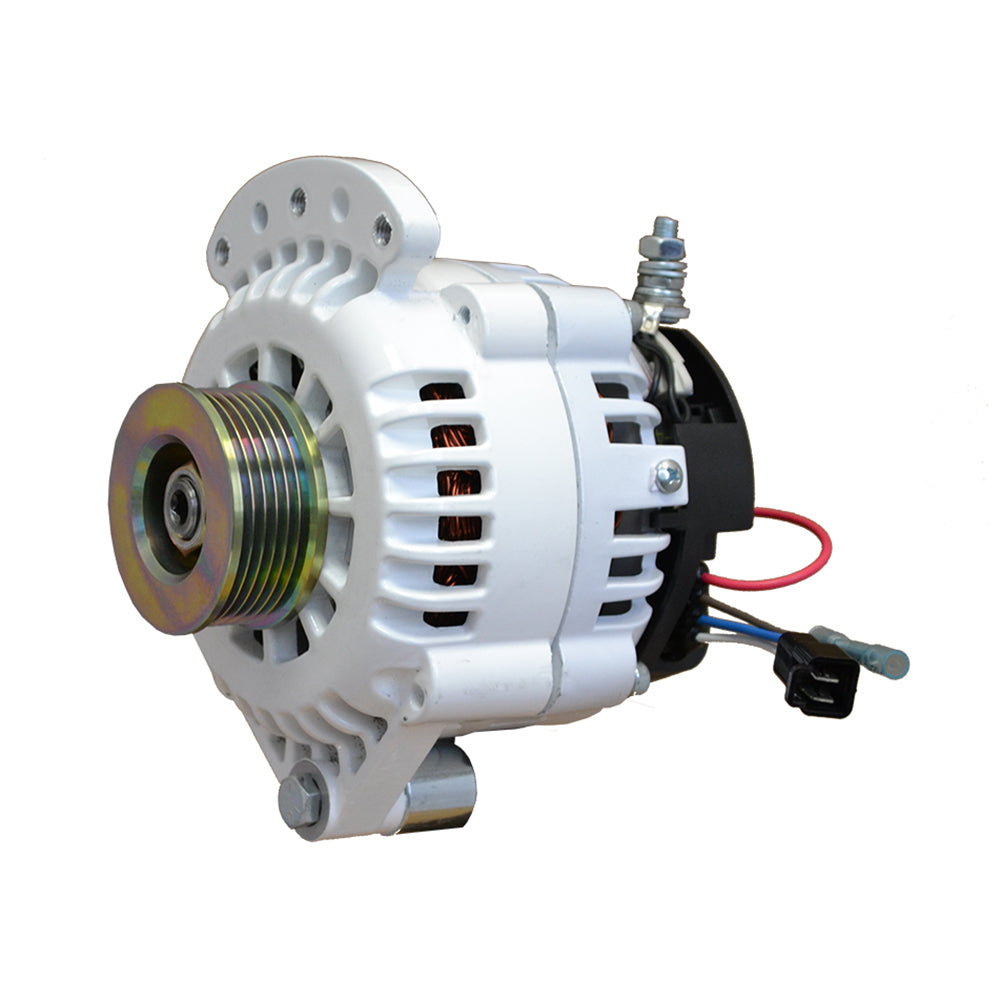

Balmar Alternator 120 Amp 12V 1-2" Single Foot Single K6 Pulley with Isolated Grounding - 621-120-K6
Manufacturer Part #: 621-120-K6
Couldn't load pickup availability
Balmar Alternator 120 Amp 12V Single Foot with K6 Pulley & Isolated Ground – 621-120-K6
The Balmar 621 Series Alternator – 120 Amp, 12 Volt (621-120-K6) is a high-output marine alternator designed for boats requiring dependable charging power in a compact, engine-friendly package. Featuring a 1-2” single-foot mount, K6 serpentine pulley, and isolated grounding, this alternator is ideal for modern marine electrical systems with sensitive electronics and upgraded battery banks.
Engineered for continuous-duty marine use, the 621 Series delivers strong charging performance at cruising RPMs, ensuring reliable power for house batteries, navigation electronics, refrigeration, lighting, and onboard accessories. The 120-amp output at 12 volts makes it well suited for sailboats, powerboats, and light commercial vessels.
The single K6 serpentine pulley provides superior belt traction, reduced slippage, and quieter operation compared to traditional V-belt designs. Isolated grounding enhances safety and compatibility with aluminum hulls, multi-battery systems, and corrosion-sensitive installations. Designed for use with external smart regulators, the alternator supports advanced multi-stage charging to maximize battery life across AGM, gel, and lithium systems (with proper regulation).
Built with marine-grade, corrosion-resistant materials, Balmar alternators are trusted by professional installers and cruisers worldwide for their durability, thermal efficiency, and long-term reliability in harsh marine environments.
By utilizing a K6 Serpentine Pulley, this alternator eliminates the belt slippage often found when trying to pull high amperage from traditional V-belts, ensuring all 120 Amps reach your batteries efficiently.
Key Performance Features
-
120 Amp High-Output: Engineered to deliver high current even at lower cruising RPMs.
-
Smart Ready® Technology: Includes a built-in internal regulator for basic charging or as a failsafe backup for external regulators.
-
K6 Serpentine Pulley: Pre-installed 6-groove pulley designed for modern serpentine belt systems to handle high torque loads.
-
Isolated Ground: A dedicated ground terminal ensures a clean return path, protecting your engine and sensitive electronics from stray current.
-
Dual Internal Fans: Enhanced cooling design allows for continuous high-output operation in cramped, hot engine compartments.
-
Ignition Protected: Meets USCG, CE, and ISO standards for safe operation in gasoline or diesel engine environments.
Technical Specifications
| Feature | Details |
| Model Number | 621-120-K6 |
| Output / Voltage | 120 Amps / 12 Volts |
| Mounting Style | Single Foot (1" or 2" Spool) |
| Pulley Type | K6 Serpentine (6-Groove) |
| Grounding | Isolated Ground |
| Regulation | Smart Ready® Internal + External P-Type Capable |
| Max RPM | 15,000 RPM |
The Balmar 621-120-K6 is designed as a versatile "drop-in" upgrade, so the box includes the specific hardware needed to adapt the single-foot mount to different engine configurations.
What’s In The Box?
-
1 x Balmar 621-120-K6 Alternator: The 120 Amp, 12V high-output small-case unit.
-
1 x K6 Serpentine Pulley: 6-groove serpentine pulley (pre-installed) for maximum belt traction and reduced wear.
-
1" to 2" Spool Spacer Kit: A critical mounting accessory that allows the single-foot (spool) mount to fit both 1-inch and 2-inch mounting brackets.
-
Isolated Ground Terminal Hardware: Dedicated terminal for a secure, non-engine-grounded electrical return.
-
Smart Ready® Internal Regulator: Pre-installed inside the alternator (acting as a standalone regulator or a backup for external systems).
-
Technical Manual: Comprehensive installation guide, wiring diagrams, and output curves.
-
Mounting Bolt & Hardware Pack: High-grade fasteners for secure installation.
Important Accessories (Sold Separately)
To unlock the full potential of this 120A alternator—especially if you are using AGM or Lithium (LiFePO4) batteries—most installers add the following:
-
Balmar MC-618 External Regulator: For multi-stage "smart" charging.
-
Temperature Sensors: (MC-TS-A for the alternator and MC-TS-B for the batteries) to prevent overheating during high-amp charging cycles.
-
Serpentine Belt Conversion Kit: If your engine currently uses a traditional V-belt, you will need a matching pulley kit for your crank and water pump.
The Balmar Alternator 120 Amp 12V Single Foot with K6 Pulley & Isolated Grounding – 621-120-K6 is an excellent upgrade for boat owners seeking reliable charging performance, improved electrical safety, and long-term durability.
Manufacturer : Balmar
Manufacturer Part No : 621-120-K6
Balmar Alternator 120 Amp 12V 1-2" Single Foot Single K6 Pulley with Isolated Grounding - 621-120-K6 is backordered and will ship as soon as it is back in stock.
