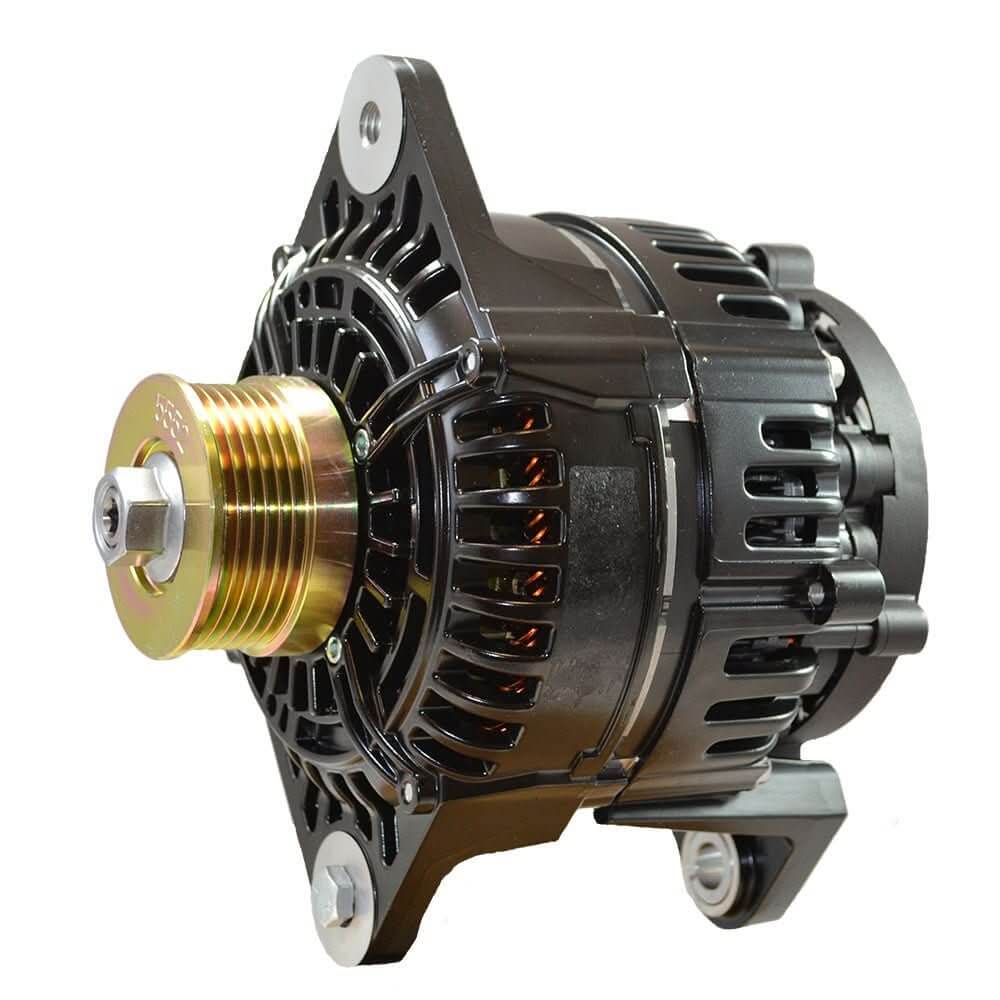

Balmar 97XD Series Alternator * 190 Amp, 24V with K6 Serpentine Pulley - 97XD-24-190
Manufacturer Part #: 97XD-24-190
Couldn't load pickup availability
Balmar 97XD Series Alternator – 190 Amp, 24V with K6 Serpentine Pulley – 97XD-24-190
The Balmar 97XD Series Alternator – 190 Amp, 24 Volt (97XD-24-190) is an extra-heavy-duty, high-output marine alternator engineered for vessels with demanding electrical loads and large 24V battery banks. Designed for continuous, high-amp output, this alternator is ideal for commercial boats, offshore cruisers, trawlers, and power yachts requiring reliable charging power under sustained operation.
Built on Balmar’s 97XD extra-duty frame, this alternator features enhanced thermal management, heavy-gauge windings, and robust internal components to support extended high-output use without overheating. The 190-amp output at 24 volts delivers exceptional charging capacity at cruising RPMs, ensuring efficient recharging of house batteries, inverters, navigation electronics, and onboard systems.
Equipped with a K6 serpentine pulley, the alternator provides improved belt grip, reduced slippage, and quieter operation compared to traditional V-belt systems. The unit is designed for use with external smart regulators, allowing advanced multi-stage charging profiles that maximize battery performance and longevity across AGM, gel, and lithium battery chemistries (with proper regulation).
Constructed with marine-grade, corrosion-resistant materials, the Balmar 97XD Series alternator is built to perform in harsh saltwater environments and is trusted by professional installers and long-range cruisers worldwide.
Key Performance Features
-
Extra-Duty (XD) Construction: Features a larger case and robust internal components designed to dissipate heat more efficiently than "small case" alternatives.
-
190A High-Output: Optimized for 24V systems, providing rapid charging for massive house banks.
-
K6 Serpentine Pulley: Includes a pre-installed 6-groove serpentine pulley for superior belt grip and power transmission.
-
Isolated Ground: Prevents stray current and protects your engine block from galvanic corrosion.
-
External Regulation Required: Designed to be paired with the Balmar MC-620 Multi-Stage Regulator for precise, safe charging of advanced battery chemistries.
-
Dual-Foot Saddle Mount: Heavy-duty 4-inch (ID) mount provides a stable, vibration-resistant foundation for high-torque operation.
Technical Specifications
| Feature | Details |
| Model Number | 97XD-24-190 |
| Output / Voltage | 190 Amps / 24 Volts |
| Mounting Style | Dual Foot (Saddle Mount) 4.0" ID |
| Pulley Type | K6 Serpentine (6-Groove) |
| Grounding | Isolated Ground |
| Cooling | Dual High-Efficiency Internal Fans |
| Compliance | USCG Title 33, ISO 8846, SAE J1171 |
What’s In The Box?
-
1 x Balmar 97XD-24-190 Alternator: The 24V, 190A extra-large case unit.
-
1 x K6 Serpentine Pulley: A 6-groove serpentine pulley (pre-installed) designed for maximum belt traction.
-
1 x Integrated Temperature Sensor Port: Ready for use with Balmar external regulator sensors to prevent overheating.
-
Mounting Hardware Kit: Includes the high-tensile strength bolts and spacers necessary for the 4" saddle mount configuration.
-
Isolated Ground Terminal: Heavy-duty terminal post for a dedicated ground return.
-
Technical Manual & Installation Guide: Detailed wiring diagrams and output curves specific to the 97XD series.
Crucial "Not Included" Items
Because this is a professional-grade system, there are two items required for operation that are typically sold separately:
-
External Regulator: This alternator does not have an internal regulator. You will need a Balmar MC-620 (24V) to operate the unit.
-
Temperature Sensors: To protect your investment, it is highly recommended to use the MC-TS-A (Alternator Temp Sensor) and MC-TS-B (Battery Temp Sensor) with your regulator.
Would you like me to create a "Technical Requirements" checklist? This would help your customers understand exactly which regulator and cable gauge they need to purchase alongside this alternator to avoid installation delays.
Important Installation Note: Due to the extreme power output of this unit, it requires the use of a high-quality external regulator (like the Balmar MC-620) and appropriately sized heavy-gauge cabling.
The Balmar 97XD Series Alternator – 190 Amp, 24V with K6 Serpentine Pulley – 97XD-24-190 is the perfect solution for boat owners and professionals who require maximum charging power, durability, and reliability in demanding marine electrical systems.
Manufacturer Part Number: 97XD-24-190
Balmar 97XD Series Alternator * 190 Amp, 24V with K6 Serpentine Pulley - 97XD-24-190 is backordered and will ship as soon as it is back in stock.
