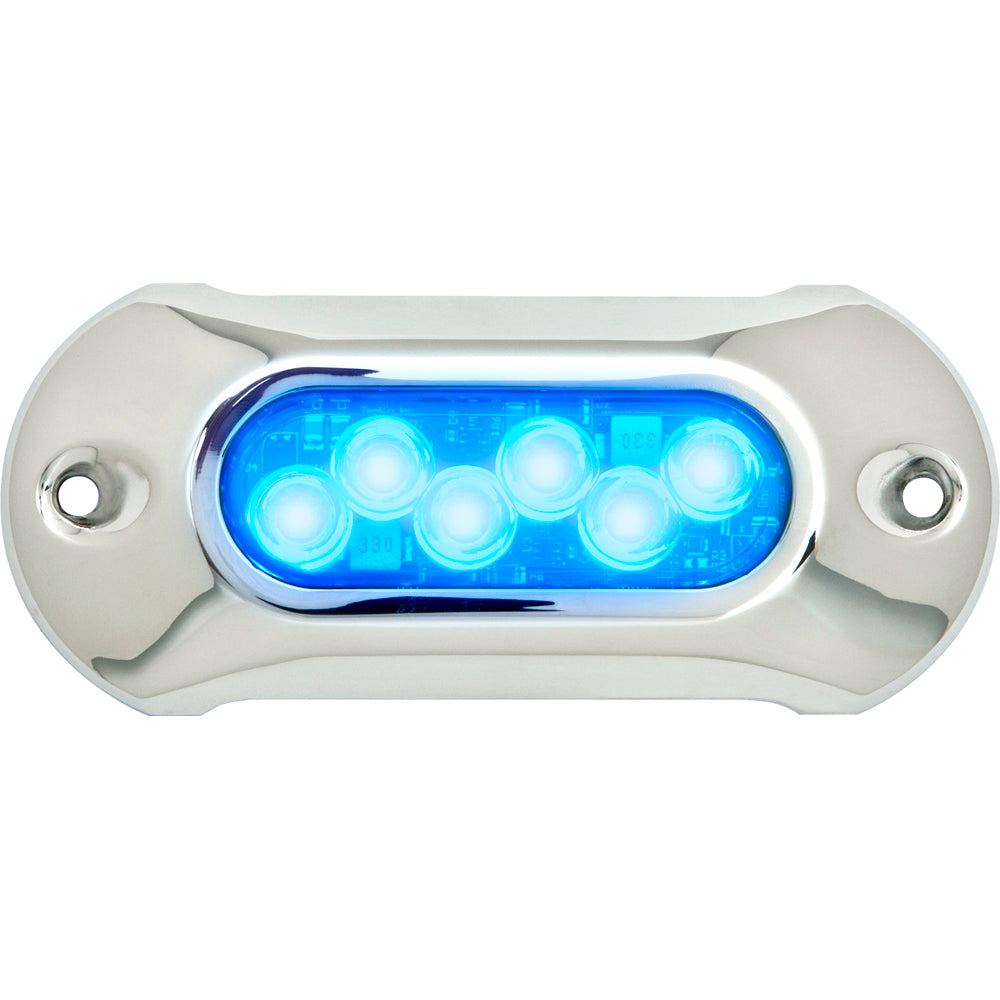

Attwood Light Armor Underwater LED Light - 6 LEDs - Blue - 65UW06B-7

Attwood LightArmor Underwater LED Light – 6 LEDs – Blue (65UW06B-7)

The Attwood LightArmor 65UW06B-7 is a premium surface-mount underwater LED light designed to deliver powerful illumination, long-term durability, and efficient performance in harsh marine environments. Built with advanced engineering and marine-grade materials, this light is ideal for boaters looking to enhance both aesthetics and nighttime visibility.

Key Features & Benefits

• Intelligent Thermal Management: Features an exclusive Heat-Sync Cooling System with active overheat protection, ensuring the LEDs maintain peak performance without risk of heat damage.

• Rugged 316 Stainless Steel: The electro-polished 316 stainless steel cover provides a sleek, low-profile look that is highly resistant to corrosion, chemicals, and UV damage.

• Extreme Durability: Built with an impact-resistant lens and fully-sealed waterproof electronics, this light is designed to thrive in the harshest saltwater environments.

• Easy Surface Mount Installation: Designed for simple installation with minimal hardware, requiring only a small hole for the 3-foot sheathed wire and basic mounting screws.

• Reliable Power Protection: Includes integrated reverse polarity protection to prevent electrical damage during installation or maintenance.

In the Box

• Attwood LightArmor 65UW06B-7 LED Light Engine

• 316 Stainless Steel Cover (Standard in aftermarket packaging)

• 3-Foot Sheathed Power Wire

• Mounting Hardware Kit

• Installation Guide

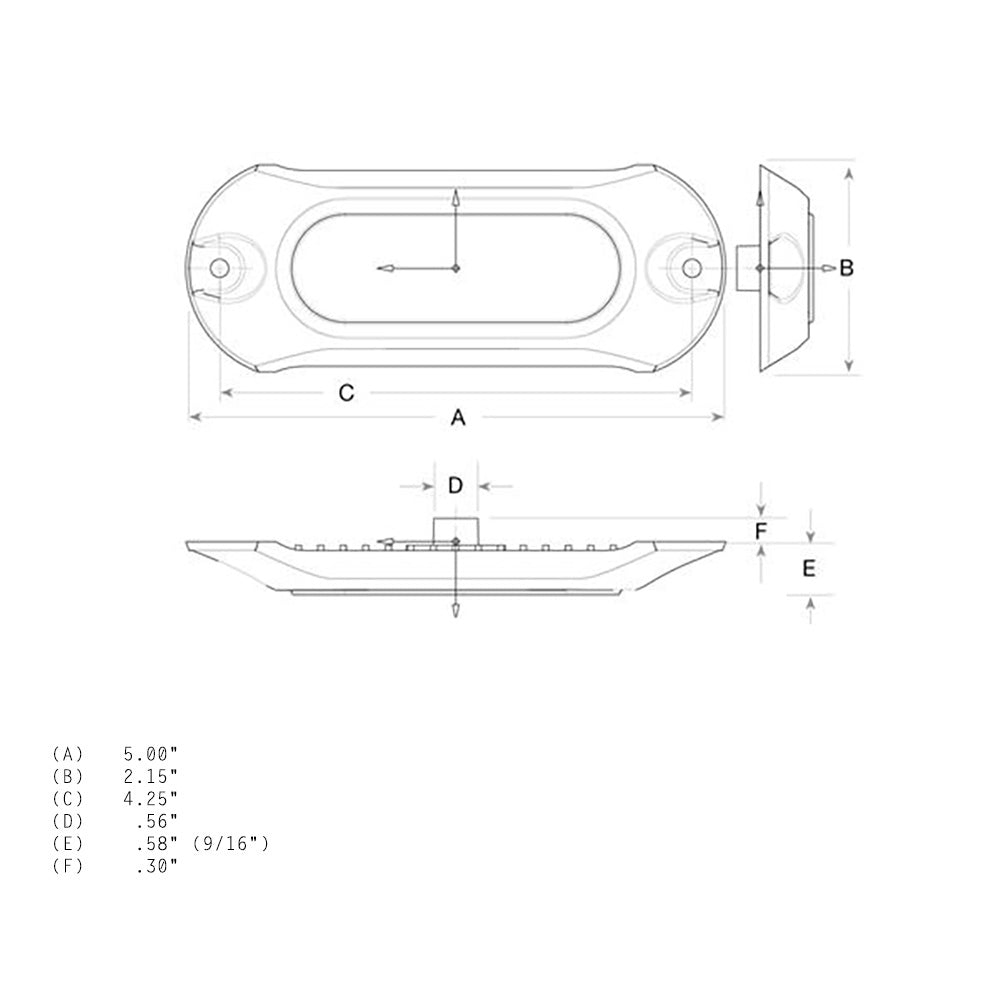

Dimensions

• Length (A): 5.00" (127 mm)

• Width (B): 2.15" (55 mm)

• Depth/Height (E): 0.56" (14 mm) installed profile

• Mounting Hole Distance (C): 4.25" (108 mm)

High-Output Underwater Illumination

Equipped with 6 high-performance LEDs, this unit produces bright, vibrant blue lighting that enhances underwater visibility and creates a striking visual effect around your vessel.

• Output: ~1350–1650 lumens

• Wide beam spread for full transom illumination

• Ideal for night cruising, docking, and attracting fish

Built for Extreme Marine Conditions

The LightArmor series is engineered specifically for durability in saltwater environments.

• Electro-polished 316 stainless steel housing for corrosion resistance

• مقاوم to saltwater, UV exposure, and chemicals

• Impact-resistant lens protects against debris and marine wear

This makes it suitable for both freshwater and offshore use.

Advanced Heat Management System

One of the standout features is Attwood’s exclusive Heat-Sync cooling system, designed to prevent overheating and extend LED lifespan.

• Active thermal protection system

• Maintains consistent brightness during extended use

• Increases overall reliability and longevity

Fully Sealed & Waterproof Design

This light is completely sealed to protect internal electronics from water intrusion.

• Fully sealed waterproof electronics

• Designed for continuous underwater operation

• Reverse polarity protection for electrical safety

Efficient Multi-Voltage Operation

Compatible with a wide range of marine electrical systems:

• 12V / 24V DC operation

• Low current draw (approx. 0.66A @ 12V)

• Energy-efficient performance for extended runtime

Compact, Low-Profile Design

Designed for minimal drag and clean installation:

• Dimensions: 5.0" L × 2.15" W × 0.56" H

• Low-profile (<1") reduces drag and improves aesthetics

• Surface-mount installation with minimal hardware

🔧Easy Installation

• Surface-mount design for transom or hull

• Minimal drilling required

• Pre-wired with 3 ft sheathed marine cable

• Mounting hole spacing: ~4.25" center-to-center

Ideal Applications

• Transom lighting on center consoles and sport boats

• Swim platforms and stern areas

• Night fishing and fish attraction

• Dockside ambient lighting

• Underwater accent lighting for aesthetics

Why Choose the Attwood LightArmor 6-LED Light?

The Attwood 65UW06B-7 stands out for combining high lumen output, advanced cooling technology, and rugged stainless construction in a compact form factor. With its low-profile design and long lifespan, it’s a reliable, high-performance upgrade for any boat looking to improve both functionality and visual appeal.
