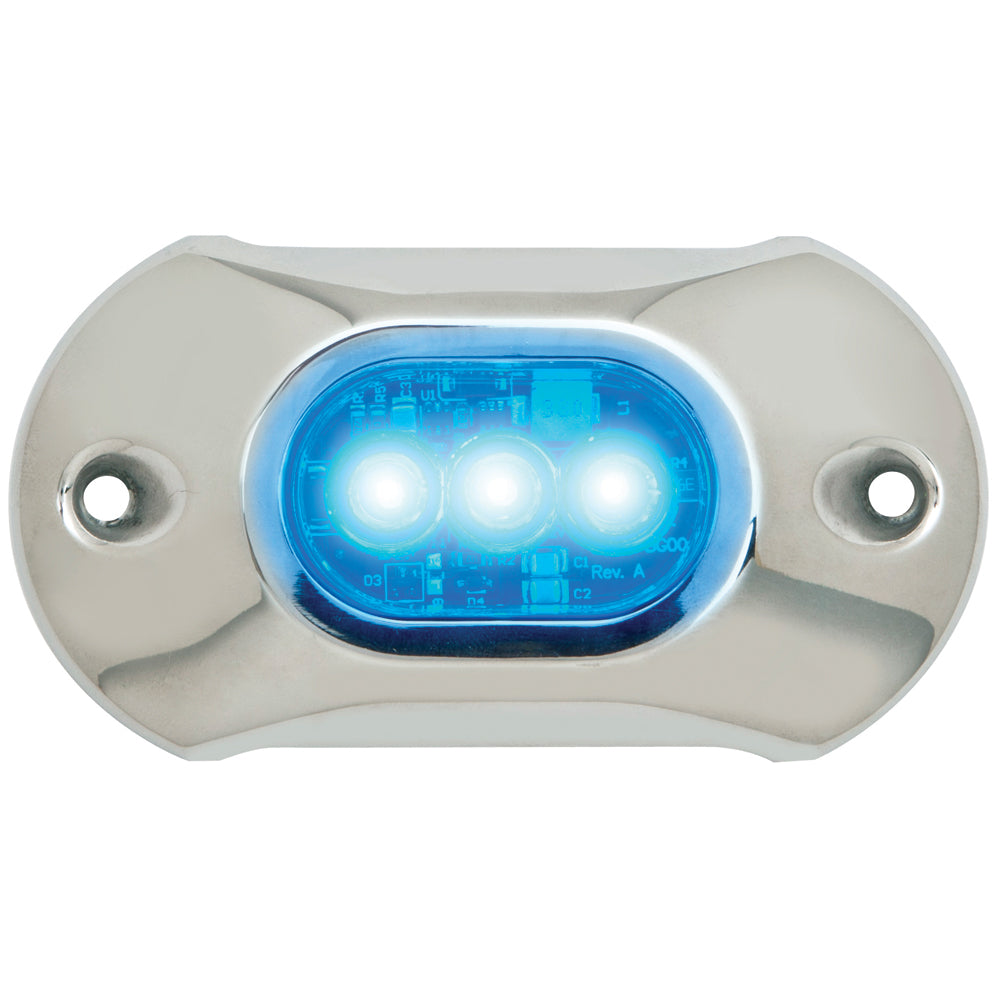

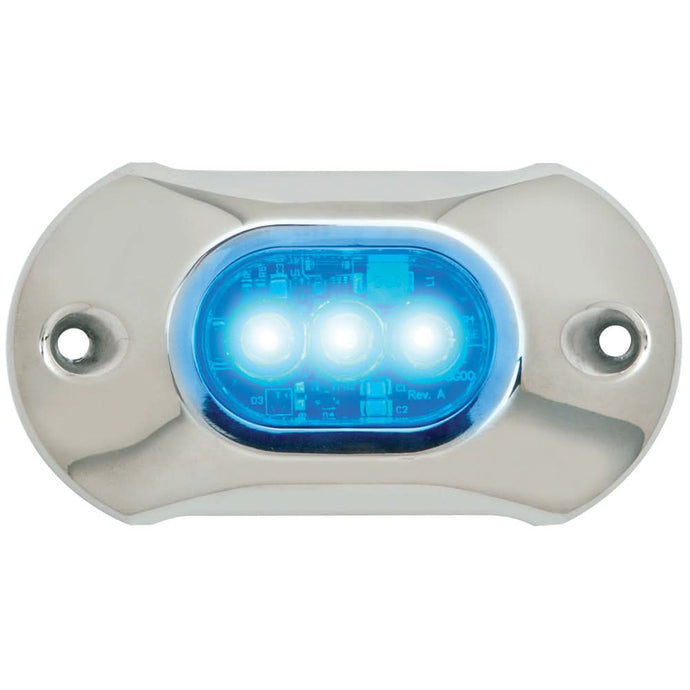

Attwood Light Armor Underwater LED Light - 3 LEDs - Blue - 65UW03B-7
Manufacturer Part #: 65UW03B-7
Couldn't load pickup availability
Attwood Light Armor Underwater LED Light – Blue – 65UW03B-7
Enhance your boat’s appearance and nighttime visibility with the Attwood Light Armor Underwater LED Light. Designed for durability and performance, this compact underwater light features three high-output blue LEDs that create a striking glow while improving visibility around your vessel.
Built with marine-grade, corrosion-resistant materials, the Light Armor series is engineered to withstand harsh saltwater and freshwater environments. Its low-profile design allows for easy transom mounting, making it an excellent upgrade for boats of all sizes.
Energy-efficient LED technology provides long service life with minimal power draw, making this underwater light ideal for cruising, dockside illumination, and nighttime ambiance.
Key Performance Features
-
Intense 800 Lumens: Provides a wide, brilliant underwater beam that transforms your boat's nighttime aesthetic.
-
Dual Voltage Compatibility: Operates seamlessly on both 12V and 24V DC systems.
-
Heavy-Duty Construction: Features an electro-polished 316 stainless steel cover that is resistant to corrosion, chemicals, and UV damage.
-
Active Overheat Protection: An internal thermal management system automatically dims the light if it gets too hot, preventing permanent damage to the LEDs.
-
Impact-Resistant Lens: The thick, clear lens is designed to withstand significant pressure and accidental strikes.
-
Fully Sealed Electronics: The unit is completely potted (sealed in resin) to be 100% waterproof and vibration-proof.
Technical Specifications
| Feature | Details |
| Model Number | 65UW03B-7 |
| LED Color | Sapphire Blue |
| Output | 800 Fixture Lumens |

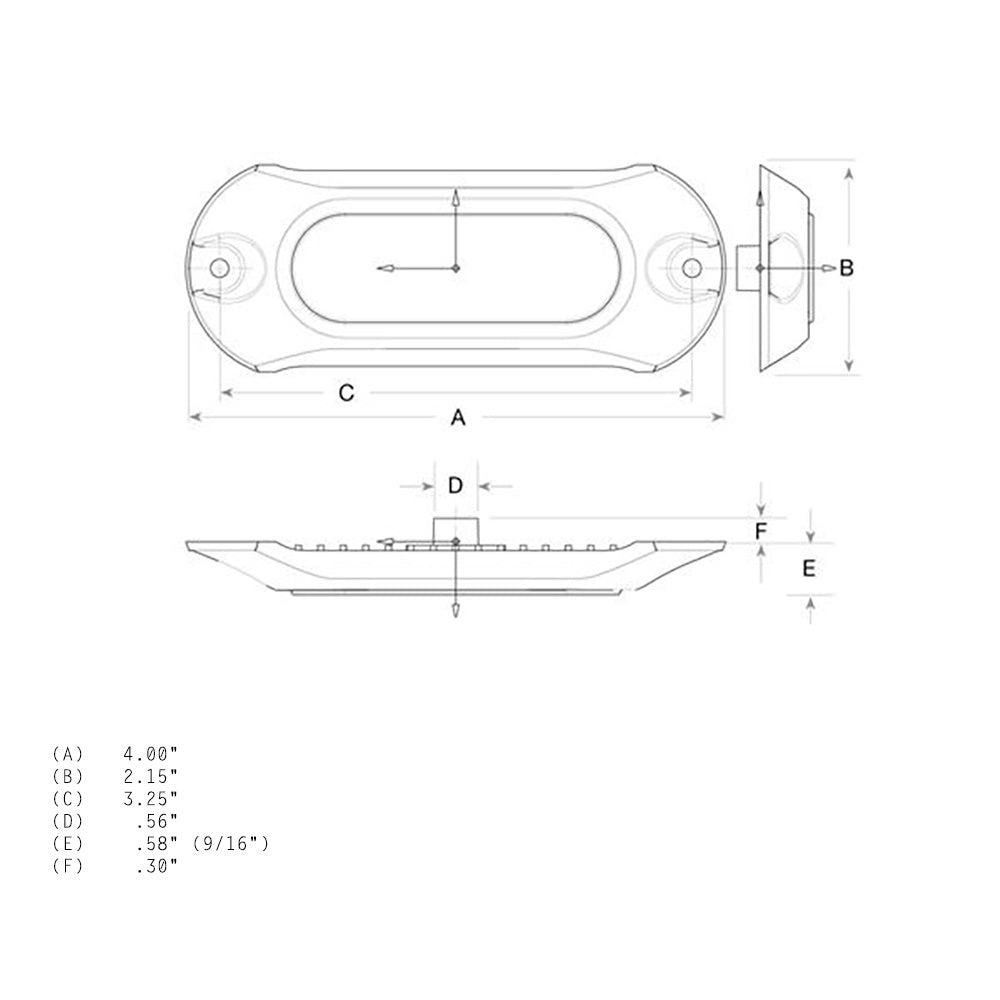

| Dimensions | 4.0" L x 2.15" W x 0.59" H |
| Current Draw (13.6V) | 0.32 Amps |
| Current Draw (24V) | 0.16 Amps |
| Warranty | Industry-leading 10-Year Limited Warranty |
Installation & Maintenance Tips
-
Mounting Depth: For the best visual effect, Attwood recommends mounting these lights at least 10 inches (25 cm) below the waterline.
-
Underwater Use Only: These lights are designed to be water-cooled. Do not operate them out of the water for more than a few seconds, as they can overheat quickly without the surrounding water to dissipate heat.
-
Sealing the Hull: Use a high-quality marine sealant (like Sikaflex 291) in the 9/16" wire clearance hole and around the #8 mounting screws to ensure a watertight seal.
-
Wiring: Always use marine-grade tinned wire and heat-shrink connectors. This model features reverse polarity protection, so it won't be damaged if the wires are accidentally swapped during installation.
Attwood LightArmor Underwater LED (65UW03B-7)
-
1 x LED Light Assembly with integrated 316 stainless steel cover.
-
3-foot Tinned Wire Lead (pre-installed/potted into the light).
-
2 x #8 Stainless Steel Mounting Screws.
-
1 x Mounting Gasket/Template.
-
Installation Instructions.
Ideal For
-
Underwater transom lighting
-
Nighttime boating and docking visibility
-
Enhancing boat appearance and ambiance
-
Recreational and performance boats
Upgrade your boat’s lighting with the Attwood Light Armor Underwater LED Light – Blue, delivering reliable performance, sleek styling, and eye-catching illumination below the waterline.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Attwood Light Armor Underwater LED Light - 3 LEDs - Blue - 65UW03B-7 is backordered and will ship as soon as it is back in stock.
