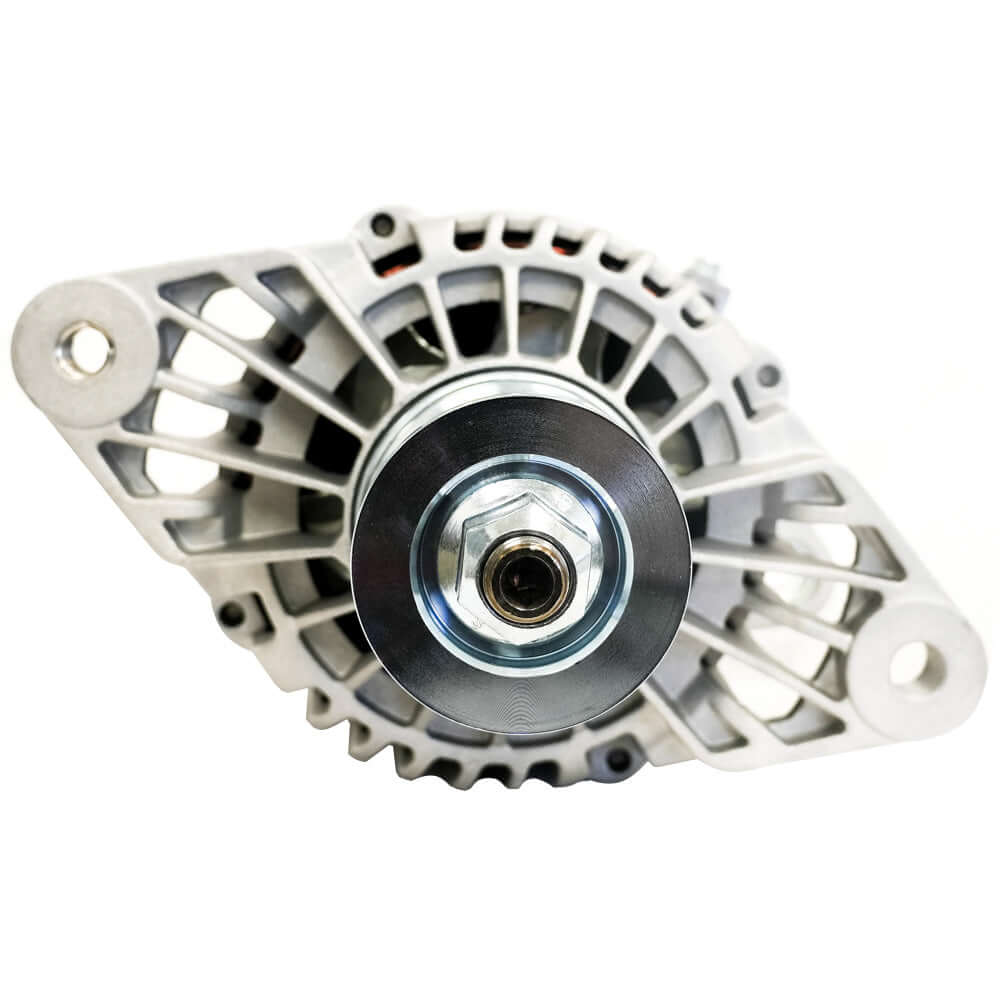

ARCO Marine Zeus A220/3000W 12V HD High Output Alternator - J180 Mount - 4043

ARCO Marine Zeus A220/3000W 12V HD High Output Alternator – J180 Mount (4043)

The ARCO Marine Zeus A220/3000W (4043) is a next-generation high-output, heavy-duty alternator engineered for serious marine, diesel, and high-load electrical systems. Designed to deliver exceptional charging power and sustained performance, this alternator is ideal for vessels running large battery banks, inverters, and modern onboard electronics.

Key Features & Benefits

• Massive Power Delivery: Capable of producing 220 Amps, providing the high-wattage output necessary for charging LiFePO4 battery banks and running power-hungry marine systems.

• Heavy-Duty J180 Mount: Features a rugged J180 dual-lug mount for maximum stability and reduced vibration in high-torque engine environments.

• Superior Thermal Management: Built with high-grade components and an optimized cooling design to maintain peak efficiency even under sustained heavy loads.

• Zeus Series Intelligence: Designed for seamless integration with external regulators, allowing for precise charging profiles and battery temperature monitoring.

• Marine-Grade Build: Every unit is precision-engineered with corrosion-resistant coatings and sealed bearings to withstand the rigorous salt-air environment.

In the Box

• ARCO Marine Zeus A220 High Output Alternator

• Installation Hardware Kit

• Terminal Protective Boots

• Quality Control Performance Curve Certificate

• Installation & Wiring Guide

Dimensions

• Mounting Type: J180 Dual Lug (Standard 4-inch spacing)

• Shaft Diameter: 7/8" (22.2 mm)

• Overall Length: Approx. 9.5" including shaft

• Housing Diameter: Approx. 6.6"

High Output Charging Power

The Zeus A220 delivers industry-leading output, making it perfect for energy-demanding systems:

• Max Output (Cold): 249 amps

• Sustained Output (Cruising): 228 amps @ 6,000 RPM

• Sustained Output (Idle): 200 amps @ 3,000 RPM

This allows for rapid battery charging, reducing engine runtime and improving overall system efficiency.

Designed for Large Battery Banks

Built to support modern electrical demands, the Zeus alternator is ideal for:

• Lithium (LiFePO4) battery systems

• AGM and deep-cycle banks

• High inverter loads

• House + start battery setups

Its high-energy output can even reduce reliance on onboard generators, producing more usable power directly from your engine .

🌡️ Advanced Cooling for Extended Duty

The Zeus series is engineered for continuous operation under heavy loads:

• Dual internal cooling fans

• Cooler operating temperatures for longer lifespan

• Stable output during extended run times

This makes it ideal for liveaboard, offshore, and commercial applications.

External Regulation for Smart Charging

This model is externally regulated only, allowing full control over charging profiles:

• Compatible with ARCO Zeus Bluetooth regulator

• Optimized charging for lithium and advanced battery chemistries

• Real-time monitoring and system integration

Key Specifications

• Model: 4043

• Mount Type: J180 (4” mount)

• Voltage: 12V

• Max Output: 249A (cold)

• Sustained Output: 228A (cruise), 200A (idle)

• Cut-In RPM: 1,288

• Max Alternator RPM: 10,000

• Pulley: K8 59mm

• Shaft Diameter: 7/8” (22.22 mm)

• Weight: 18.7 lbs

• Regulation: External only (EX)

• Certifications: SAE J1171 compliant

Ideal Applications

• Offshore and cruising vessels

• Yachts with large house battery banks

• Commercial and workboats

• RV and overland electrical systems

• Boats upgrading from generators to alternator charging

Why Choose the ARCO Zeus A220?

The ARCO Zeus A220/3000W stands out as one of the most powerful alternators in its class, delivering high amperage at both idle and cruising speeds, while maintaining cooler operation and long-term reliability. It’s a top-tier solution for boaters who need serious charging performance, efficiency, and system control.
