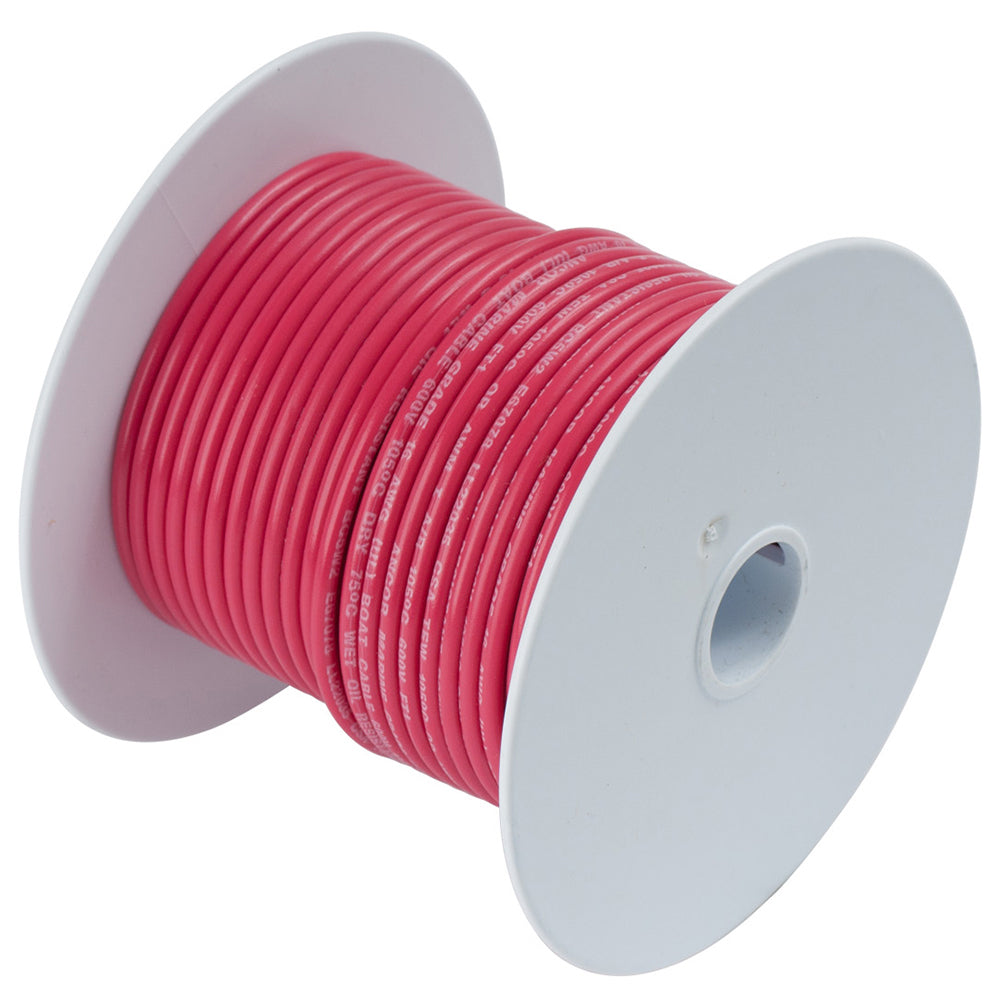

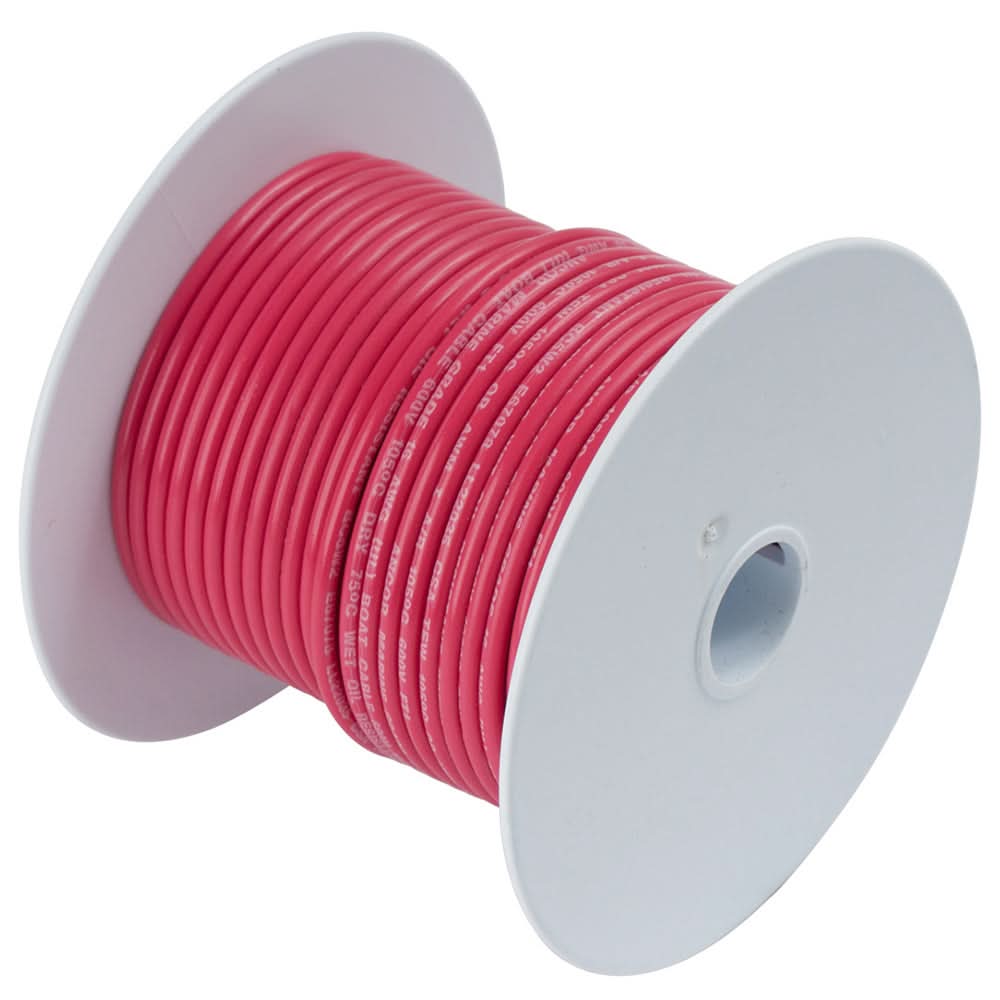

Ancor Red 2/0 AWG Battery Cable - 100' - 117510

Ancor Red 2/0 AWG Battery Cable – 100' (117510)

The Ancor 117510 Red 2/0 AWG Battery Cable is a premium marine-grade power cable built for high-current applications requiring durability, flexibility, and long-term reliability. Designed for demanding environments, it is ideal for battery connections, inverters, and marine electrical systems.

Constructed from ultra-flexible Type 3 tinned copper stranding, this cable provides maximum protection against corrosion and electrolysis, ensuring dependable performance in harsh saltwater conditions. It also resists fatigue caused by vibration and repeated flexing, making it perfect for marine and mobile installations.

The cable features premium marine-grade vinyl insulation that remains flexible even in extreme cold and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and UV exposure.  Rated for 600V, 105°C dry and 75°C wet, it ensures safe and consistent performance across a wide range of conditions.

Meeting or exceeding UL 1426, ABYC, and US Coast Guard standards, this cable provides safe, compliant installation for marine and industrial applications.

Supplied as a 100-foot spool, it allows for flexible, custom-length installations across a variety of electrical setups.

Key Technology & Performance

• Corrosion Protection: Manufactured with high-quality tinned copper stranding that provides maximum protection against corrosion and electrolysis, ensuring a longer life for your electrical system.

• Extreme Flexibility: Utilizes Type 3 stranding, which is ultra-flexible to resist fatigue and cracking caused by constant engine vibration and hull flexing.

• Premium Insulation: The proprietary vinyl insulation is rated for 600 Volts and remains flexible in extreme cold (down to -40°F/C). It is highly resistant to salt water, battery acid, oil, gasoline, heat, and UV radiation.

• Safety Standards: This cable exceeds UL 1426, ABYC, and US Coast Guard Charter Boat (CFR Title 46) standards, making it suitable for both recreational and commercial marine use.

Key Features

• 2/0 AWG marine-grade battery cable for high-current systems

• Tinned copper conductors for superior corrosion resistance

• Ultra-flexible Type 3 stranding resists vibration fatigue

• Durable vinyl insulation resistant to chemicals and UV

• Rated for 600V / 105°C dry / 75°C wet

• Meets UL 1426, ABYC, and USCG standards

• Ideal for marine, RV, and industrial electrical systems

• Supplied in 100 ft spool for custom installations

Specifications

• Brand: Ancor

• Part Number: 117510

• Cable Type: Battery Cable

• Gauge: 2/0 AWG

• Length: 100 ft

• Conductor: Tinned Copper

• Insulation: Marine-grade PVC

• Color: Red

• Voltage Rating: 600V

• Temperature Rating: 105°C (dry) / 75°C (wet)

• Application: Battery connections, power distribution, marine wiring

Ensure reliable, long-lasting power delivery with the Ancor 2/0 AWG Red Battery Cable, built to handle demanding marine environments with superior flexibility and corrosion resistance.

Installation Tip: To ensure a reliable, high-current connection, always use tinned copper lugs and adhesive-lined heat shrink. For the negative (ground) side of your circuit, the matching Ancor Black 2/0 AWG cable (117010) should be used to maintain color-coded safety standards.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Ancor
Manufacturer Part No : 117510
UPC : 091887117547
