Ancor Black 2 AWG Battery Cable - 100' - 114010

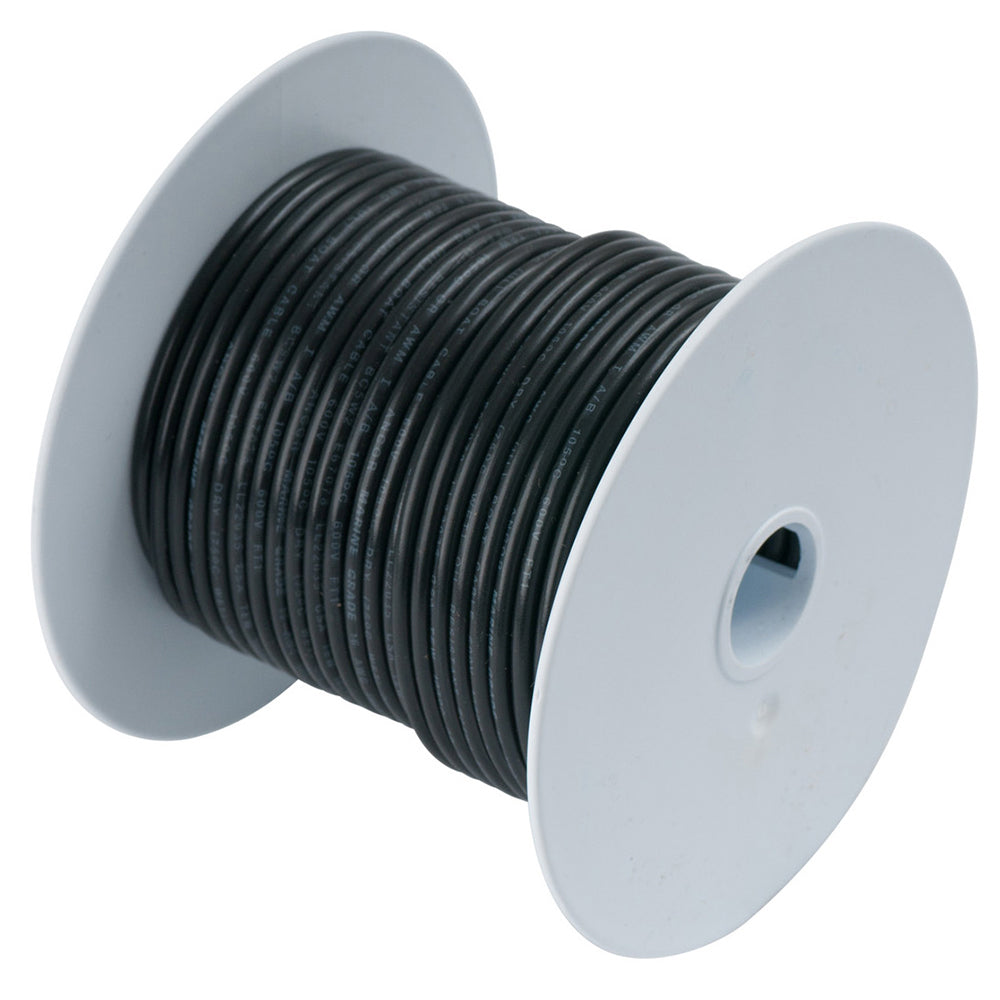

Ancor Black 2 AWG Battery Cable – 100' (114010)

The Ancor 114010 Black 2 AWG Battery Cable is a premium marine-grade power cable designed for reliable performance in high-current electrical systems. Built for durability and flexibility, it is ideal for battery connections, power distribution, and marine electrical installations.

Constructed with ultra-flexible Type 3 tinned copper stranding, this cable provides maximum protection against corrosion and electrolysis, ensuring long-lasting performance in harsh saltwater environments. It also resists fatigue caused by vibration and movement, making it ideal for marine and mobile applications.

The cable features high-quality marine-grade vinyl insulation that remains flexible even in extreme cold and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and UV exposure. Rated for 600V, 105°C dry and 75°C wet, it delivers consistent performance across a wide range of conditions.

Designed to meet or exceed UL 1426, ABYC, and US Coast Guard standards, this cable ensures safe, compliant installation for marine and industrial use. Supplied in a 100-foot spool, it provides flexibility for custom-length installations.

Key Technology & Performance

• Marine-Grade Corrosion Resistance: Built with high-quality tinned copper stranding that provides a robust barrier against the harsh elements that cause corrosion and electrolysis in saltwater environments.

• Type 3 Ultra-Flexibility: Features Type 3 stranding (665 strands of 30 AWG wire), allowing the cable to resist fatigue and cracking caused by constant vessel vibration and hull flexing.

• Premium Vinyl Insulation: The proprietary jacket is rated for 600 Volts and remains pliable in extreme cold (down to -40°F/C). It is highly resistant to salt water, battery acid, oil, gasoline, heat, and UV radiation.

• Safety Certified: Fully exceeds UL 1426, ABYC, and US Coast Guard Charter Boat (CFR Title 46) standards, ensuring it meets the most rigorous safety requirements for permanent marine installations.

Key Features

• 2 AWG marine-grade battery cable for high-current systems

• Tinned copper conductors for superior corrosion resistance

• Ultra-flexible Type 3 stranding resists vibration fatigue

• Durable vinyl insulation resistant to chemicals and UV

• Rated for 600V / 105°C dry / 75°C wet

• Meets UL 1426, ABYC, and USCG standards

• Ideal for marine, RV, and industrial electrical systems

• Supplied in 100 ft spool for custom installations

Specifications

• Brand: Ancor

• Part Number: 114010

• Cable Type: Battery Cable

• Gauge: 2 AWG

• Length: 100 ft

• Conductor: Tinned Copper

• Insulation: Marine-grade PVC

• Color: Black

• Voltage Rating: 600V

• Temperature Rating: 105°C (dry) / 75°C (wet)

• Application: Battery connections, power distribution, marine wiring

Ensure dependable power delivery with the Ancor 2 AWG Battery Cable, built for flexibility, durability, and long-term performance in demanding marine environments.

Installation Tip: To ensure a 100% watertight connection, use Ancor tinned copper lugs sized for 2 AWG cable and seal the transition with adhesive-lined heat shrink tubing. This prevents moisture from wicking into the strands, which can lead to internal corrosion and electrical resistance over time.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Ancor
Manufacturer Part No : 114010
UPC : 091887113785
