Ancor Black 2/0 AWG Battery Cable - 100' - 117010

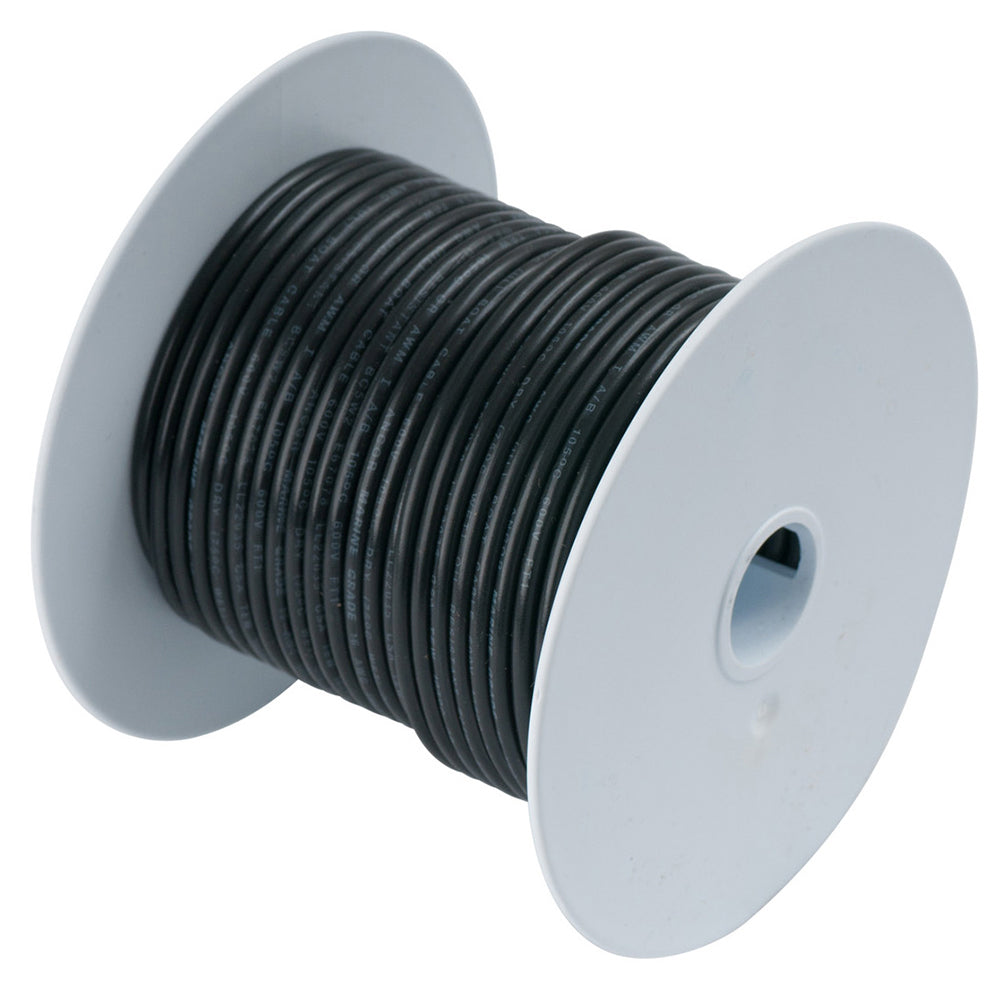

Ancor Black 2/0 AWG Battery Cable – 100' (117010)

The Ancor 117010 Black 2/0 AWG Battery Cable is a premium marine-grade power cable engineered for maximum durability, flexibility, and corrosion resistance in demanding environments. Designed for high-current applications, it is ideal for battery connections, inverters, and marine electrical systems.

Constructed with ultra-flexible Type 3 tinned copper stranding, this cable provides superior protection against corrosion and electrolysis, ensuring long-lasting performance even in harsh saltwater conditions.  The flexible design also resists fatigue from vibration and movement, making it perfect for marine and mobile installations.

The cable features premium vinyl insulation that remains flexible in extreme cold and is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and UV exposure.  Rated for 600V, 105°C dry and 75°C wet, it delivers reliable performance across a wide range of operating conditions.

Meeting or exceeding UL 1426, ABYC, and US Coast Guard standards, this cable ensures safe and compliant installation for marine and industrial use.

Supplied as a 100-foot spool, it allows for custom-length installations and flexibility across various wiring projects.

Key Technology & Performance

• Marine-Grade Construction: Manufactured from high-quality tinned copper stranding, which provides superior protection against corrosion and electrolysis compared to standard bare copper wire.

• Ultra-Flexible Stranding: Features Type 3 stranding, which is exceptionally flexible to resist fatigue caused by the constant vibration and flexing common in boating applications.

• Premium Insulation: The proprietary vinyl insulation is rated for 600 Volts and remains flexible even in extreme cold (down to -40°F/C). It is resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and UV radiation.

• Safety Certified: This cable exceeds UL 1426, ABYC, and US Coast Guard Charter Boat (CFR Title 46) standards, ensuring it meets the most rigorous safety requirements for marine electrical systems.

Key Features

• 2/0 AWG marine-grade battery cable for high-current applications

• Tinned copper stranding for superior corrosion resistance

• Ultra-flexible Type 3 construction resists vibration fatigue

• Durable vinyl insulation resistant to chemicals and UV

• Rated for 600V / 105°C dry / 75°C wet

• Meets UL 1426, ABYC, and USCG standards

• Ideal for marine, RV, and industrial electrical systems

• Supplied in 100 ft spool for custom installations

Specifications

• Brand: Ancor

• Part Number: 117010

• Cable Type: Battery Cable

• Gauge: 2/0 AWG

• Length: 100 ft

• Conductor: Tinned Copper

• Insulation: Marine-grade PVC

• Color: Black

• Voltage Rating: 600V

• Temperature Rating: 105°C (dry) / 75°C (wet)

• Application: Battery connections, power distribution, marine wiring

Ensure reliable, long-lasting power delivery with the Ancor 2/0 AWG Battery Cable, built to handle demanding marine environments with superior flexibility and corrosion resistance.

Installation Tip: When terminating this heavy-gauge cable, always use Ancor tinned copper lugs and adhesive-lined heat shrink tubing. This combination creates a 100% waterproof seal that prevents moisture from wicking into the cable strands, which is the leading cause of cable failure in marine environments.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Ancor
Manufacturer Part No : 117010
UPC : 091887117509
