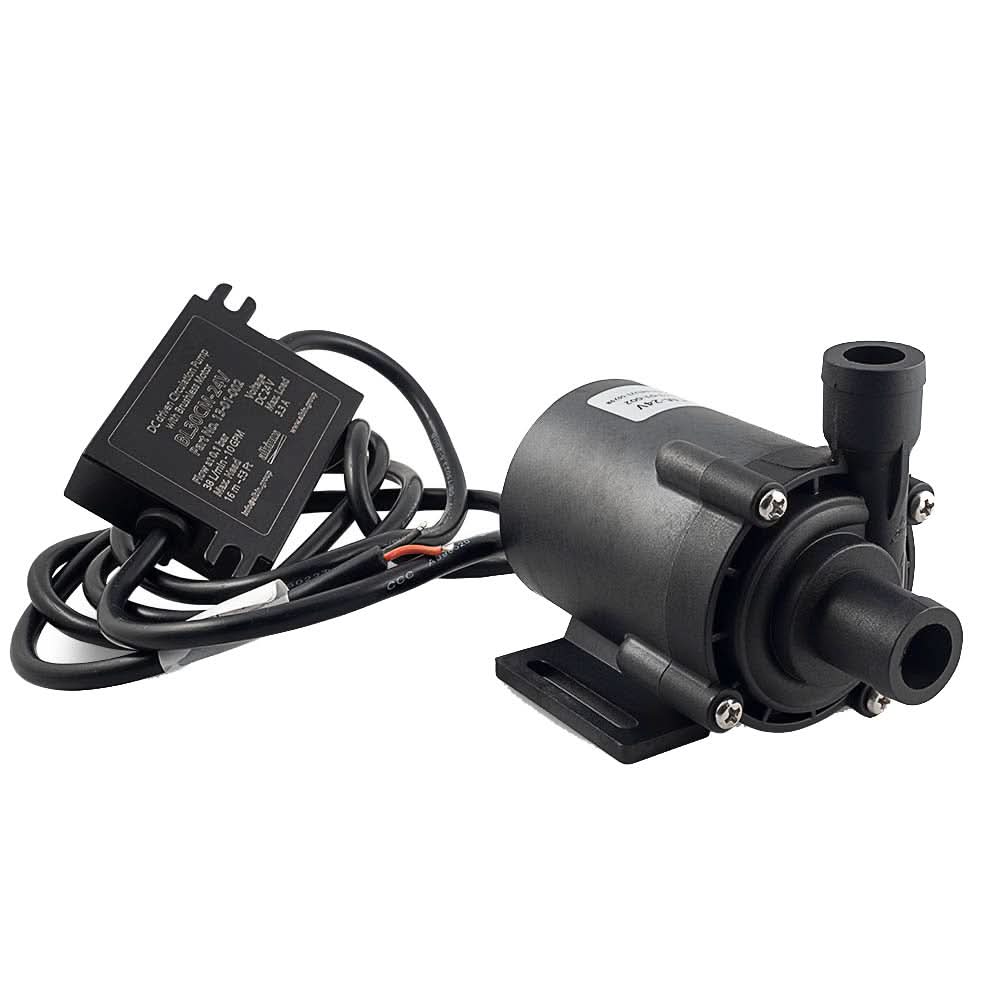

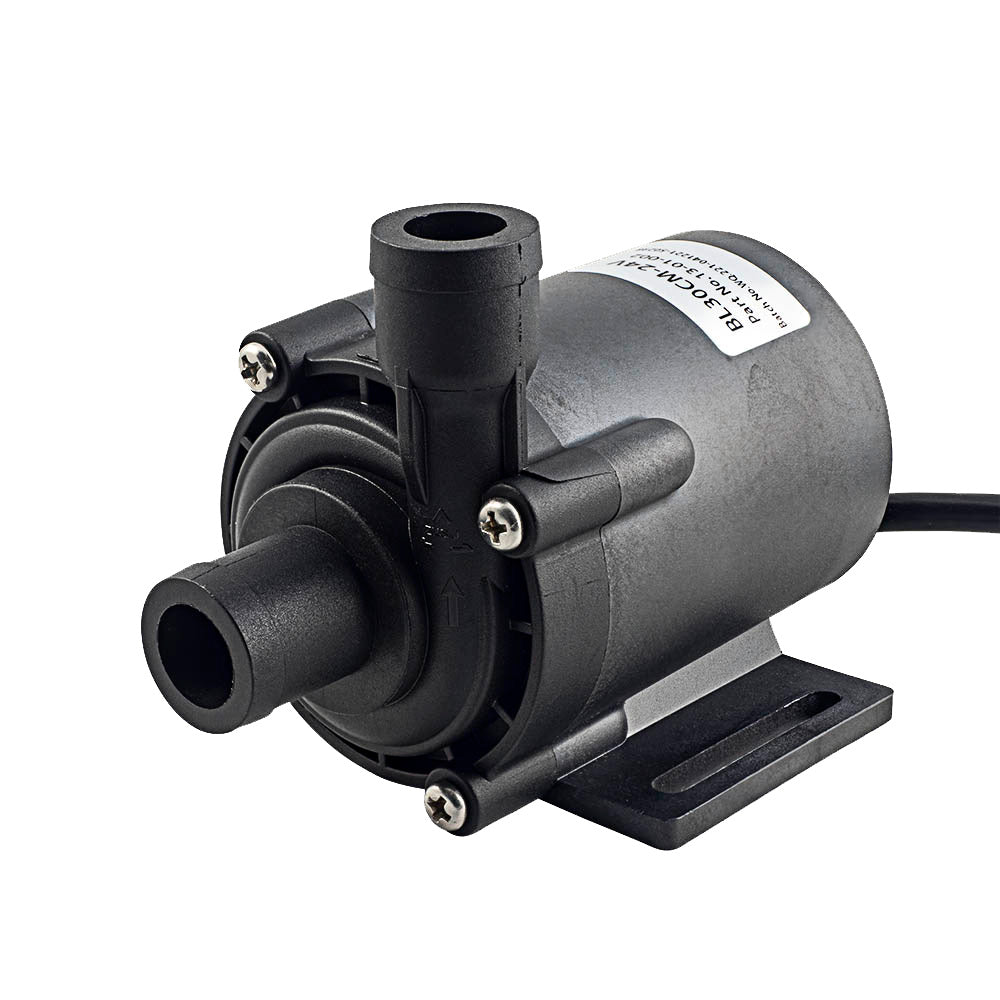

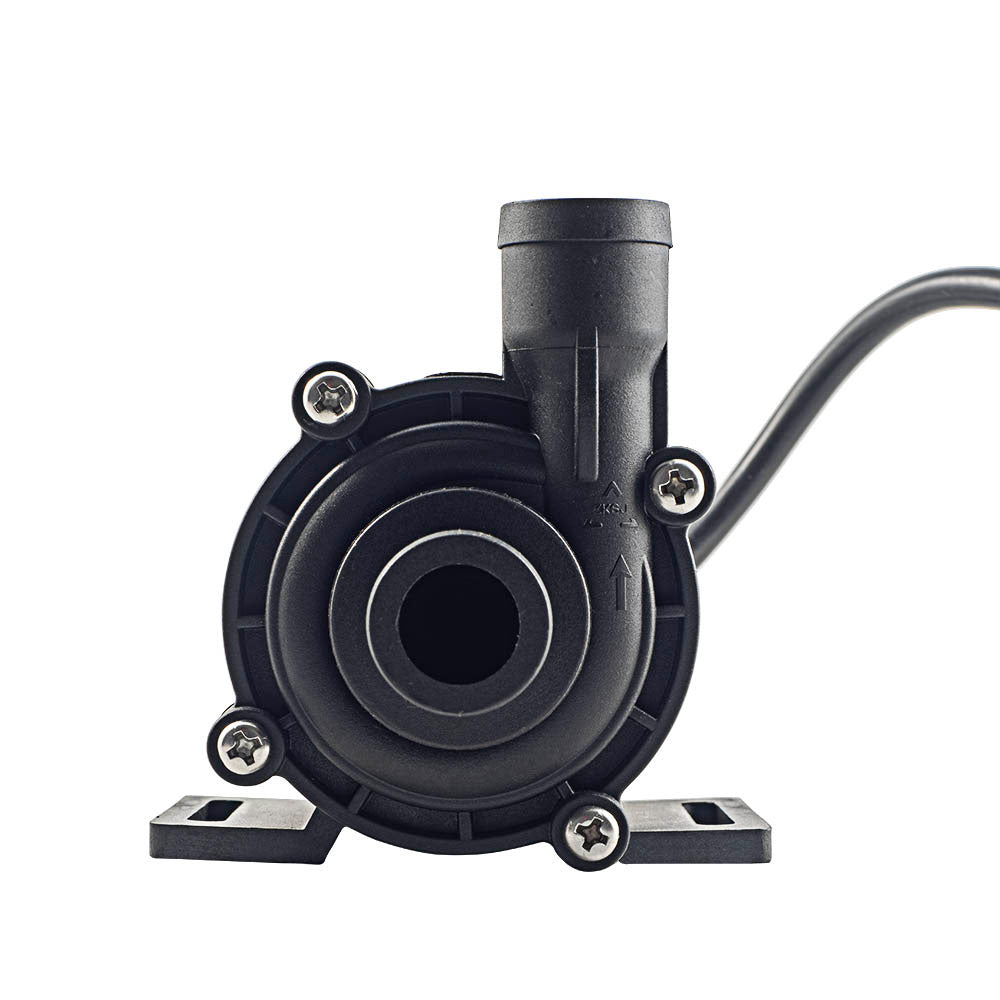

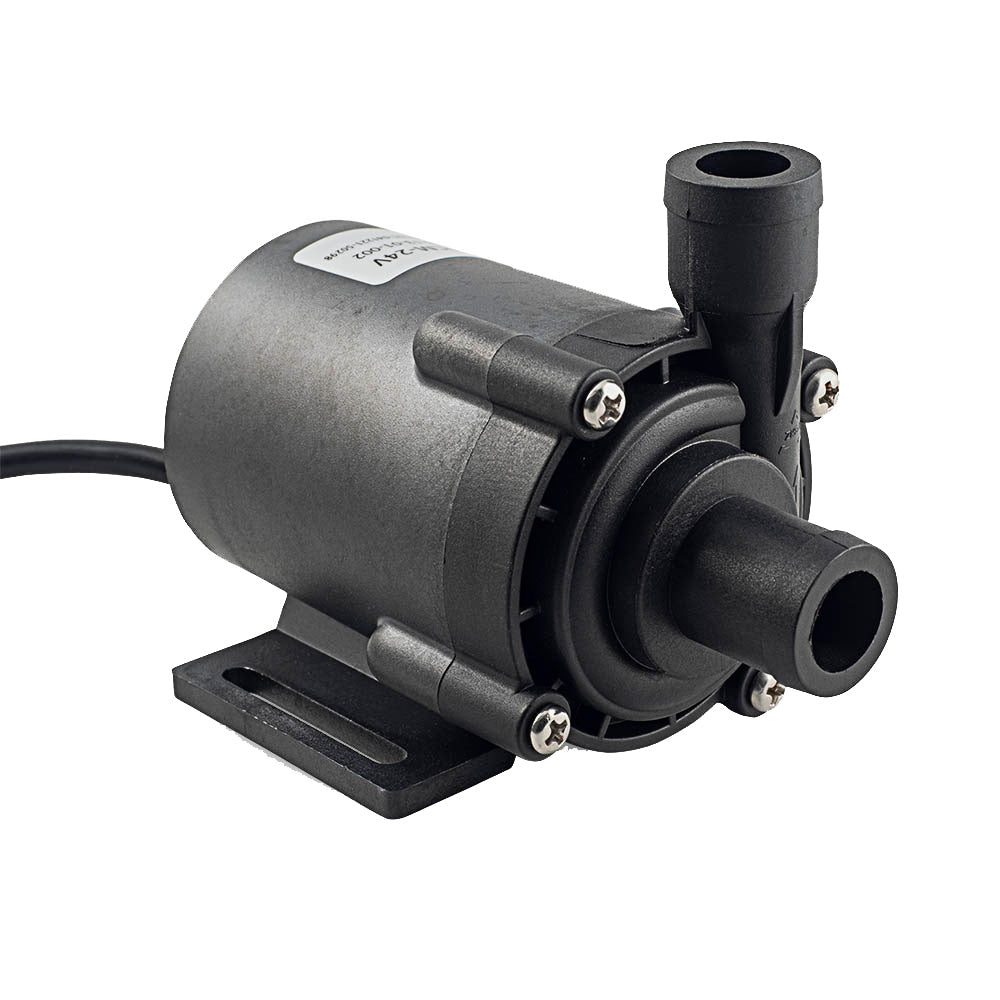

Albin Pump DC Driven Circulation Pump with Brushless Motor - BL30CM 12V - 13-01-001

Albin Pump BL30CM 12V DC Brushless Circulation Pump (13-01-001)

The Albin Pump BL30CM 12V DC Circulation Pump is a high-performance, energy-efficient solution designed for reliable fluid circulation across a wide range of applications. Built with a premium brushless motor, this pump offers superior durability, quiet operation, and extended service life—making it ideal for continuous-duty systems where reliability matters most.

Whether you're upgrading a marine cooling system, installing a solar water heating setup, or improving automotive fluid circulation, the BL30CM delivers consistent flow with minimal power consumption. Its 12V DC operation makes it perfectly suited for battery-powered, off-grid, and mobile environments such as RVs, boats, and remote installations.

Key Technology & Performance

• Brushless DC Control: The brushless motor eliminates internal friction and wear, providing an impressive 20,000-hour lifespan—significantly longer than traditional brushed models.

• Intelligent Design: Features a ceramic shaft and carbon fiber sleeve for high-wear resistance and consistent performance in demanding heating or cooling systems.

• IP68 Waterproof Rating: The motor is completely waterproof, allowing for reliable operation in wet bilge environments or exposed compartments.

• Whisper-Quiet Operation: With a 35dB noise class rating, this pump operates with minimal vibration and sound, making it ideal for use in living quarters or quiet vessel interiors.

• Temperature Resilience: Capable of handling liquid temperatures up to 80°C (176°F) for continuous duty and 100°C (212°F) for intermittent use.

Standard Package Contents

• (1) Albin Pump BL30CM 12V Brushless Circulation Pump

• (1) Integrated Mounting Bracket (Heavy-duty rubber-lined for vibration dampening)

• (1) Instruction Manual (Includes wiring diagrams and installation safety guidelines)

Key Components Breakdown

• Brushless Motor: The core unit features a high-efficiency motor with a 20,000-hour service life.

• 3/4" (20 mm) Ports: The pump head is equipped with standard barbed ports for easy connection to marine or automotive heater hoses.

• Wiring Lead: A pre-installed pigtail for connection to your 12V DC power source.

Powerful Brushless Motor Technology

At the heart of the BL30CM is an advanced brushless DC motor, designed to eliminate wear-prone components found in traditional brushed pumps. This results in:

• Longer lifespan with reduced maintenance requirements

• Higher efficiency and lower energy consumption

• Quiet, vibration-free performance

• Improved reliability for continuous operation

This makes the pump an excellent choice for systems that require 24/7 circulation without interruption.

Compact, Efficient, and Easy to Install

The compact and lightweight design of the Albin BL30CM allows for seamless integration into tight or confined spaces. Its versatile mounting options and straightforward wiring make installation quick and hassle-free.

• Ideal for space-limited installations

• Designed for easy integration into existing systems

• Lightweight construction for flexible placement

Versatile Applications

The BL30CM circulation pump is engineered to perform across multiple industries and use cases:

• Marine Systems – Engine cooling, livewell circulation, and onboard water systems

• Solar Heating Systems – Efficient water circulation in solar thermal setups

• Automotive & EV Cooling – Battery, inverter, and engine cooling applications

• Industrial Equipment – Fluid transfer and temperature regulation

• RV & Off-Grid Systems – Reliable performance in mobile and remote environments

Built for Reliability and Efficiency

Albin Pump is known for delivering high-quality pumping solutions, and the BL30CM is no exception. Designed to handle demanding conditions, this pump provides:

• Consistent flow performance under continuous use

• Low power draw, extending battery life in DC systems

• Durable construction for long-term dependability

• Reduced noise levels, ideal for sensitive environments

Why Choose the Albin BL30CM?

If you're looking for a 12V DC circulation pump that combines efficiency, durability, and quiet operation, the Albin Pump BL30CM (Part #13-01-001) is a proven solution. Its brushless motor technology and versatile design make it a top choice for professionals and DIY users alike.

Installation Tip: This pump is a direct interchangeable alternative to the Johnson Pump 10-24504-03. When installing in a heating system, ensure the pump is positioned at a low point to maintain a flooded suction and prevent air locks that could trigger thermal protection.

Upgrade your system today with the Albin BL30CM and experience reliable, maintenance-free fluid circulation built to last.

Manufacturer : Albin Pump Marine
Manufacturer Part No : 13-01-001
