Airmar TM265C-LM-12F Transom Mount Transducer w/12-Pin Connector f/Furuno TZT12F, TZT16F & TZT19F - TM265C-LM-12F

Airmar TM265C-LM-12F Transom Mount Transducer w/12-Pin Connector f/Furuno TZT12F, TZT16F & TZT19F - TM265C-LM-12F

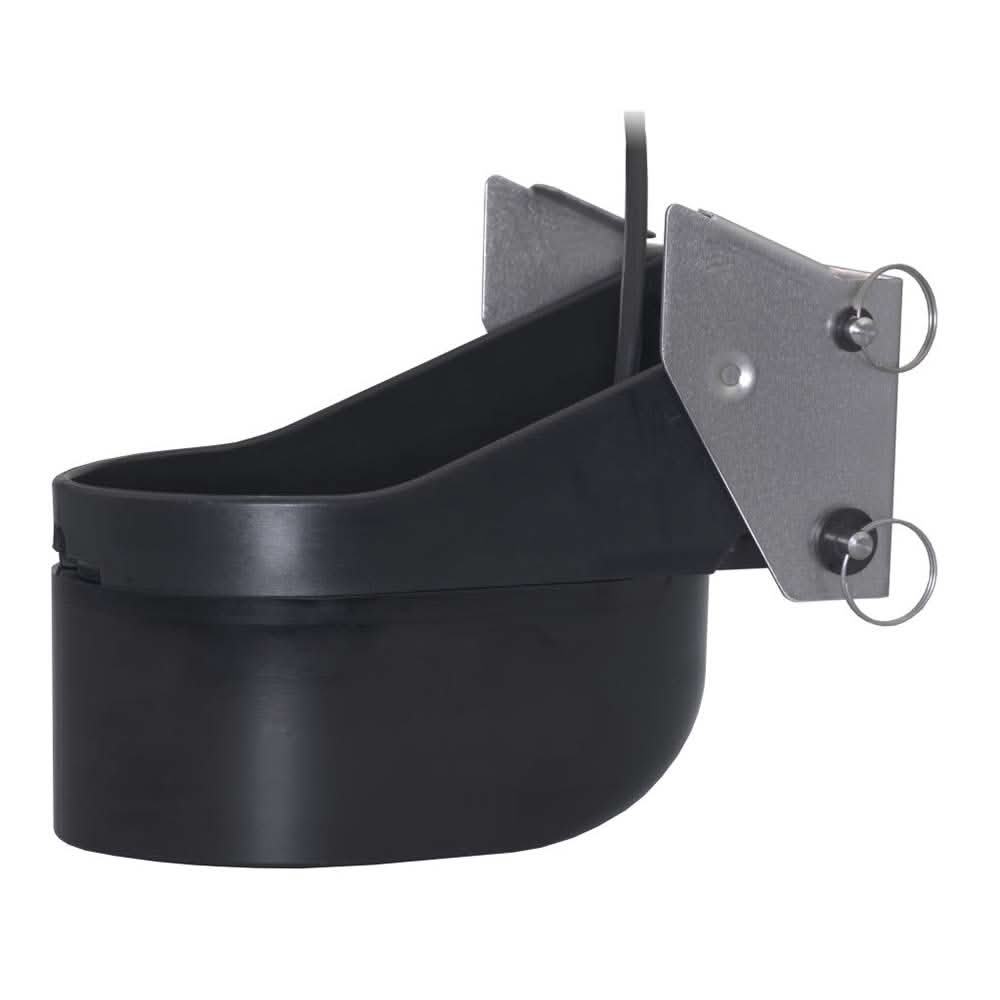

TM265C-LM-12F Transom Mount Transducer with 12-Pin Connector for Furuno TZT12F, TZT16F & TZT19F

Rely on Airmar's broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fishfinders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, CHIRP uses a precise sweep pattern of many frequencies within a long-duration transmits pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fishfinder.

Specifically designed for smaller boats (25'-40'), the TM265C-LM CHIRPS across the following bandwidths:

Low & Medium-Frequency (LM)

Low—Chirps from 42 kHz to 65 kHz, 25° to 16° beamwidth

Medium—Chirps from 85 kHz to 135 kHz, 16° to 11° beamwidth

Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency

Features:

• 8-Internal, Broadband Ceramic Elements
• Depth & fast-response water-temperature sensor
• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Operating frequencies:
• Low—Chirps from 42 kHz to 65 kHz
• Medium—Chirps from 85 kHz to 135 kHz
• Beamwidth (Adjustable):
• Low—25° to 16°
• Medium—24° to 16°
• 10 m (33’) cable
• The depth and fast-response water-temperature sensor
• 12 Pin Connector for use with Furuno TZT12F and TZT16F Displays
• Urethane transducer housing and stainless steel mounting bracket
• Boat Size: 8 m to 12 m (25’ to 40’)
• Hull Type: Fiberglass, wood, or metal
• Exclusive Transducer ID

Product : AIRMAR TM265C-LM-12F FOR FURUNO 12 PIN
Manufacturer : Airmar
Manufacturer Part No : TM265C-LM-12F
Product : AIRMAR TM265C-LM-12F FOR FURUNO 12 PIN
