Airmar R109LHW Chirp Thru-Hull Transducer - No Connector - R109C-LHW

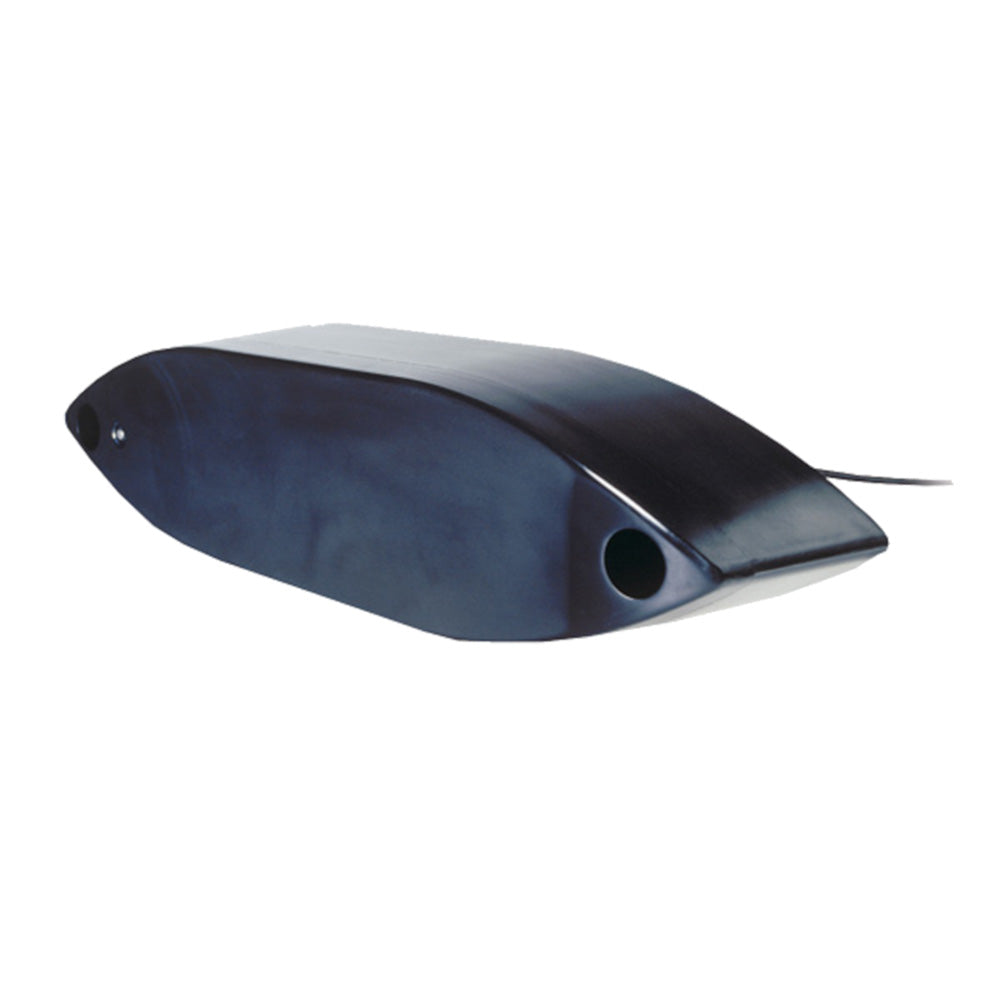

R109LHW Low High Wide Chirp Thru-Hull Transducer with Fairing Block - No Connector

Get more coverage under the boat with Airmar’s unique wide-beam, low- and high-frequency, Chirp-ready R109LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25-degree beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high-wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500'). The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Features:

• Depth and fast-response water-temperature sensing
• 2 kW of power for excellent deep-water performance from the low-frequency
• 2 kW low frequency (38 to 75 kHz): 19 to 10-degree port-starboard beamwidth; 10 to 5-degree fore-aft beamwidth
• Maximum depth of 1829 m (6000')
• 1kW high frequency (150 to 250 kHz): 25-degree constant beamwidth; Maximum depth of 152 m (500')
• 137 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing with fairing for optimal performance
• No Connector - Bare Wire
• Comes with Fairing Block
• Patented Xducer ID® technology

Specifications:

• Acoustic Window: Epoxy/urethane
• Common Use: Fishing, commercial fishing
• Functions: Depth, temperature
• High Frequency: 150-250 kHz
• High-Wide Beamwidth: 25 degrees
• Housing: Urethane
• Hull Material: Compatible with all hull materials
• Low-Frequency: 38-75 kHz
• Low-Frequency Beamwidth: 19-10 degrees
• Max Deadrise: Up to 22 degrees
• Max Deadrise Angle: 22 degrees
• Max Depth: Low frequency- 1829 m (6000'), High wide frequency- 152 m (500')
• Max Vessel LOA: 9 m (30') and above
• Mounting Style: Thru-hull
• Power Rating: 2 kW
• Retractable housing: No
• Single or Dual Frequency: CHIRP-ready dual-band
• Tilted Element: No
• Weight: 15.1 kg (33.3 lb.)
