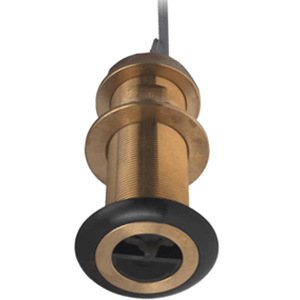

Airmar DST800L-235-N2 235kHz Bronze Thru-Hull - Long Stem - NMEA 2000 - DST800L-235-N2

DST800L-235-N2 235kHz Bronze Thru-Hull - Long Stem - NMEA 2000

The DST800 is a Smart Triducer multi-sensor that offers depth, speed, and temperature functions in one compact thru-hull fitting. Digital signal processing inside the housing provides depth, speed, and temperature data to a chart plotter, radar screen, or digital display, eliminating the need for a dedicated depth sounder.

One hole in the boat's hull makes this Triducer multi-sensor attractive to both boat builders and boat owners. And the retractable multi-sensor is available with NMEA 0183, NMEA 2000®, or custom CAN protocols. The wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled.

Features:

• Thru-Hull, Long-Stem
• Depth, Speed, and Temperature
• NMEA 2000® output , 100 W RMS power
• 235kHz output will not interfere with fishfinders
• Maximum depth range 100 m (330’)
• Minimum depth range 0.5 m (1.6’)
• Retractable Insert
• 6 m (19.8’) NMEA 2000® cable and connector
• Usable Shaft Length: 102 mm (4”)
• Can be installed with High-Performance Fairing (sold separately)
• Can be installed with Low-Profile adapter ring
