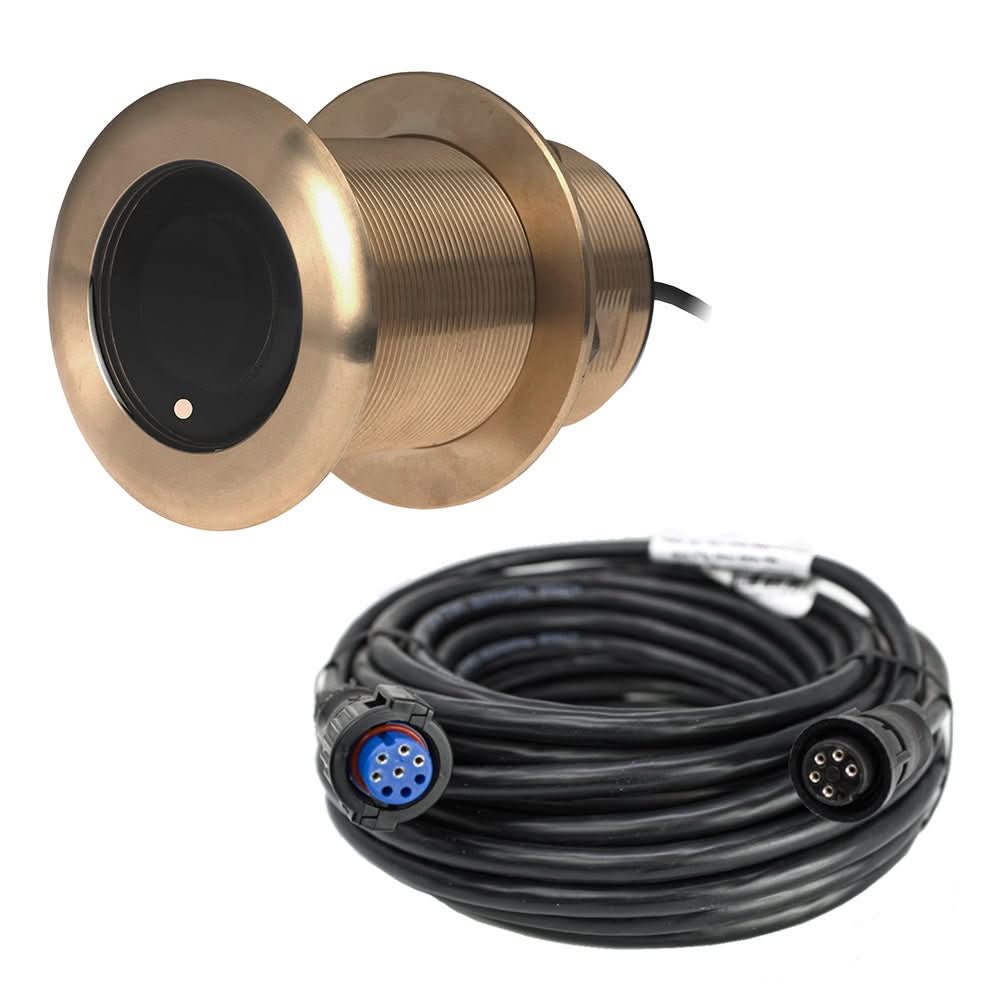

Airmar B60 20 Degree Bronze Tilted Element 600W 8-Pin Transducer for Garmin - B60-20-8G

Airmar B60 20 Degree Bronze Tilted Element 600W 8-Pin Transducer for Garmin

The Airmar B60 20 Degree Bronze Tilted Element transducer is designed for optimal performance with Garmin marine electronics. This 600-watt, dual-frequency transducer features a fixed 20-degree tilt, making it ideal for hull deadrise angles between 16 and 24 degrees. Its innovative tilted element aligns the acoustic beam directly downward, ensuring maximum echo return for precise depth readings even when installed flush with the hull. This design significantly enhances depth accuracy for center-console and trailered boats, providing reliable data across a range of vessel types.

Constructed with a durable bronze housing, the B60 transducer is suitable for fiberglass and wood hulls, with an ultra-low profile that extends only about 5 mm outside the hull surface, minimizing hydrodynamic drag and maintaining your boat's performance. The transducer’s power rating of 600 W and its dual-frequency capability—50 kHz with a 45-degree beamwidth for depths up to 1,200 feet, and 200 kHz with a 12-degree beamwidth for depths up to 700 feet—allow versatile use in various fishing and yachting applications. It provides both depth and fast-response water temperature sensing, making it a valuable tool for anglers and boaters alike.

Designed for ease of installation, the B60 features a 60 mm (2-3/8 inches) mounting hole and a usable shaft length of approximately 2.7 inches. The transducer's urethane acoustic window enhances durability and acoustic performance, ensuring consistent readings over time. Compatible with vessels up to 26 feet in length, it is ideal for leisure boating, yachting, and fishing trips, offering reliable performance across different hull materials. Its robust construction and precise tilt adjustment make it a trusted choice for serious marine enthusiasts seeking accurate fishfinding and depth measurement capabilities.

Features:

• Fixed 20-degree tilt for hull deadrise angles between 16 and 24 degrees

• Depth and fast-response water temperature sensing

• 600 W power rating for reliable performance

• Dual-frequency operation: 50 kHz with 45° beamwidth and 200 kHz with 12° beamwidth

• Maximum depth performance: 1200 ft at 50 kHz and 700 ft at 200 kHz

• Low-profile bronze housing extends only 5 mm outside the hull

• Compatible with fiberglass and wood hulls

• Suitable for vessels up to 26 feet in length

• Urethane acoustic window for durability and acoustic clarity

• Designed for easy installation with a 60 mm mounting hole

BRAND: Airmar

Manufacturer Part Number: B60-20-8G
