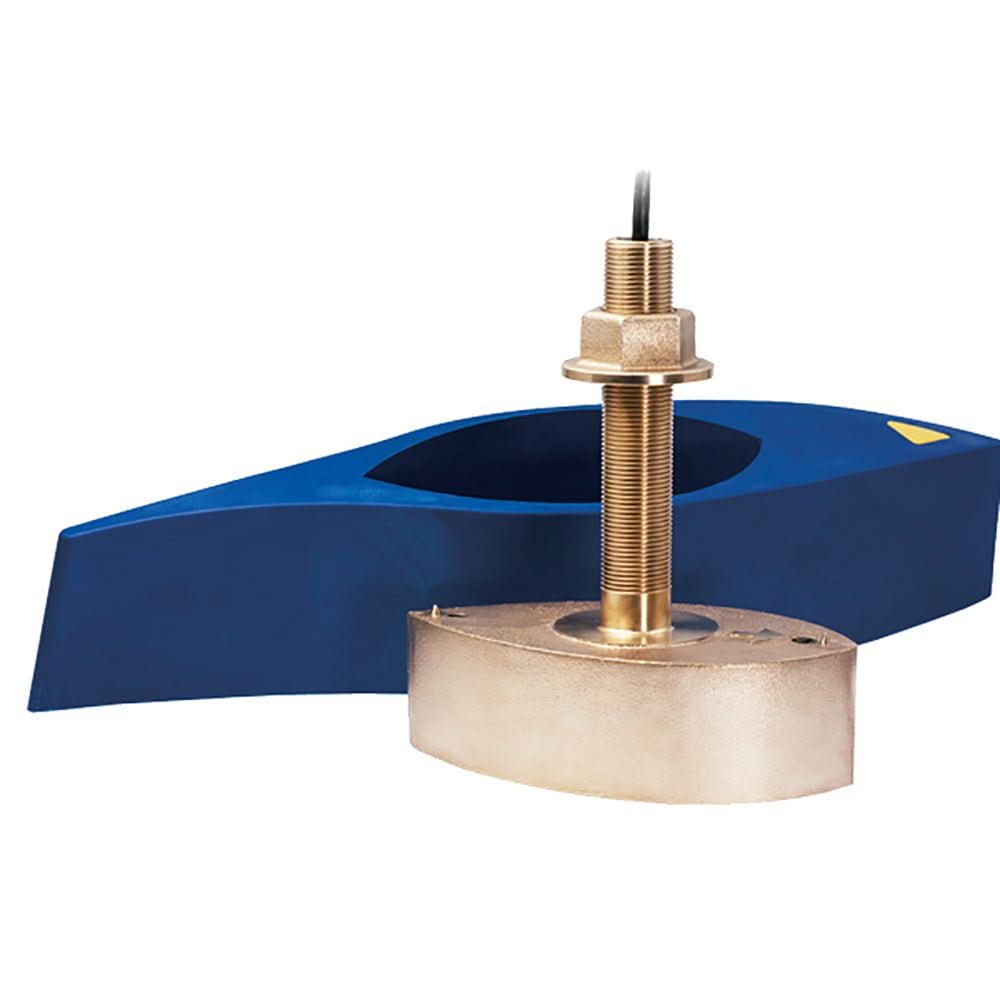

Airmar B265LH CHIRP Thru Hull Transducer with Garmin 12-Pin Connector for Deep Water Fishing - B265C-LH-12G

Airmar B265LH CHIRP Thru Hull Transducer with Garmin 12-Pin Connector for Deep Water Fishing

The Airmar B265LH CHIRP Thru Hull transducer is designed for serious anglers and professional fishermen seeking precise fish detection at various depths. This high-performance transducer features tunable broadband CHIRP technology, allowing users to select optimal frequencies for targeting specific species such as Bluefin Tuna at 60 kHz, Squid at 133 kHz, and Cod at 175 kHz. The ability to fine-tune frequencies enhances target separation, bottom discrimination, and bait detection, providing a competitive edge in both recreational and commercial fishing environments.

The transducer includes a seven-element, low-frequency array operating between 42 kHz and 65 kHz, with a wide 25-degree beam that adjusts as frequency tuning varies. Additionally, a high-frequency ceramic element operates between 130 kHz and 210 kHz with a narrow 6-degree beam, which is also adjustable for refined imaging. This dual-frequency setup covers a broad spectrum, including popular fishing bands of 50 and 200 kHz, and enables detailed sonar imaging at all depths. The included high-performance fairing ensures broadband performance at speeds exceeding 30 knots, making it ideal for fast-moving vessels.

The B265LH is housed in a durable bronze casing with urethane acoustic windows, suitable for fiberglass or wooden hulls in boats over 8 meters (about 25 feet). Its advanced Xducer ID technology simplifies installation and configuration, while the design accommodates hull deadrise up to 20 degrees with the fairing. Weighing approximately 16 pounds, this transducer is suitable for a range of vessel sizes and provides reliable, high-resolution data that can significantly improve fishing success. For detailed installation instructions and technical support, refer to the manufacturer’s manual available online.

Features:

• Depth and water-temperature sensor for real-time environmental data

• 12-pin Garmin connector for seamless integration with compatible units

• Low CHIRP frequencies from 42 kHz to 65 kHz with a 25-degree beamwidth

• High CHIRP frequencies from 130 kHz to 210 kHz with a 6-degree beamwidth

• Total bandwidth of 103 kHz, covering 50 kHz to 200 kHz frequencies

• Versatile for commercial and recreational inshore and offshore fishing, including deep-water canyon and sea-mount tracking

• Durable bronze housing with urethane acoustic window for long-term deployment

• Suitable for vessels over 8 meters (25 feet), compatible with fiberglass or wood hulls

• Advanced Xducer ID technology for easy setup

• Designed to operate effectively with hull deadrise up to 20 degrees

BRAND: Airmar

Manufacturer Part Number: B265C-LH-12G
