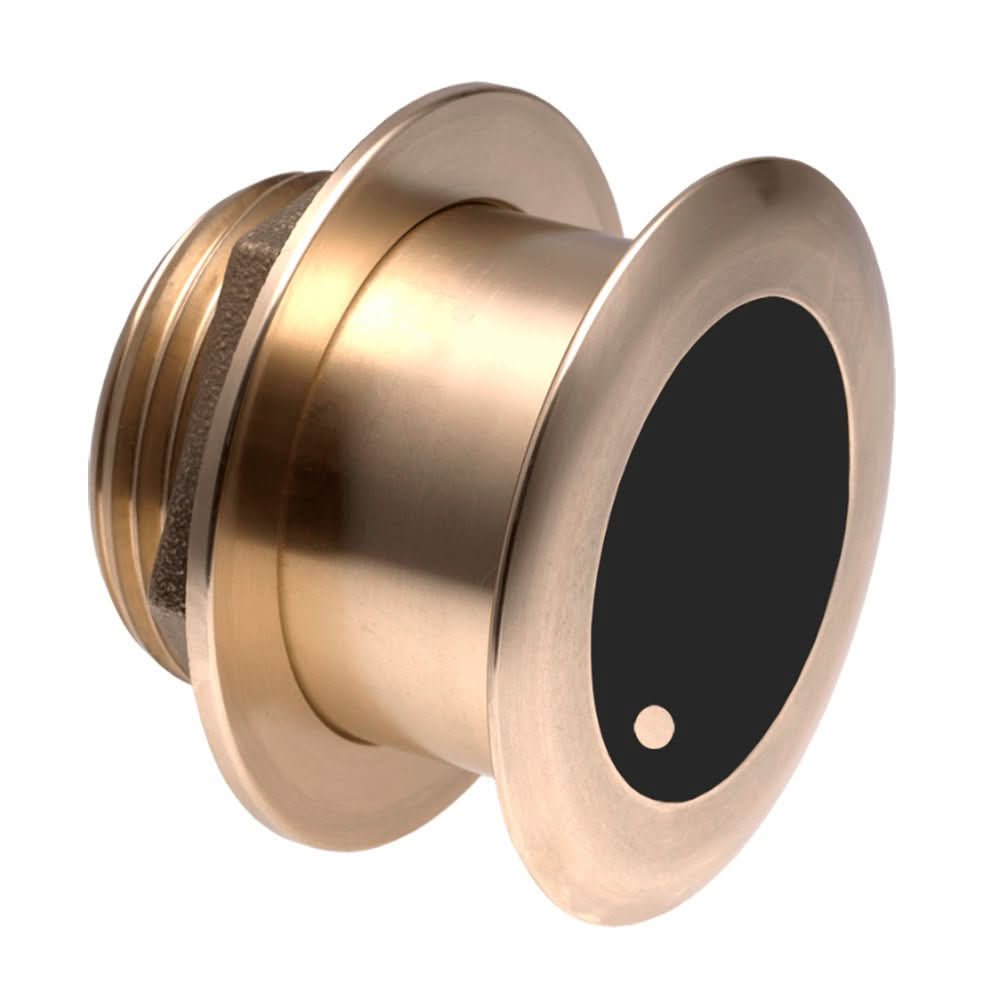

Airmar B175C-12-MW-12G Medium Ultra-Wide 1kW Thru-Hull Transducer for Garmin - B175C-12-MW-12G

Airmar B175C-12-MW-12G Medium Ultra-Wide 1kW Thru-Hull Transducer for Garmin

The Airmar B175C-12-MW-12G is a high-performance medium frequency (60-100 kHz) thru-hull transducer designed for anglers targeting pelagic species and deepwater fishing. Featuring a 1 kW power output, it provides reliable depth tracking up to 400 meters (1,300 feet) and offers an ultra-wide beamwidth ranging from 57 to 73 degrees port-starboard, with an average fore-aft coverage of 16 degrees. This broad coverage allows for exceptional sonar imaging, making it ideal for scanning large water areas and locating fish at mid-depths. Its advanced design ensures excellent target separation and superior image clarity, especially useful in challenging fishing environments. The transducer's ceramic element is fixed at a 20-degree tilt to compensate for hull deadrise and optimize signal orientation, ensuring maximum echo return even when installed almost flush to the hull. The bronze housing ensures durability and compatibility with various hull types, including stepped, planing, or displacement hulls. Equipped with a water-temperature sensor, the B175MW provides real-time temperature data critical for understanding fish behavior and environmental conditions. Its compact, low-profile housing allows for streamlined installation without compromising performance, while exclusive Xducer ID technology simplifies setup and ensures optimal operation. Whether used alone or with other Airmar models like the B275LHW, this transducer offers versatile and reliable performance for serious anglers seeking high-quality sonar data for deep and pelagic fishing pursuits.

Features:

• Depth and fast-response water-temperature sensor

• 1 kW power output with depth tracking down to 400 meters (1,300 feet)

• Medium frequency range of 60-100 kHz for versatile performance

• Ultra-wide beamwidth from 57 to 73 degrees port-starboard

• 16-degree average fore-aft beam coverage

• 40 kHz total bandwidth from a single transducer

• Superior mid-depth performance with excellent fish-target separation

• Bronze housing suitable for various hull types including stepped, planing, or displacement hulls

• Low-profile thru-hull design ensures good resolution at speed when installed properly

• Exclusive Xducer ID technology for simplified setup and reliable operation

BRAND: Airmar

Manufacturer Part Number: B175C-12-MW-12G
