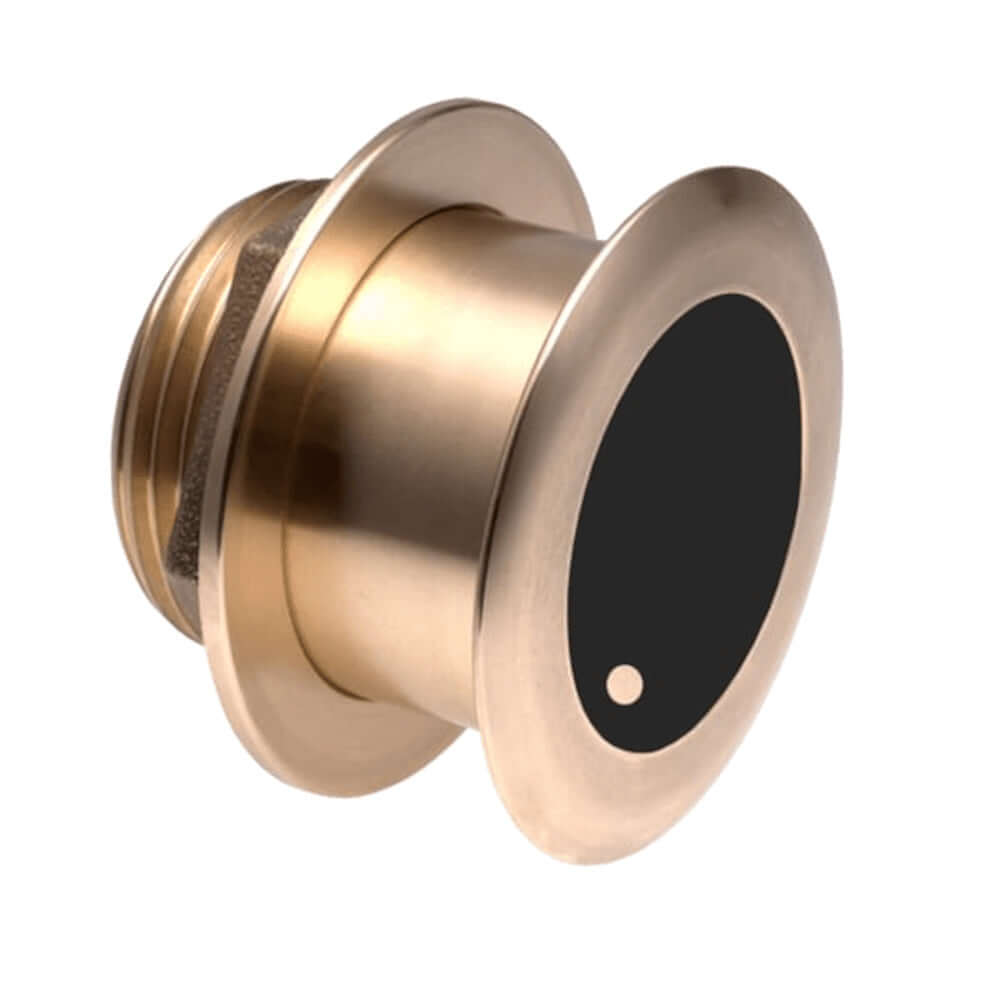

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix & Match Cable - B164-12-MM
Couldn't load pickup availability
B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable
12 tilted version for 8 to 15 hull deadrise angles. Step up to a 1 kWwithout a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4) below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22 beamwidth for depth performance to 549 m (1800)
- 200 kHz with a 6 beamwidth for depth performance to 244 m (800)
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25) below the hull
- No effect on the boats running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID technology
Specifications:
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5)
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 22x20/6
- Country of Origin: USA
- Deadrise Range: 8 to 15
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 15
- Max Depth: Low frequency- 549 m (1800), High frequency- 244 m (800)
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 12
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs)
- Power Rating: 1 kW
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36)
- Hole Size: 95 mm (3-3/4)
- Usable Shaft Length: 71 mm (2.80)
- Display Connector: Cable Required
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix & Match Cable
B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable
12 tilted version for 8 to 15 hull deadrise angles. Step up to a 1 kWwithout a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4) below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22 beamwidth for depth performance to 549 m (1800)
- 200 kHz with a 6 beamwidth for depth performance to 244 m (800)
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25) below the hull
- No effect on the boats running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID technology
Specifications:
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5)
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 22x20/6
- Country of Origin: USA
- Deadrise Range: 8 to 15
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 15
- Max Depth: Low frequency- 549 m (1800), High frequency- 244 m (800)
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 12
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs)
- Power Rating: 1 kW
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36)
- Hole Size: 95 mm (3-3/4)
- Usable Shaft Length: 71 mm (2.80)
- Display Connector: Cable Required
BRAND: Airmar
Manufacturer Part Number: B164-12-MM
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix & Match Cable - B164-12-MM is backordered and will ship as soon as it is back in stock.
