Airmar B164 1kW 20 Degree Tilted Element Transducer for Garmin - B164-20-8G

Airmar B164 1kW 20 Degree Tilted Element Transducer for Garmin

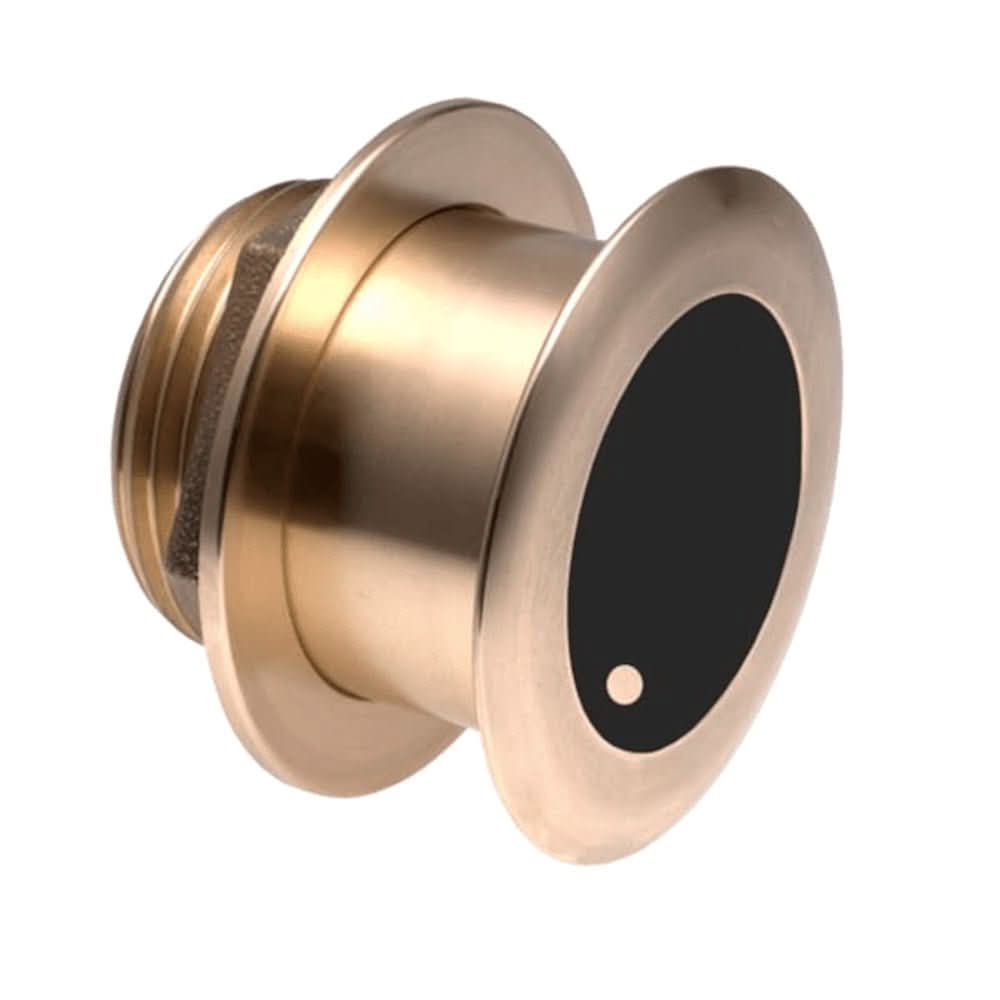

The Airmar B164 1kW 20 Degree Tilted Element transducer is designed for fast, trailered vessels that require high-performance sonar capabilities without a fairing. Its flush-mount bronze housing extends less than 1/4 inch below the hull, making it ideal for trailers and boats with limited clearance. The internally tilted ceramic arrays ensure a vertical beam that maximizes energy directly beneath your vessel, providing precise depth and water temperature readings. This transducer is engineered to deliver reliable performance for vessels up to 36 feet with a maximum deadrise angle of 24 degrees, suitable for both fiberglass and wooden hulls.

Features:

• Fixed 20-degree tilt optimized for hull deadrise angles from 16 to 24 degrees

• Depth and fast-response water-temperature sensing for accurate readings

• Power output of 1 kW for enhanced sonar performance

• Dual-frequency elements: 50 kHz with a 22-degree beamwidth for depth performance up to 1,800 feet (529 meters), and 200 kHz with a 6-degree beamwidth for depth performance up to 800 feet (235 meters)

• Compatible with any 600 W or 1 kW echo sounder systems

• Engineered for center-console and trailerable boats with minimal hull intrusion

• Low-profile bronze housing extends less than 1/4 inch below the hull surface

• Designed to not impact vessel handling or speed

• Available in stainless steel housing (SS164) for use with all hull materials

• s patented Xducer ID technology for easy identification and setup

BRAND: Airmar

Manufacturer Part Number: B164-20-8G
