Aigean MAP7 Marine Wireless Access Point - AN-MAP7

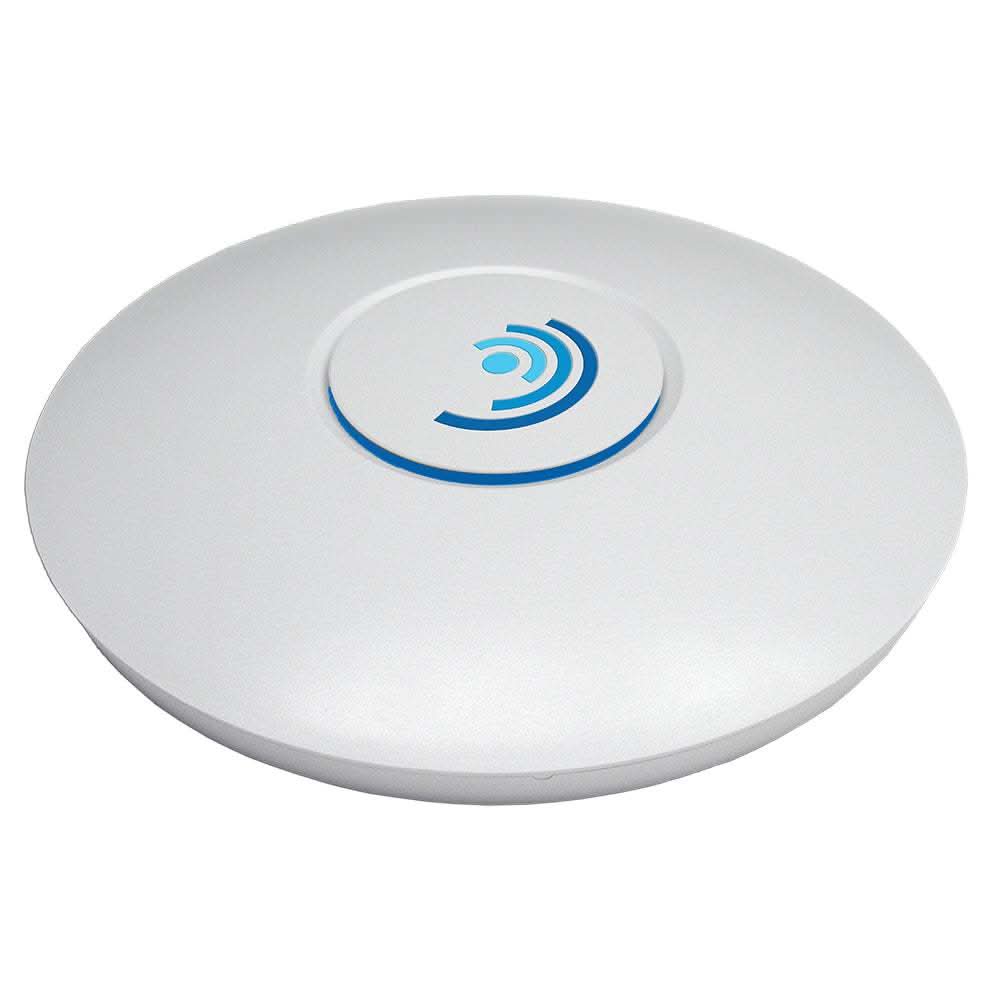

MAP7 Dual Band Marine Access Point

Aigean has developed specialized wireless access points called Marine Access Points(MAP) for providing high-performance local wireless networks onboard. MAP's allow for redistribution of the vessel's Internet connection for tablets, phones, and computers to connect form anywhere on or int he vicinity of the vessell. Install a single MAP on smaller vessels, and multiples on larger vessels (usually over 40' LOA).

Quickly and easily connect to your existing network to add or expand wireless coverage. When paired with an Aigean Networks Wi-Fi Client or Router, you can manage any connected access points directly through their interfaces.

Technical Specifications:

• Processor Specs Atheros MIPS 74Kc, 550MHz
• Memory Information 128MB SDRAM, 16MB Flash
• Networking Interface 2 x 10/100/1000 BASE-TX (Cat 5, RJ-45) Gigabit Ethernet
• Powerful 2.4 GHz and 5 GHz (802.11abgn)

Physical/Electrical/Environmental

• RF Connector None - Internal Antennas
• Enclosure Size 11.9" x 9.3" x 1.5" (300mm x 266mm x 36.7mm)
• Weight 0.64 lbs, 0.95 lbs with Mounting Kits (0.29 kg, 0.43 kg)
• Enclosure Characteristics Plastic saucer-style enclosure
• Power Method Passive Power over Ethernet (48V), 802.3af Supported
• Operating Temperature 14xF to 158xF (-10xC to 70xC)
• Operating Humidity 5 to 80% Noncondensing
• Shock and Vibration ETSI300-019-1.4
• Environment Resistance IP60 (NEMA 1)
• Mounting bracket
• 110-220V AC PoE injector included
• 2 Year Limited Warranty
