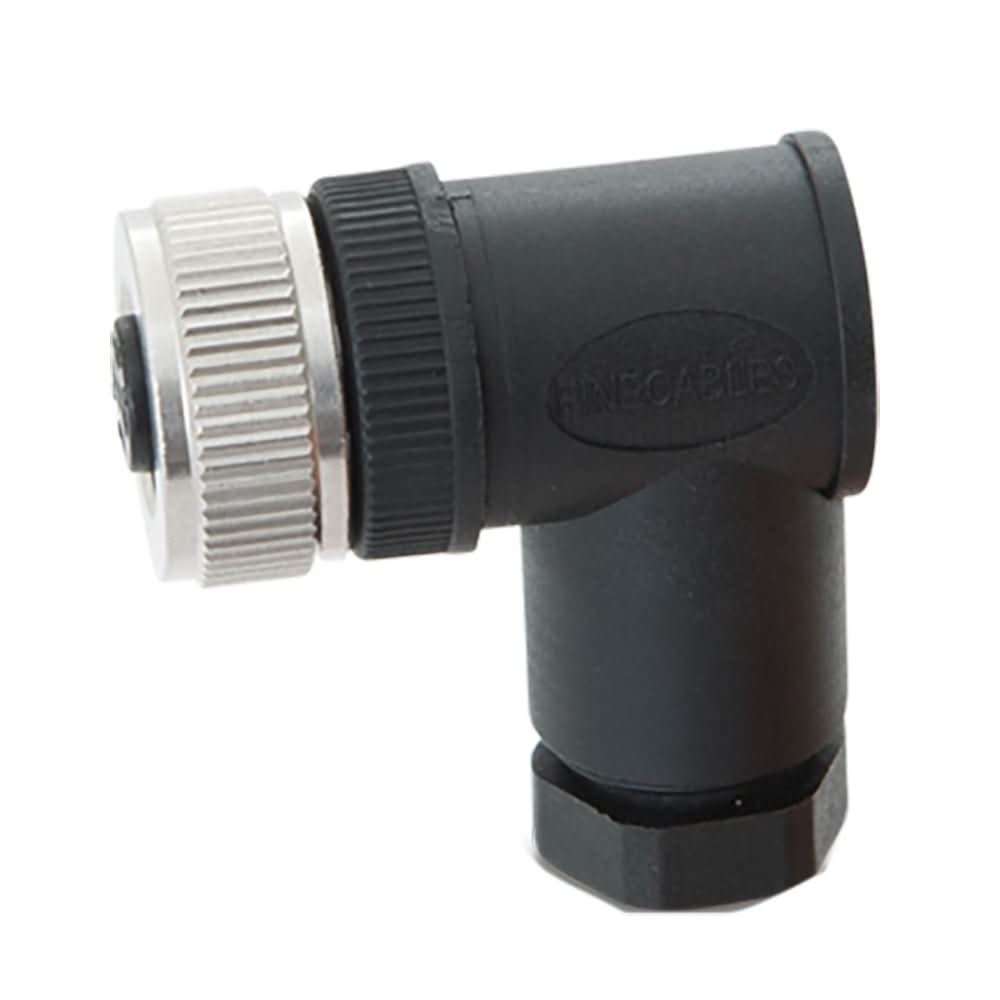

Actisense NMEA2000 Right Angle Micro Field Fit Connector - Female (Part Number: A2K-FFC-RF)

The Actisense NMEA2000 Right Angle Micro Field Fit Connector - Female is designed for flexible and reliable marine network installations. This connector allows full customization of your NMEA 2000 cabling by enabling you to cut cables to any length, reducing excess and simplifying routing in tight spaces. Its right-angle design facilitates easy installation around obstacles and at awkward entry points, making it ideal for complex marine setups. The connector's glands tighten securely around Lite cables when screwed together, ensuring a watertight seal that maintains optimal performance in harsh marine environments. Constructed with high-quality materials, it is suitable for demanding conditions with protection rating IP67, guaranteeing resistance to water and dust ingress. The brass, gold-plated contacts provide excellent electrical conductivity, rated at 4A current and 60VDC voltage, supporting robust data transfer and power delivery. The connector features a sealed rubber O-ring and a PG9 sealing gland for cables up to 8mm, ensuring the integrity of your network against moisture and contaminants. Designed with a durable PA+GF (black) body and TPU insert, this connector offers both strength and flexibility for marine applications. Certified for marine environments, it withstands temperatures from -25°C to +90°C, making it suitable for a wide range of operating conditions. Whether you are customizing an existing NMEA 2000 network or planning a new installation, the Actisense Field Fit Connector provides the flexibility, durability, and secure connection needed for reliable marine electronics connectivity. Refer to the manufacturer’s manual for detailed installation instructions and additional technical information.

Features:

• Right-angle design for easy installation in tight spaces

• Secure watertight seal with internal glands and O-ring

• Compatible with Lite cables, customizable length

• Brass, gold-plated contacts for optimal electrical conductivity

• Rated for 4A current and 60VDC voltage

• IP67 protection rating for water and dust resistance

• Sealed with rubber O-ring and PG9 gland for up to 8mm cable

• Durable PA+GF black body with TPU insert for strength and flexibility

• Operates reliably within temperature range of -25°C to +90°C

• Suitable for demanding marine environments

BRAND: Actisense

Manufacturer Part Number: A2K-FFC-RF
