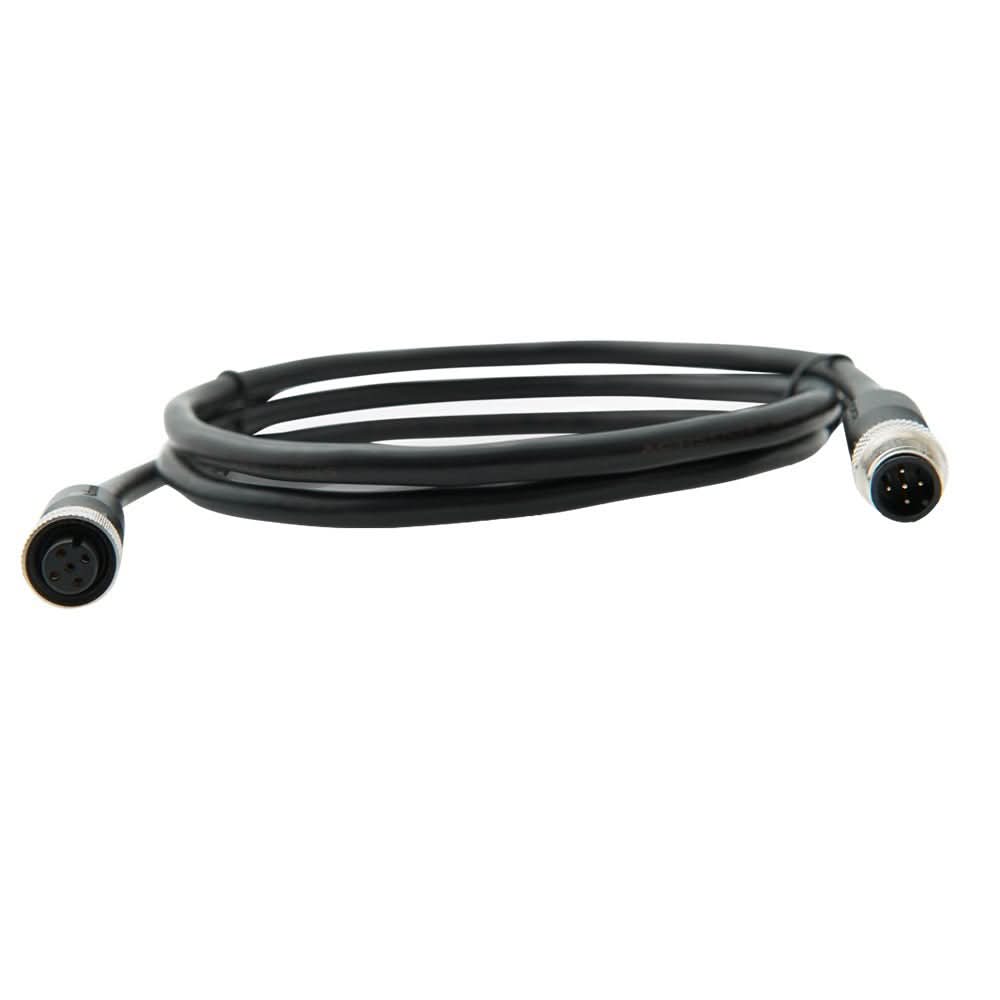

Actisense A2K-TDC-4M NMEA 2000 Micro Cable Assembly – 4M Length for Marine Data Networking

The Actisense A2K-TDC-4M NMEA 2000 Micro Cable Assembly provides a reliable solution for extending or creating a backbone network in marine electronic systems. Designed with quality assurance, this 4-meter cable features UL-certified construction and a waterproof design, making it suitable for demanding marine environments. Its five-wire configuration includes power, ground, two data lines, and a drain wire, all protected within a durable PVC jacket to minimize Radio Frequency Interference (RFI) and ensure signal integrity. The cable's construction supports a maximum backbone length of up to 100 meters, with the option to extend using mini cables for longer configurations, while keeping drop cables within 6 meters to maintain optimal network performance. The lightweight design and IP67 protection rating when mated make it suitable for outdoor and wet conditions. The Actisense range, known for its interconnect expertise, ensures compatibility and ease of installation for marine and industrial applications. This assembly features brass, gold-plated male contacts and phosphor bronze, gold-plated female contacts, ensuring robust connections. The cable is rated for a maximum current of 3A and voltage of 60VDC, with a strain-relief design that guarantees durability over time. Ideal for marine electronics, navigation systems, and data networks, the A2K-TDC-4M offers a trusted and efficient connection solution that simplifies installation and maintains signal quality in challenging environments. For additional details, consult the owner’s manual linked here: Actisense A2K-TDC-4M Owner's Manual.

Features:

• Rated Current: 3A for reliable power transmission

• Rated Voltage: 60VDC suitable for marine electronic systems

• Weatherproof Design: IP67 rating when mated for outdoor durability

• Connector Material: Brass, gold-plated male contacts for corrosion resistance

• Female Contacts: Phosphor bronze, gold-plated for secure connections

• Housing: Black PVC material for rugged protection

• Cable Construction: Five wires inside waterproof PVC jacket including power, ground, data, and drain wires

• Shielding: Braid and drain wire protect signals from RFI and reduce emissions

• Maximum Backbone Length: Supports up to 100 meters with appropriate extensions

• Drop Cable Length: Limited to 6 meters to ensure network integrity

• Temperature Range: Operates from -20°C to +70°C, storage from -40°C to +85°C

• Protection: IP67 when mated for outdoor and wet conditions

• Cable Diameter: Approximately 0.254 inches for easy routing

BRAND: Actisense

Manufacturer Part Number: A2K-TDC-4M
