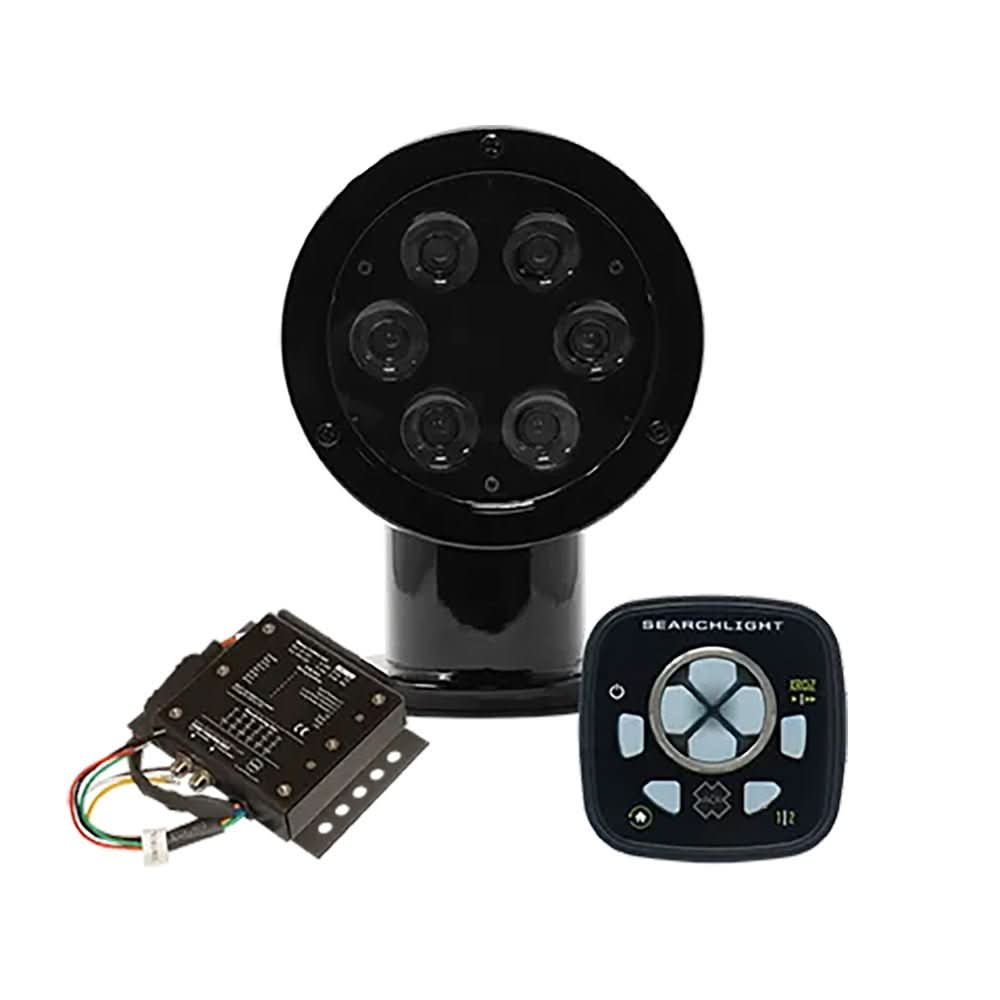

ACR Electronics RCL-50 LED Black Searchlight with URP-103 Wired Point Pad and URC-104 Master Controller - 1983

ACR Electronics RCL-50 LED Black Searchlight with URP-103 Wired Point Pad & URC-104 Master Controller (1983)

The ACR RCL-50 LED Searchlight delivers powerful, reliable illumination for marine navigation, docking, and nighttime operations. Featuring a high-output LED array producing over 100,000 peak candela, this compact searchlight provides a focused spot beam for long-range visibility while using significantly less power than traditional halogen models.

Built with a rugged marine-grade die-cast aluminum housing and finished in black, the RCL-50 is designed to withstand harsh saltwater environments. It offers 360-degree continuous rotation and ±20-degree tilt for precise beam control. The included URP-103 wired point pad and URC-104 master controller provide smooth, responsive operation from the helm, allowing easy adjustment of direction and elevation.

Designed for 12-volt DC systems, the RCL-50 LED Searchlight also features ACR’s XRCiZ™ technology, which periodically rotates the light to help prevent corrosion and keep internal components functioning smoothly. Ideal for boats, yachts, and commercial vessels, the ACR RCL-50 combines durability, efficiency, and dependable performance in a compact marine searchlight solution.

Features:

• Ultra-bright, 6 LED array providing over 100,000 candela for powerful illumination

• Rugged marine-grade aluminum housing with triple-primed sealed finish for durability

• Exclusive XRCiZ feature rotates and moves the light assembly every 30 days to prevent corrosion and maintain electrical contacts

• Supports up to 3 controllers for flexible remote operation

• Simple installation suitable for various vessel types

• Remote-controlled operation with 360-degree rotation and 40-degree tilt

• Energy-efficient LEDs reduce power consumption by up to 50% on 12V systems

• Includes modern URP-103 wired Point Pad for stylish, seamless dashboard integration

• Discreet URC-104 Master Controller for centralized management and compatibility with remote controls

🔦 Light & Optics

• LED Array: 6 × high-output LEDs producing over 100,000 peak candela illumination — bright and efficient for marine navigation.

• Beam Spread: ~10° spot beam for focused long-distance visibility.

• LED Lifespan: ~40,000 operating hours typical.

⚙️ Movement & Control

• Rotation: 360° continuous rotation with no hard stops.

• Elevation / Tilt: ±20° up/down tilt for precise aiming of the beam.

• Motor Speeds: Two-speed motor (fast and slow) for customizable control.

• Controller Kit Included:

  • URC-104 Master Controller – dash-mounted hub behind the panel.

  • URP-103 Wired Point Pad – joystick-style control pad for fingertip operation.

📦 Housing & Build

• Material: Rugged marine-grade die-cast aluminum (518) with triple-prime and sealed finish to endure harsh saltwater environments.

• Color: Black housing for sleek appearance.

• Dimensions: Approx. 8.4″ H × 6″ W × 8″ D (21.3 × 15.2 × 20 cm).

• Footprint Diameter: ~4.75″ (120.7 mm).

• Weight: ~7.72 lb (3.5 kg).

⚡ Electrical & Power

• Voltage: Designed for 12 VDC vessels (typical 12V marine systems).

• Power Consumption: LED technology reduces draw by ~50% compared to halogen.

• Exclusive XRCiZ™ Feature: Automatic periodic rotation to prevent corrosion and keep bearings/mobile contacts free and functional over time.
