TACO Marine Command Ratchet Hinge - 18-1/2 Inch Polished Stainless Steel with Hard Stop - H25-0048

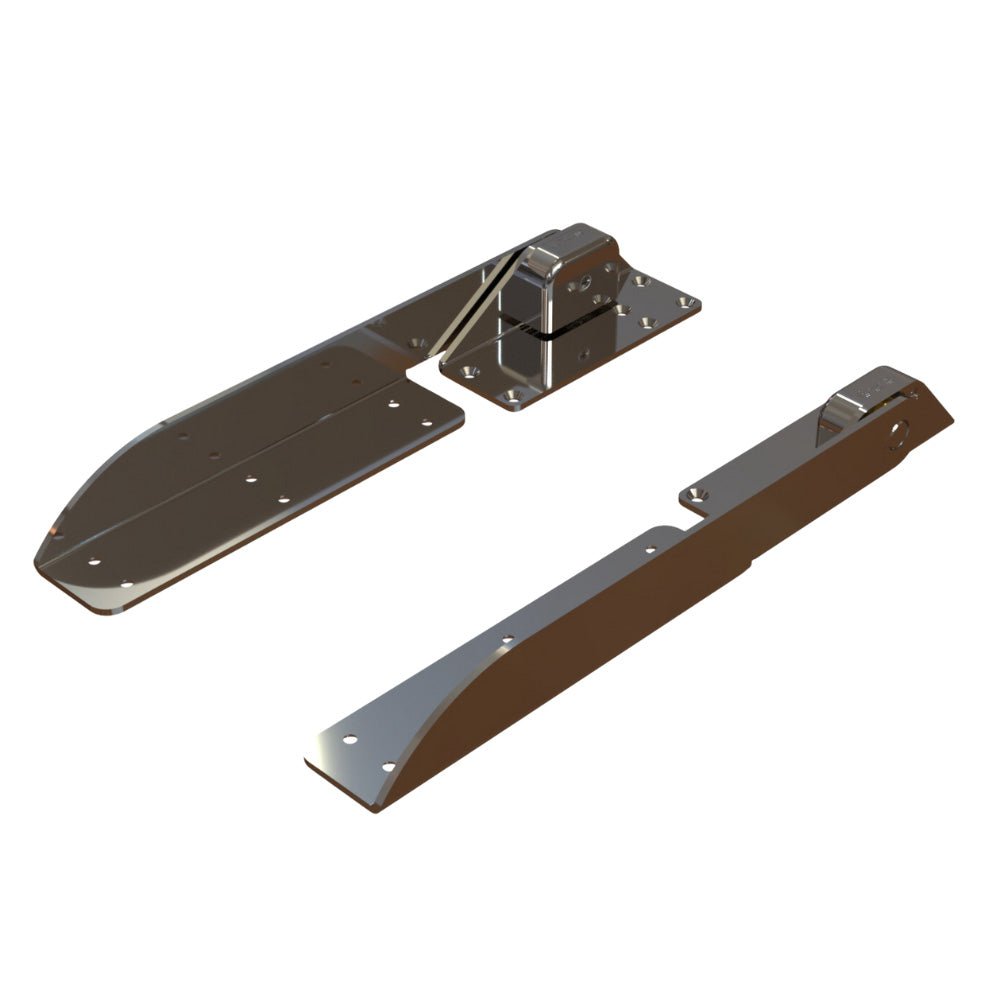

TACO Marine Command Ratchet Hinge - 18-1/2 Inch Polished Stainless Steel with Hard Stop

The TACO Marine Command Ratchet Hinge, part number H25-0048, offers a robust solution for boat seat backs, sun pads, and lounge backrests. Crafted from polished Type-316 stainless steel, this 18-1/2-inch hinge combines durability with a sleek appearance, ensuring longevity even in harsh marine environments. Its design features a hard stop at 105 degrees and a locking position at 62.5 degrees, providing secure positioning for various seating configurations. Suitable for seat backs up to 22 inches long and cushions up to 4 inches thick, it mounts above the deck for streamlined installation and optimal functionality. This hinge is ideal for applications requiring single- or double-seat capacity and meets ABYC H-31 standards for Class B applications, with a torque load capacity of 500 ft-lb for a pair. The hinge has undergone rigorous testing, including a 500-hour salt fog test, confirming its resistance to corrosion and environmental wear. Sold in pairs, the TACO Command Ratchet Hinge is backed by a 5-year limited warranty, offering peace of mind for marine professionals and boat owners alike. Its precise engineering ensures smooth operation and reliable performance over years of use, making it a dependable choice for custom marine seating projects.

Features:

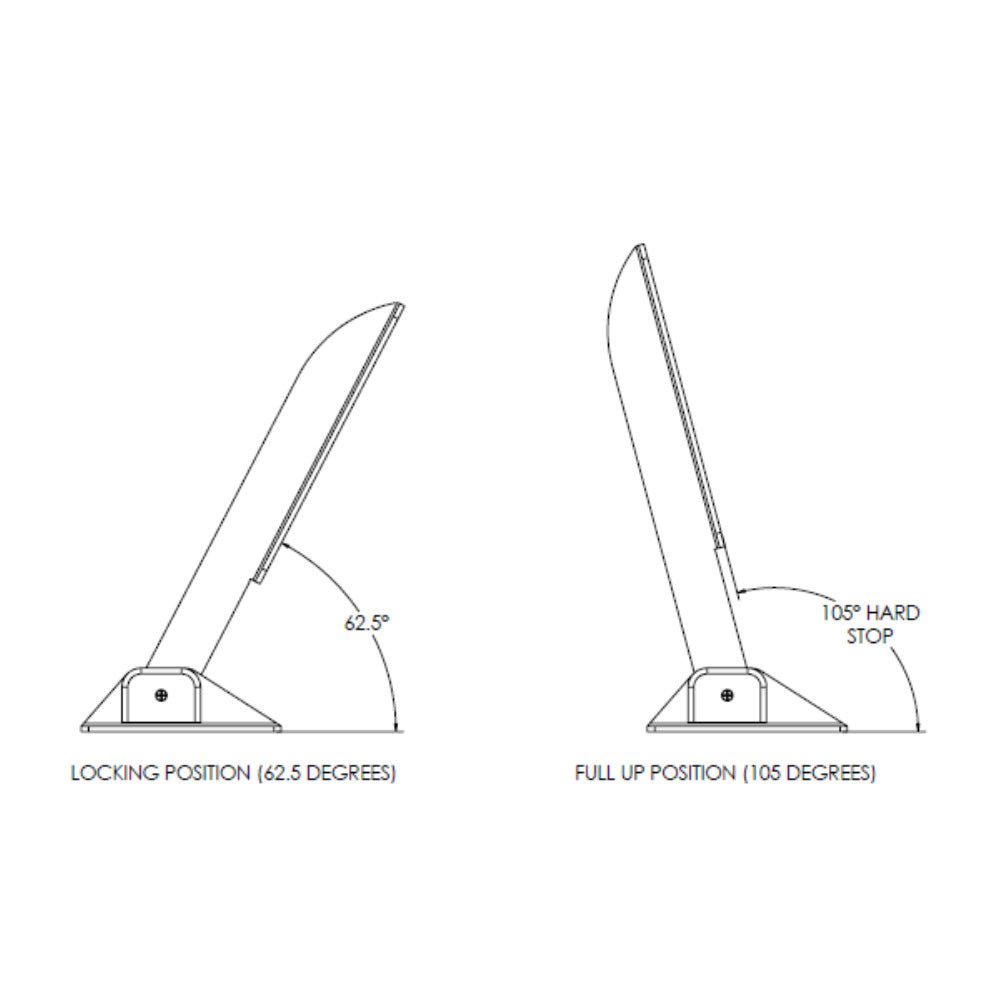

• Hard stop at 105 degrees for secure positioning

• Locking position at 62.5 degrees for added stability

• Polished Type-316 stainless steel construction for corrosion resistance

• Suitable for seat backs up to 22 inches long and cushions up to 4 inches thick

• Mounts above the deck for streamlined installation

• Meets ABYC H-31 standards for Class B applications with 500 ft-lb torque capacity

• Tested with a 500-hour salt fog test for durability in marine environments

• Sold in pairs for versatile installation options

• Durable design supporting single- or double-seat configurations

• Backed by a 5-year limited warranty for reliability

BRAND: TACO Marine

Manufacturer Part Number: H25-0048
