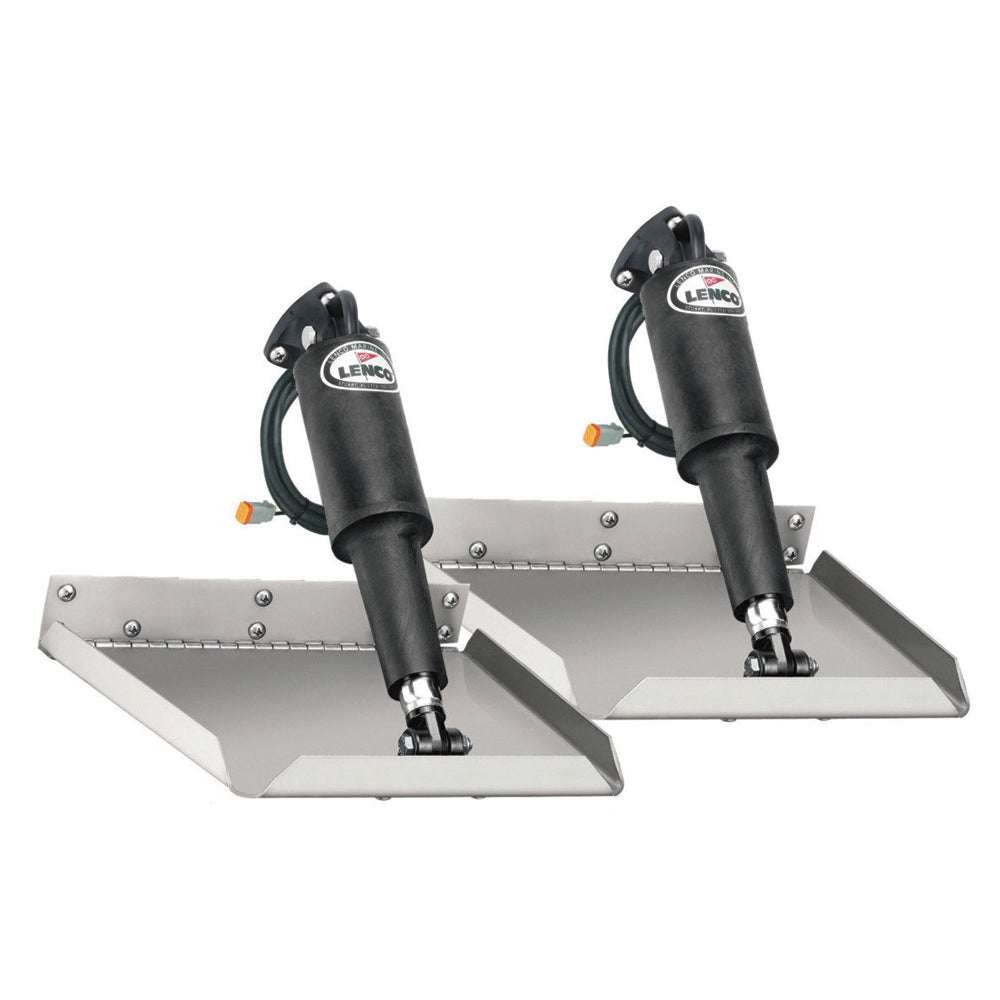

Lenco 9" x 12" Edge Mount Trim Tab Kit without Switch - 15014-101

Maintenance-Free Electric Precision

Lenco’s all-electric design has set the industry standard by eliminating the maintenance and environmental risks of hydraulic systems.

• Instant Feedback: The included 12V 101 Standard Actuators provide immediate stern lift. Unlike hydraulic systems that suffer from lag, electric tabs allow for micro-adjustments in real-time.

• Oil-Free Reliability: No hydraulic pumps to mount, no hoses to run, and zero risk of messy oil leaks in your bilge or the water.

• Submersible Durability: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals, specifically designed to be 100% waterproof and submersible.

Premium Marine Grade Materials

• Heavy-Duty Construction: The 9" x 12" blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum structural integrity and lift.

• Custom Flexibility: Because this is a "Without Switch" kit, it provides the freedom to select your preferred control interface, whether it's a Lenco LED Indicator Switch, a Tactile Switch, or a digital switching system.

• Plug-and-Play Wiring: Features waterproof Deutsch connectors for a secure, corrosion-resistant electrical connection.

Technical Specifications

Key Features

• Edge Mount Design: The primary advantage of this kit is its footprint. Because the actuator connects to the back edge of the tab, it fits into tight spaces where a standard vertical mount would interfere with the boat's structure.

• Instant Response: Lenco’s electric ball-screw design is three times more powerful than hydraulic systems and provides immediate, precise movement without the drift associated with oil-based cylinders.

• Fuel Efficiency & Safety: Properly trimmed tabs help the boat get on plane faster, improve visibility over the bow, and increase fuel economy by reducing engine labor and hull drag.

• Submersible & Maintenance-Free: The actuators are factory-sealed, waterproof, and feature plug-and-play Deutsch connectors, eliminating the need for hydraulic pumps or messy fluids.

Kit Contents

• (2) 12-Gauge Stainless Steel Trim Tab Blades

• (2) 15054-001 Actuators (12V) with 6' leads

• (2) 20' Actuator Extension Wiring Harnesses

• (2) 15085-001 Upper Mounting Brackets with Gland Seals

• (2) 50014-001 Lower Mounting Brackets

• Stainless Steel Mounting Hardware and Installation Manual

Important Considerations

[!WARNING]

Switch Required: This is a hardware-only kit.11 To operate the tabs, you must purchase a Lenco Switch Kit. Most users choose either the Standard Tactile Switch or the LED Indicator Switch for real-time position feedback.

Pro-Tip:

"The 9" x 12" Edgemount is the best-selling solution for boats with full-width swim platforms. If your transom height is less than 14 inches from the waterline to the top of the transom, the Edgemount design is often the only way to fit a high-performance 101 actuator onto your boat."
